Power Window Switch Continuity Test (Driver-Side Switch)

Remove switch from door trim panel. Disconnect power window switch harness connector. Using an ohmmeter, check continuity between specified switch terminals with switch in specified position. See DRIVER-SIDE SWITCH TESTING .

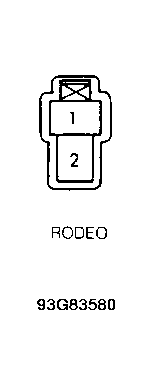

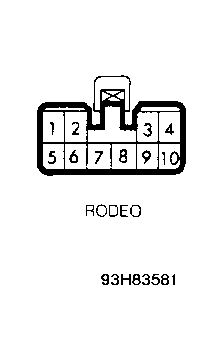

Continuity is checked between 2-terminal connector and 10-terminal connector. Use illustration for switch terminal identification. SeeFigure and Figure . If continuity is not as specified, replace appropriate switch.

DRIVER-SIDE SWITCH TESTING

Switch Position

⁽¹⁾ Check Continuity Between Terminals:

Left Front

DOWN

1 & 6; 2 & 5

OFF

2 & 5; 2 & 6

1 & 5; 2 & 6

Right Front

DOWN

1 & 2; 2 & 1

OFF

2 & 1; 2 & 2

1 & 1; 2 & 2

Left Rear

DOWN

1 & 3; 2 & 4

OFF

2 & 3; 2 & 4

1 & 4; 2 & 3

Right Rear

DOWN

1 & 9; 2 & 10

OFF

2 & 9; 2 & 10

1 & 10; 2 & 9

Lock

OFF (Unlock)

1 & 7

ON (Lock)

N/A

⁽¹⁾	First number is 2-terminal connector. Second number is 10-terminal connector. SeeFigure and Figure .
