Ignition Coil

  1. Ensure ignition is off. Disconnect ignition coil wiring. Measure primary resistance between terminals "C" and "E". See Fig 1 . Measure secondary resistance between terminals "C" and "D". Measure insulation resistance between terminals "C" and body ground.
  2. Ensure resistance is within specification. See IGNITION COIL RESISTANCE (NON-HEI SYSTEMS)  table. Replace coil if resistance is not within specification.
    IGNITION COIL RESISTANCE (NON-HEI SYSTEMS)

    Application (1) Primary Ohms @ 68°F (20°C) Secondary Ohms @ 68°F (20°C)
    Rodeo - 2.6L .81-.99 7500-11,300
    (1) Insulation resistance should not be more than 10 megohms.

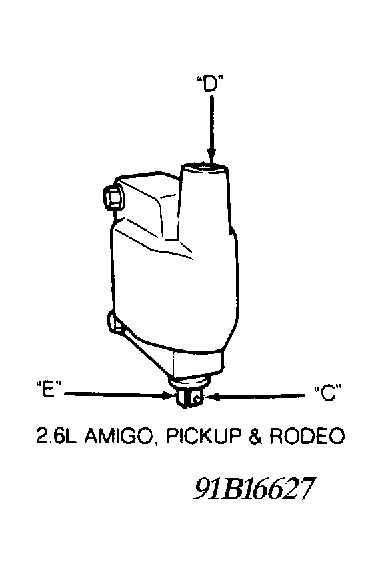

    Fig 1: Identifying Ignition Coil Terminals
    G91B16627Courtesy of ISUZU MOTOR CO.
