Dash Fuse Panel Identification
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dash Fuse Panel Identification: Notes

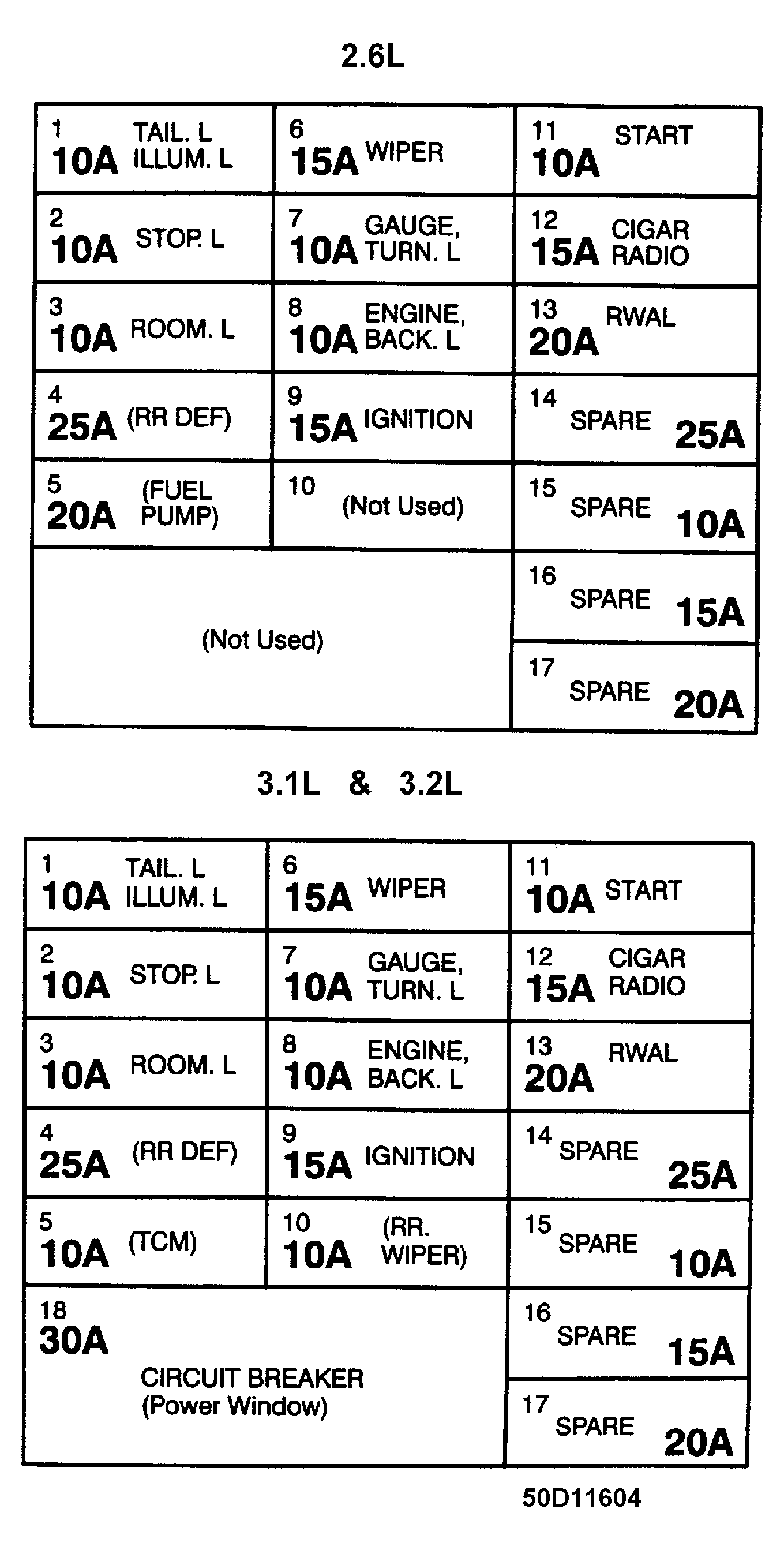

Fig 1: Dash Fuse Panel Identification
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
