Ignition Coil

Ensure ignition is off. Disconnect ignition coil wiring. Measure primary resistance between terminals "C" and "E". See Fig 1 . Measure secondary resistance between terminals "C" and "D". Measure insulation resistance between terminals "C" and body ground.
Make sure resistance is within specification. Refer to the IGNITION COIL RESISTANCE (NON-HEI SYSTEMS) table. Replace coil if resistance is not within specification.

IGNITION COIL RESISTANCE (NON-HEI SYSTEMS)

Application/Model ⁽¹⁾

Primary Ohms @ 68°F (20°C)

Secondary Ohms @ 68°F (20°C)

Rodeo 2.6L

.81-.99

7500-11,300

⁽¹⁾	Insulation resistance should not be more than 10 megohms.

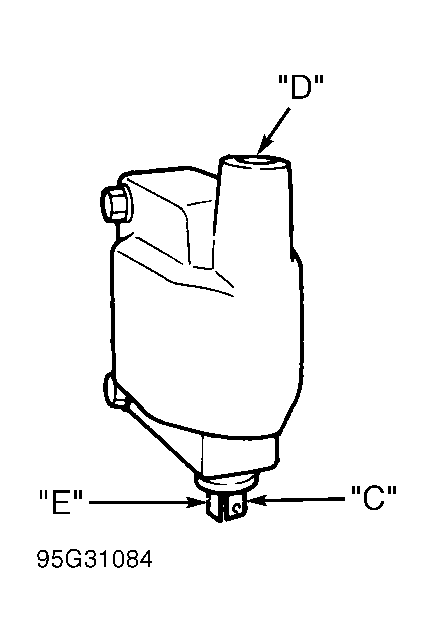

Fig 1: Identifying Ignition Coil Terminals

Courtesy of ISUZU MOTOR CO.
