ECM Terminal Identification

The following conditions must be present before testing pin voltages:

• Engine at normal operating temperature.
• Engine idling in closed loop (ENGINE RUN column).
• ALDL test terminal not grounded.

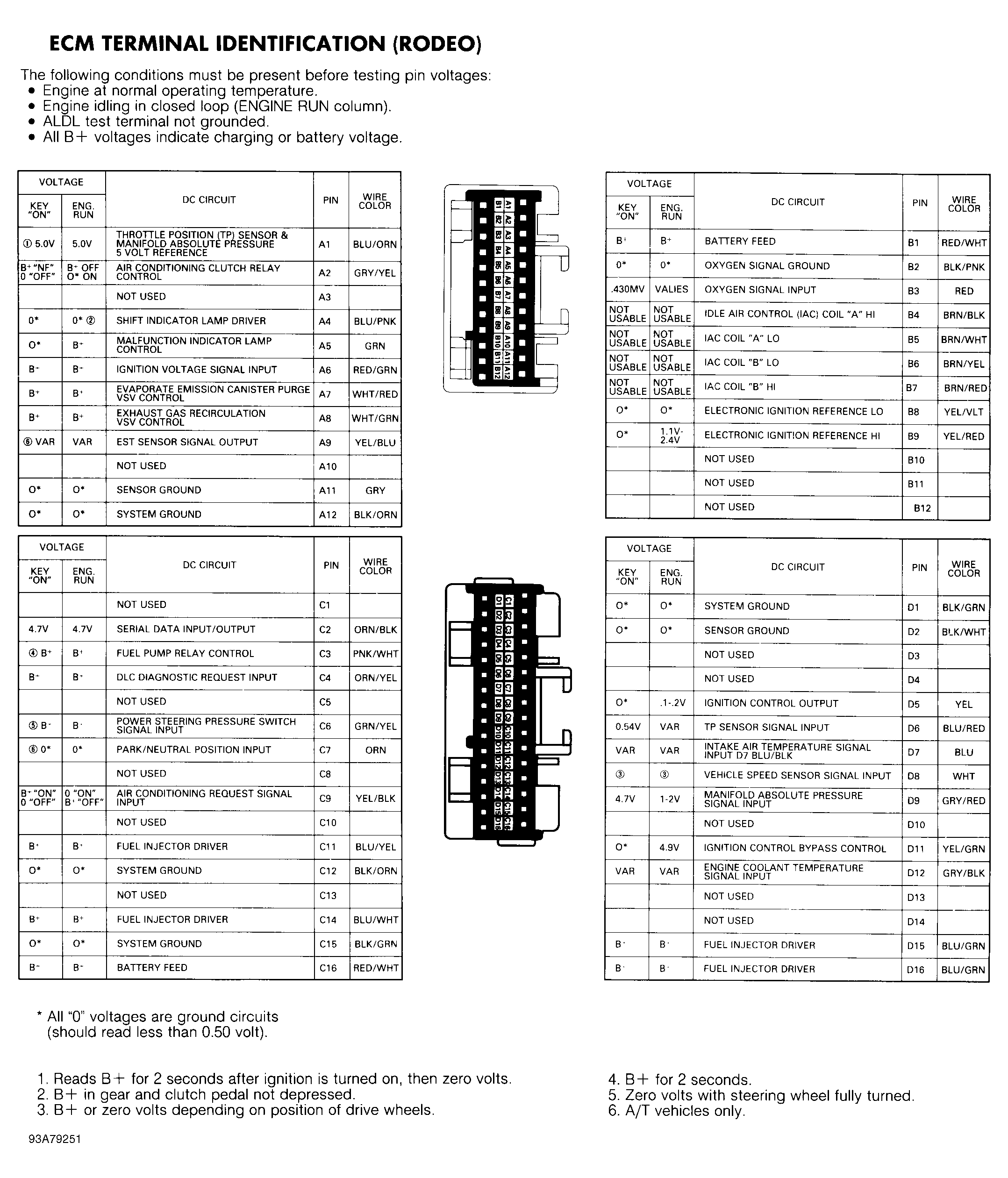

Fig 1: ECM Terminal Idendification

Courtesy of ISUZU MOTOR CO.
