Trouble Shooting Charts

TROUBLE SHOOTING CHART DIRECTORY

Application Go To:

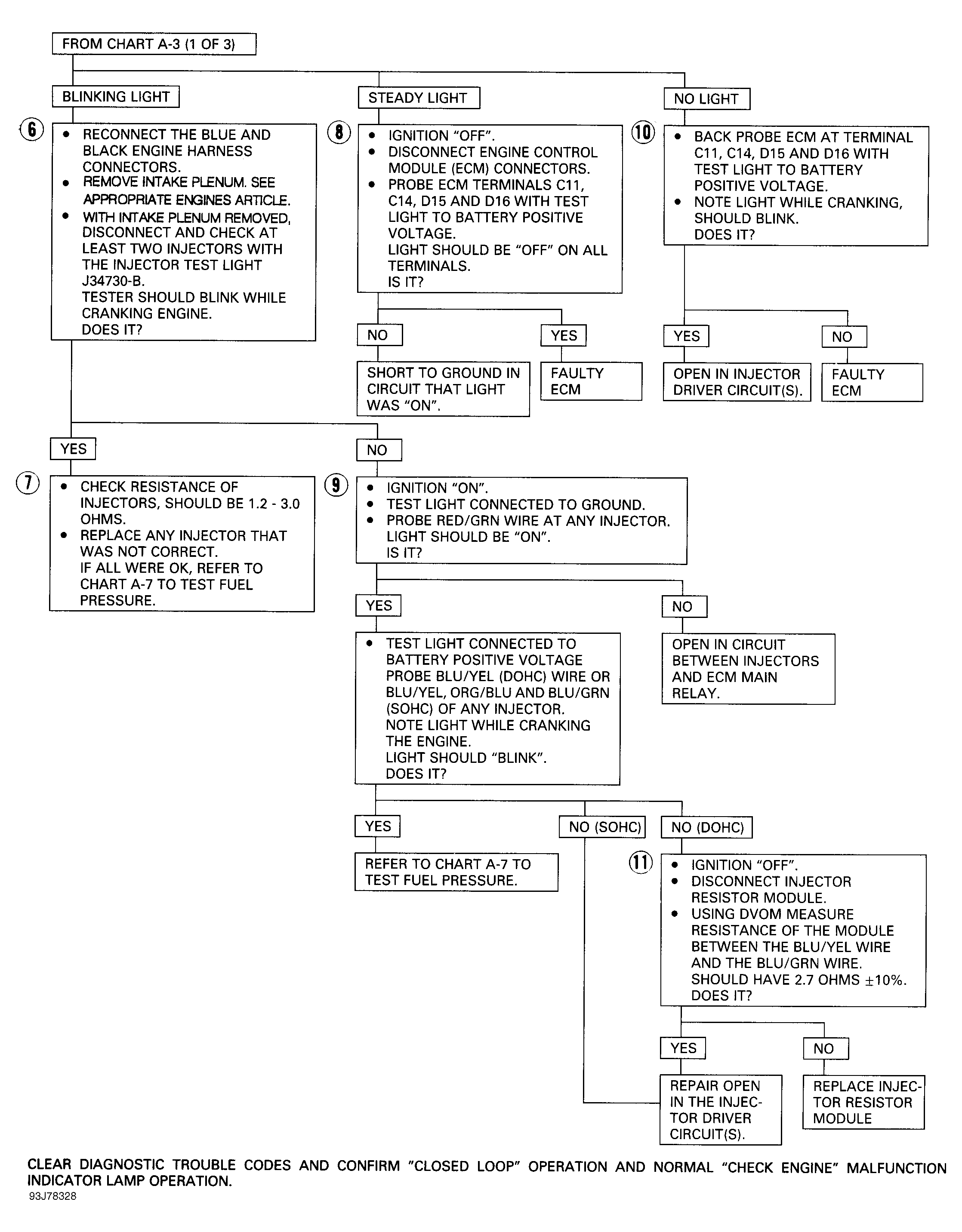

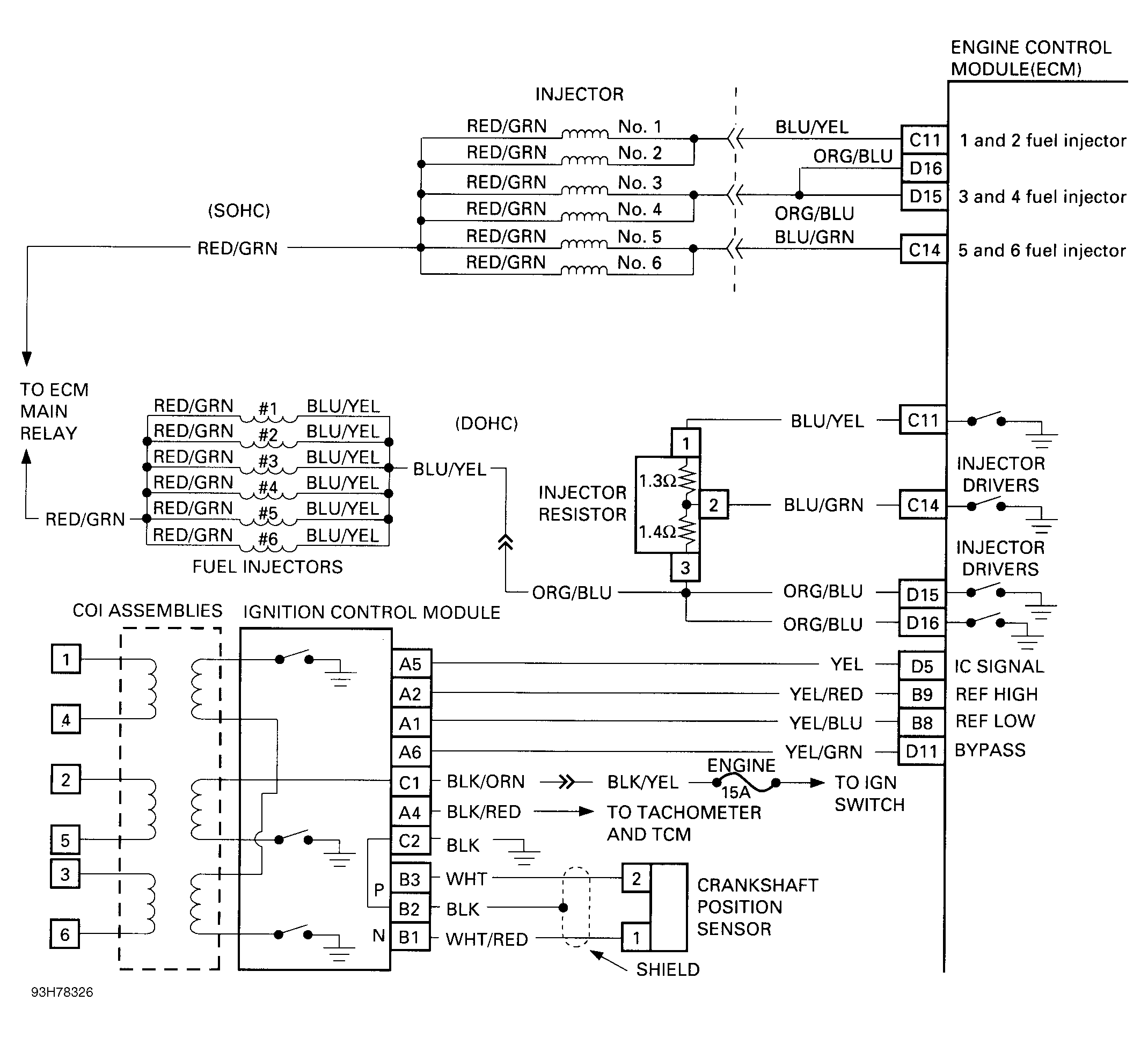

Engine Cranks But Will Not Run See Figure -Figure

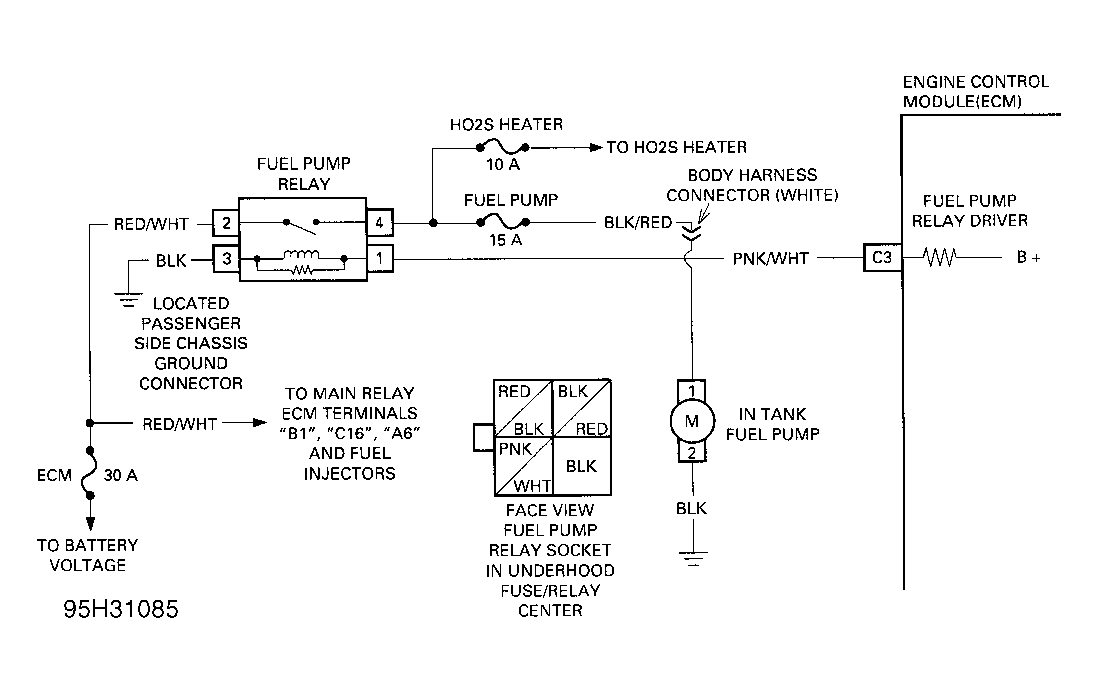

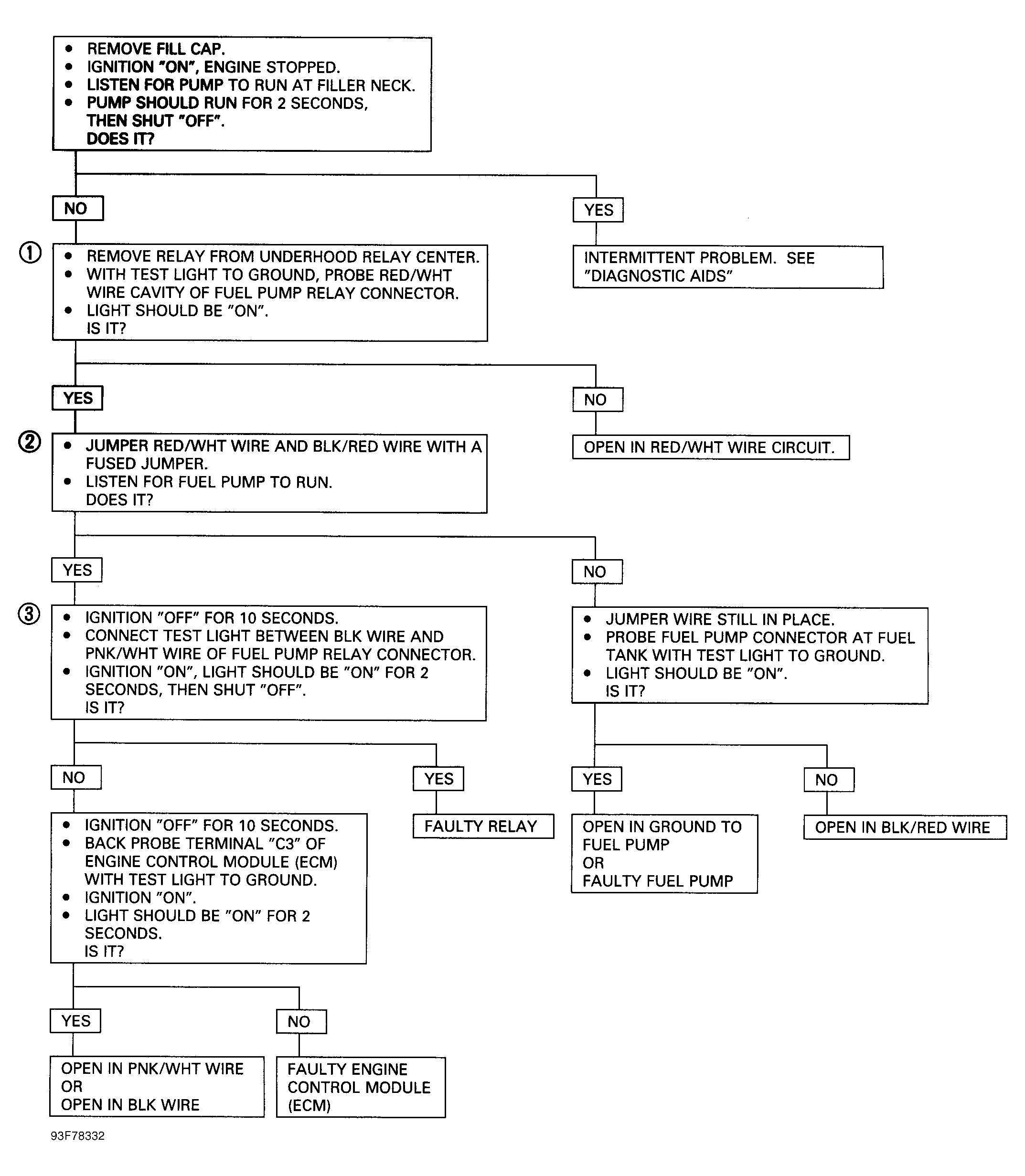

Fuel Pump Relay Circuit Test See Figure & Figure

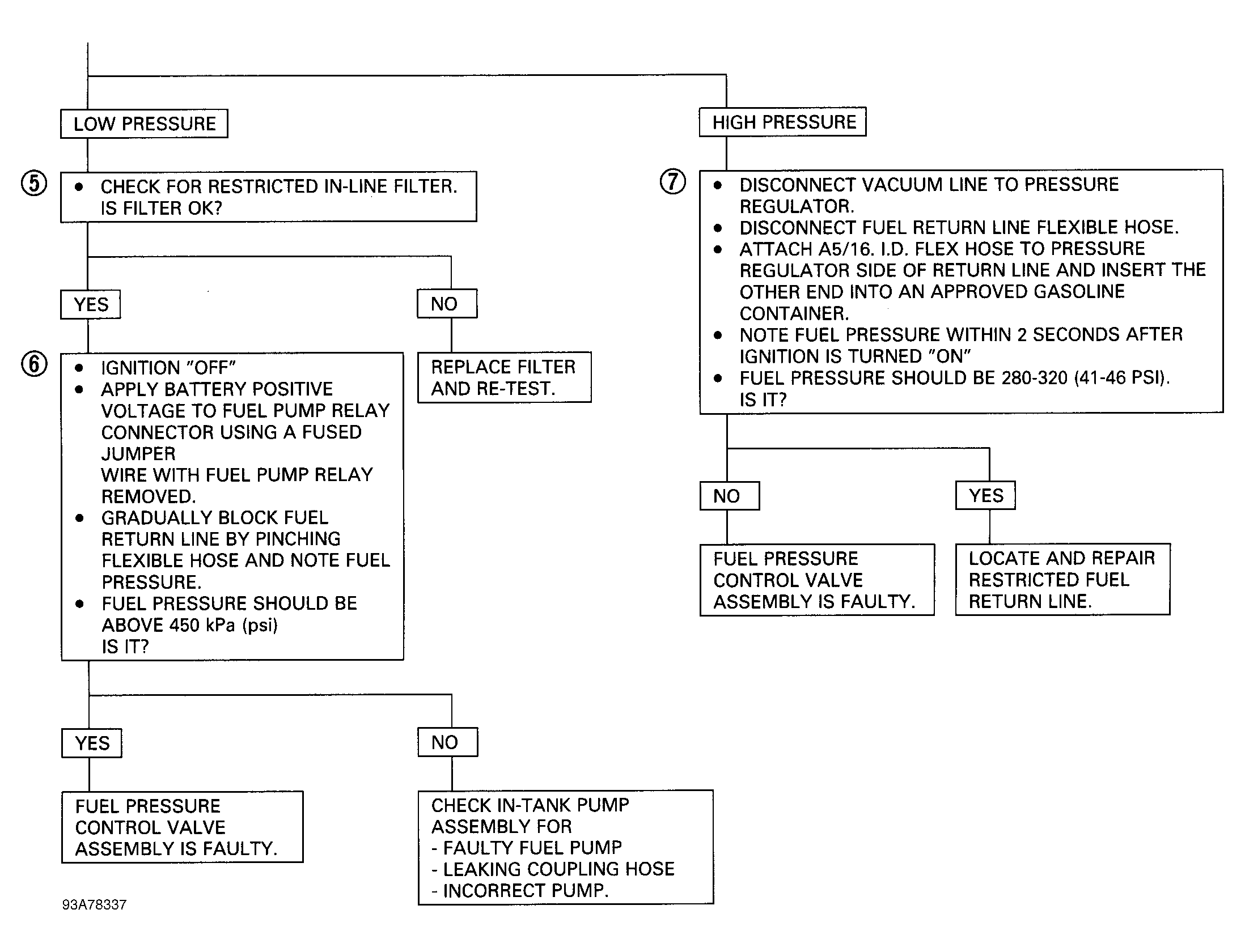

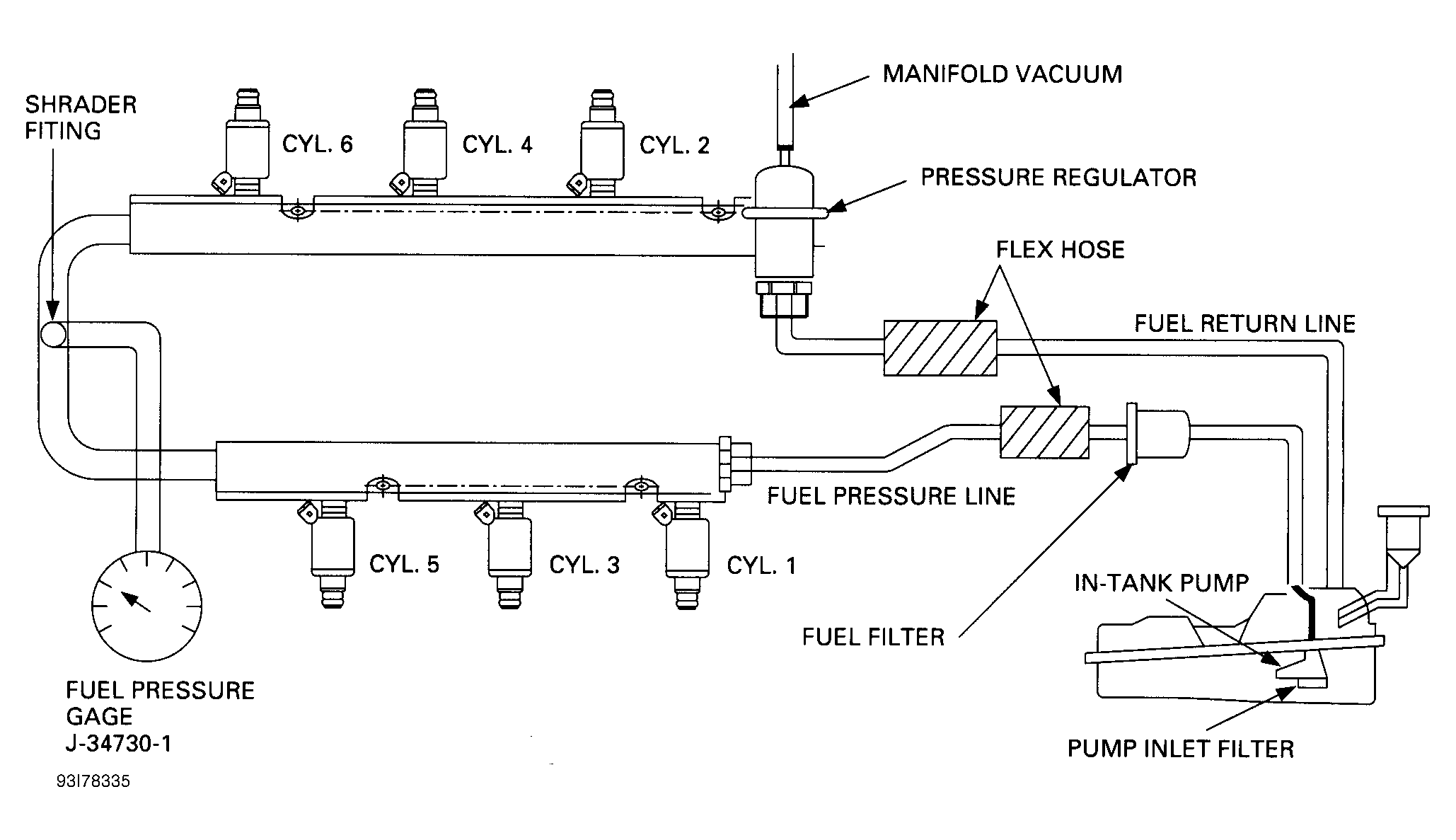

Fuel System Pressure Test See Figure -Figure

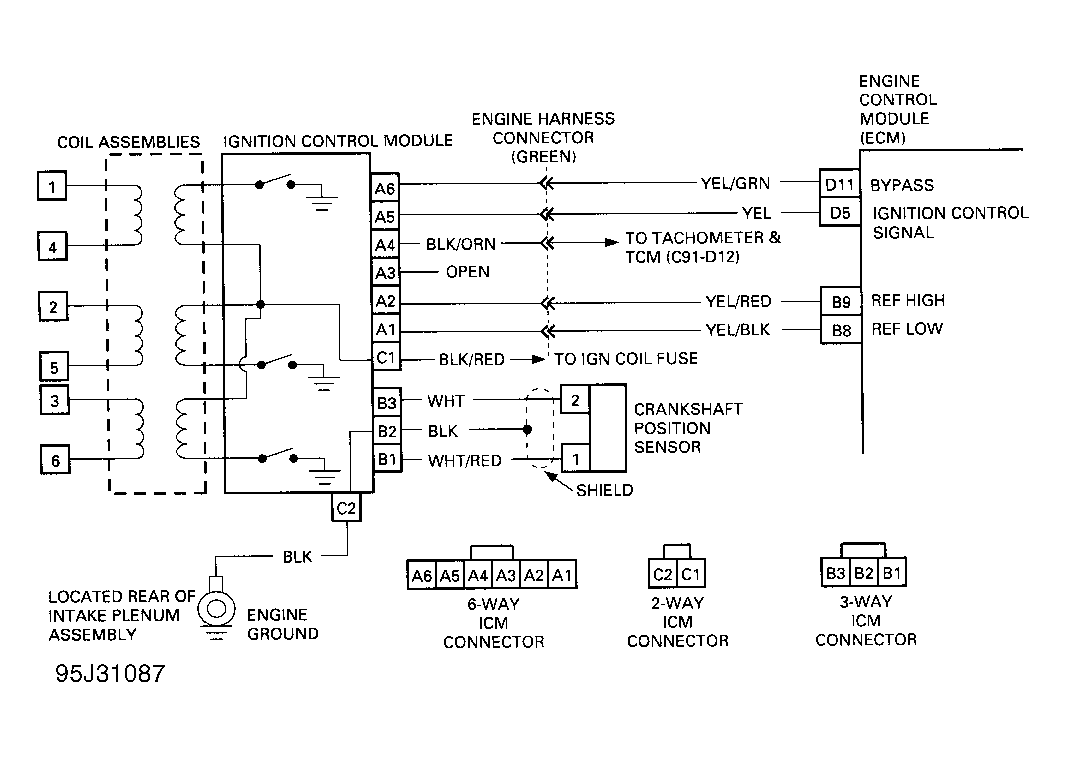

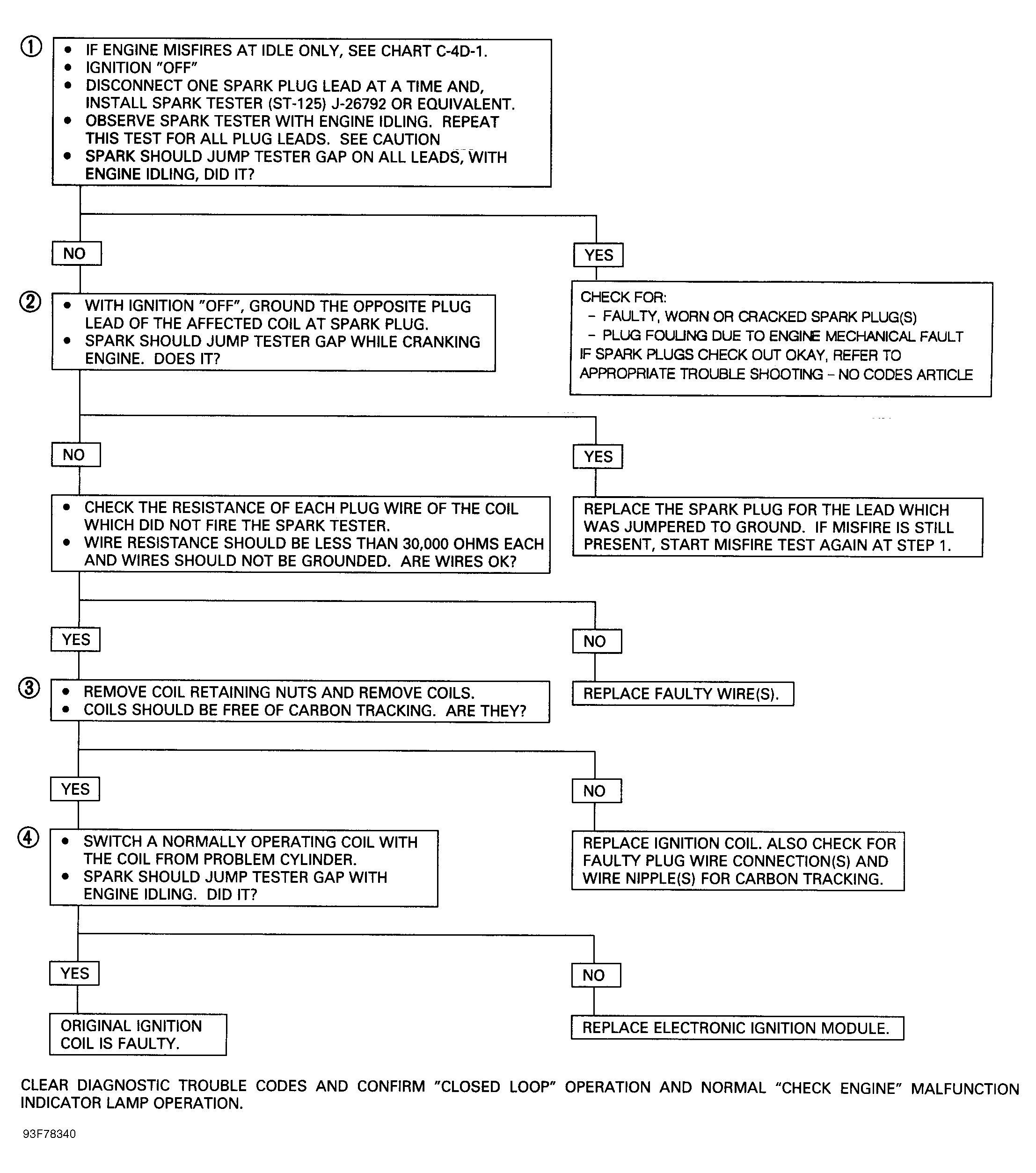

Ignition System Check See Figure -Figure
