Ignition Coil Resistance (Internal Coil)

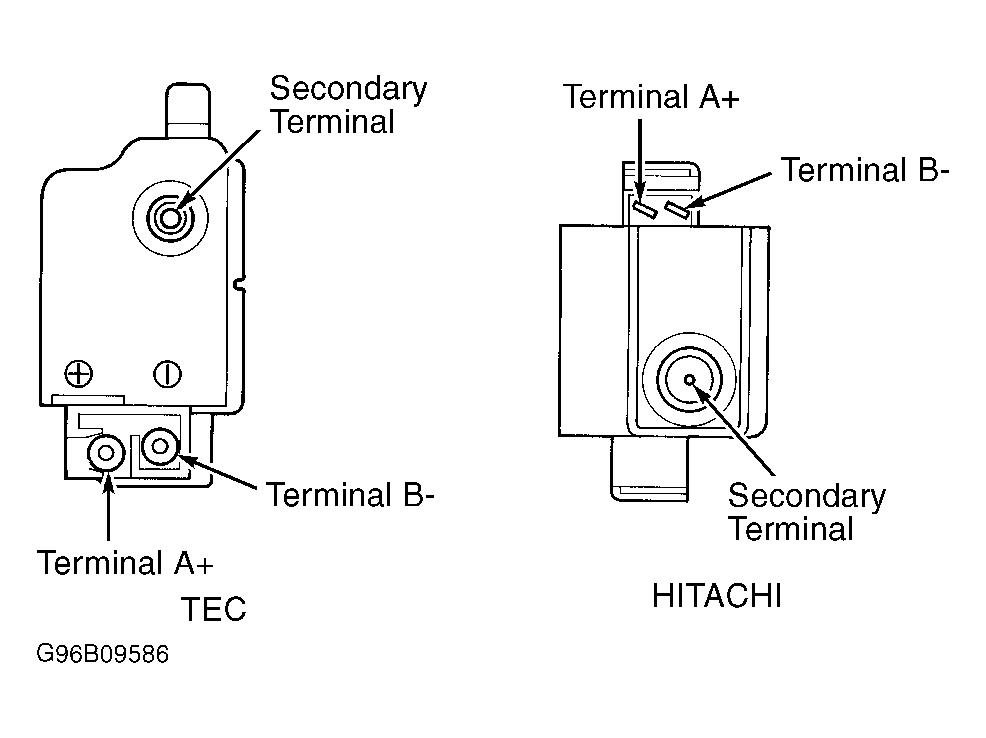

- Turn ignition off. Remove distributor cap. Remove primary leads from ignition coil. Using an ohmmeter, check primary resistance between ignition coil terminals "A" (+) and "B" (-). See Fig 1. Resistance should be as specified. See IGNITION COIL RESISTANCE table.
- Check secondary resistance between ignition coil terminal "A" (+) and secondary output terminal (coil tower). See IGNITION COIL RESISTANCE table. If readings are not as specified, replace ignition coil.
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Primary | Secondary |
|---|---|---|
| Oasis | .4-.6 | 22,000-34,000 |
