Fuel Injector Resistor

Unplug injector resistor harness connector. Injector resistor is located at upper left firewall. Measure resistance between injector resistor terminal No. 1 and terminals No. 2, 3, 5 and 6. See Fig 1 . Resistance should be 5-7 ohms for each measurement. If any measurement is not as specified, replace injector resistor.

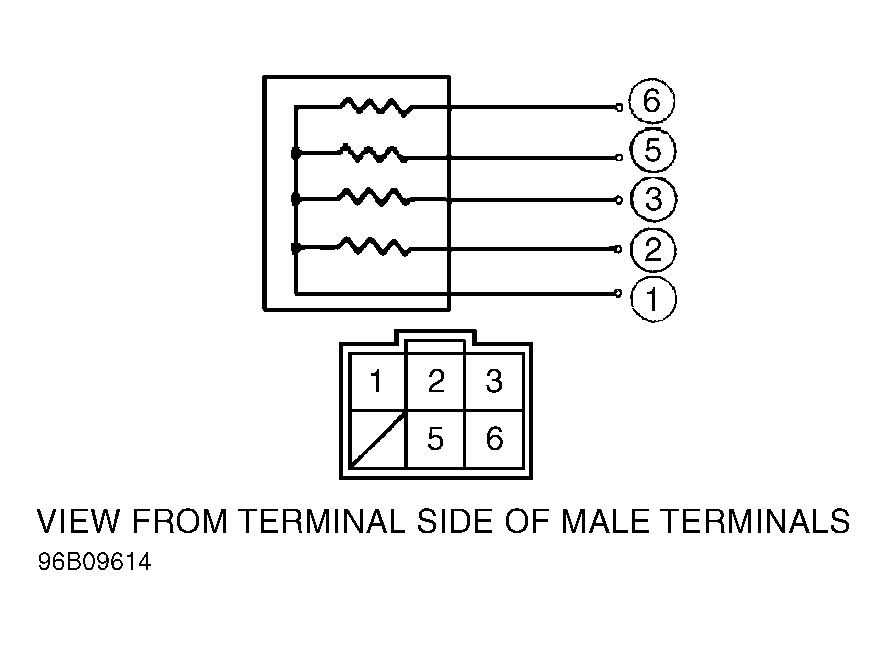

Fig 1: Injector Resistor Connector Terminal ID (Oasis)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
