Engine Controls - System/Component Tests - 2.6L
>>
Component Locations
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Locations

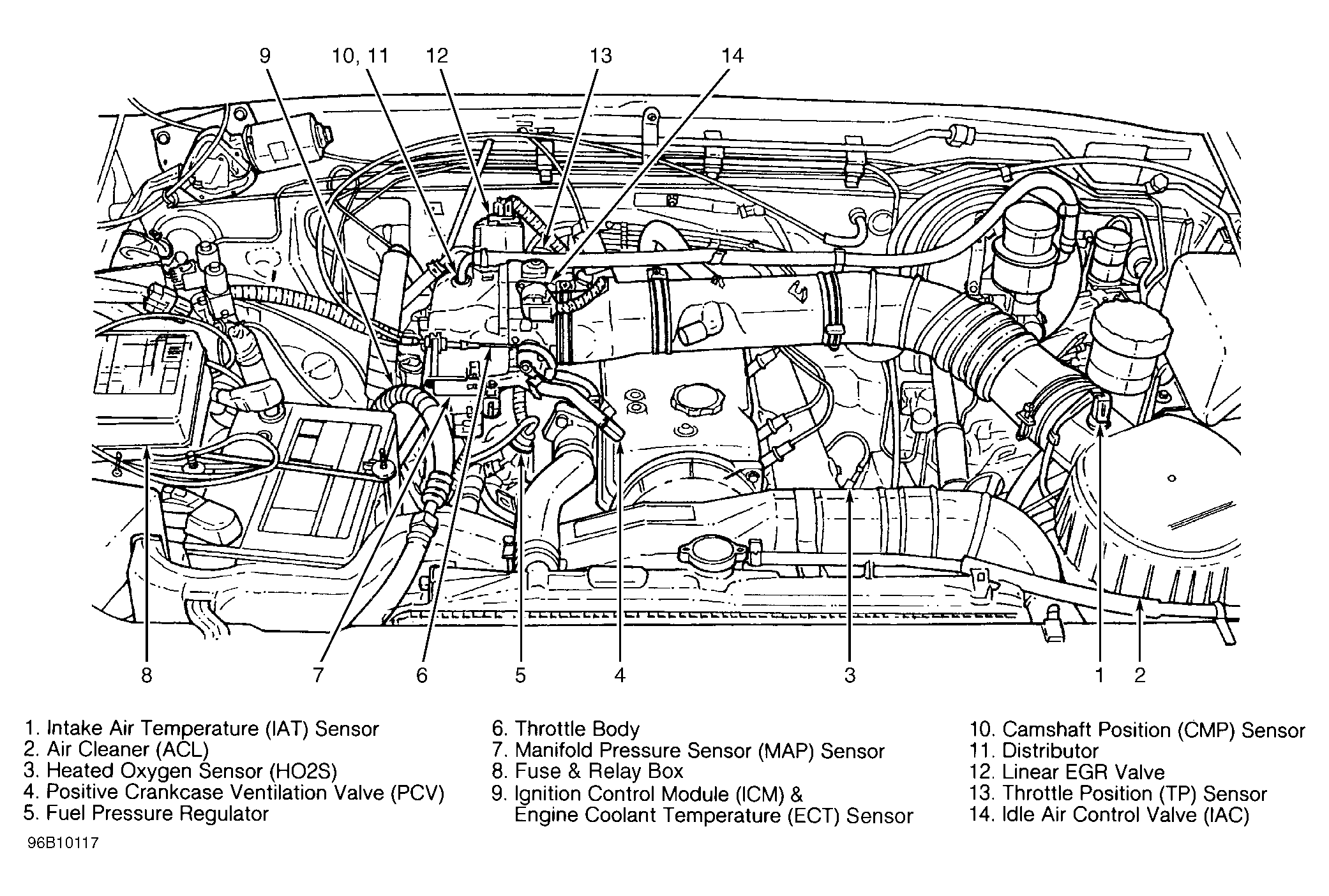

Fig 1: Component Location (2.6L)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
