Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Dash Fuse Box Behind left kick panel. See Figure .
Diode Box A On right side of engine compartment, in fuse/relay box.
Diode Box B Right side of engine compartment, in fuse/relay box.
Diode Box No. 1 Behind left kick panel, on dash fuse box.
Diode Box No. 2 Behind left kick panel, on dash fuse box.
Diode Box No. 3 Behind left kick panel, on dash fuse box.
Diode Box No. 6 Behind left kick panel, on dash fuse box.

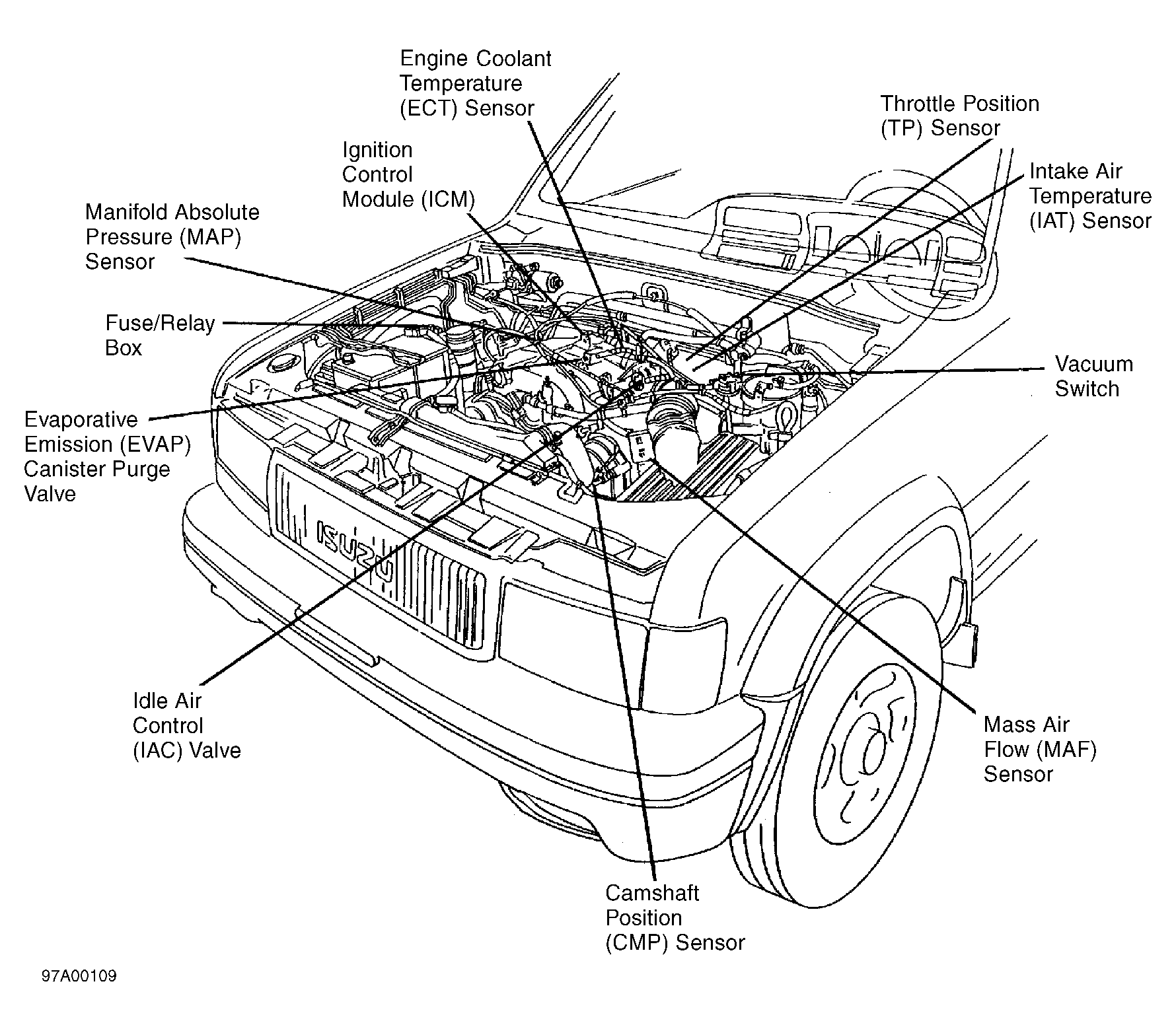

Fuse/Relay Box On right side of engine compartment. See Figure .
SRS Fuse Box Left kick panel, top of dash fuse box. See Figure .
