Ignition Switch Test

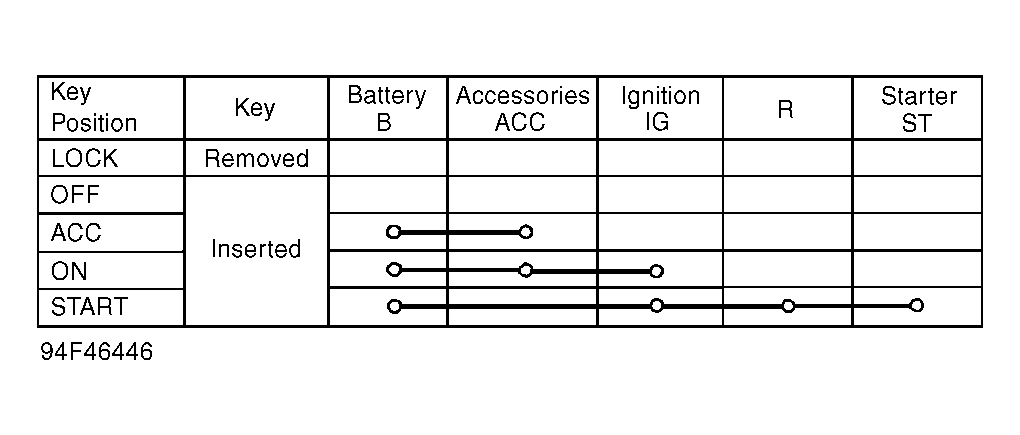

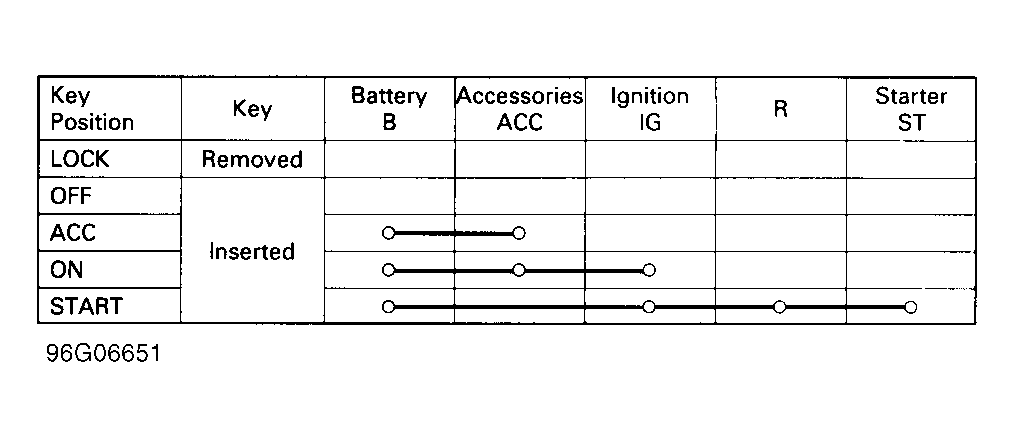

If ignition switch is suspected of being faulty, disconnect harness connector from switch. Using an ohmmeter, check for continuity between specified switch terminals. See Fig 1 . If continuity is not as specified, replace ignition switch.
