Description & Operation: Notes

All models use a collapsible steering column with an integral ignition switch and locking device. Some models include tilt wheel, gearshift interlock device and/or Supplemental Inflatable Restraint (SIR) system. See Fig 1 and Fig 2.

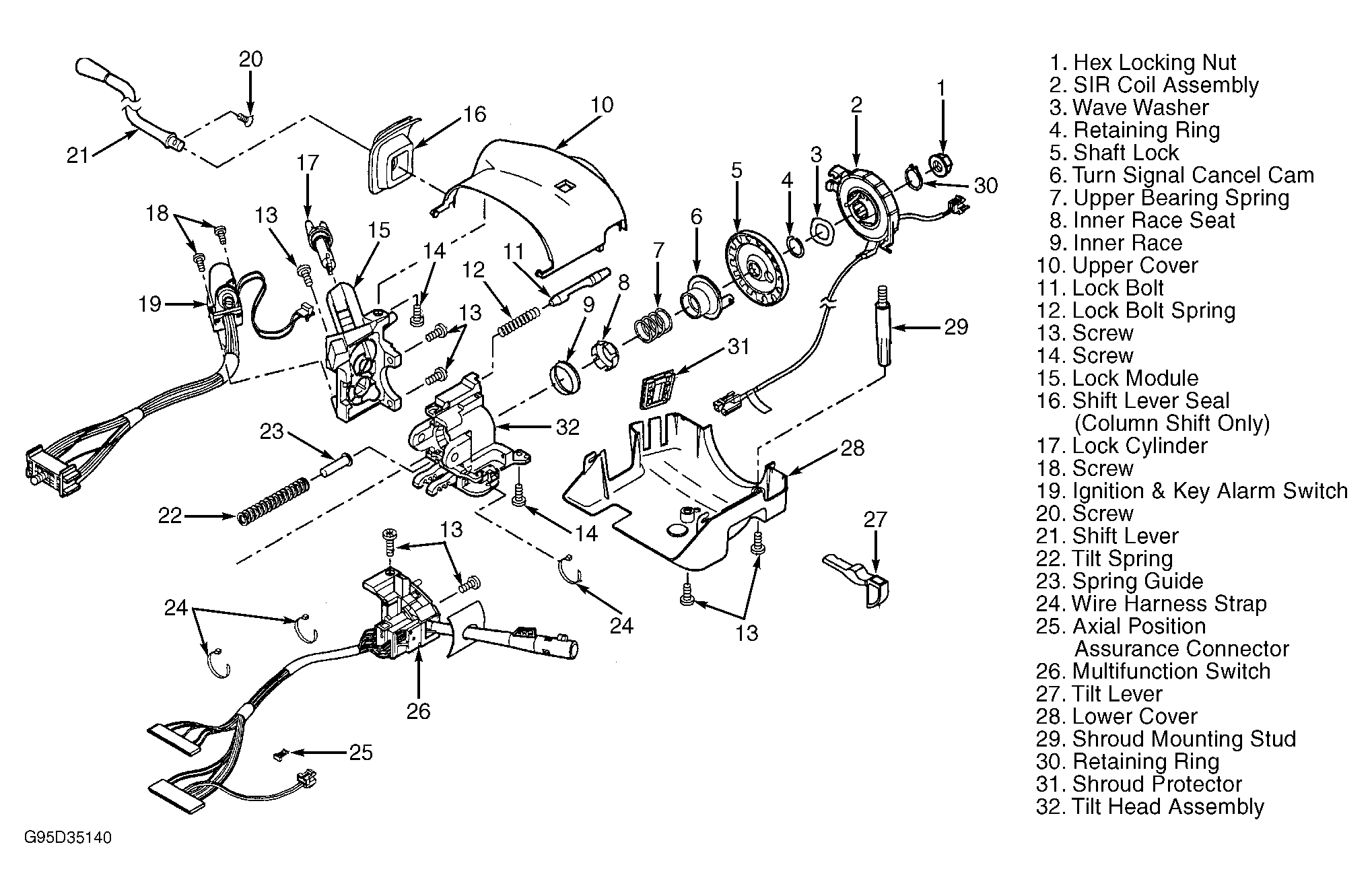

Fig 1: Exploded View Of Tilt-Steering Column Components (Hombre); Non-Tilt Steering Column Is Similar

Courtesy of ISUZU MOTOR CO.

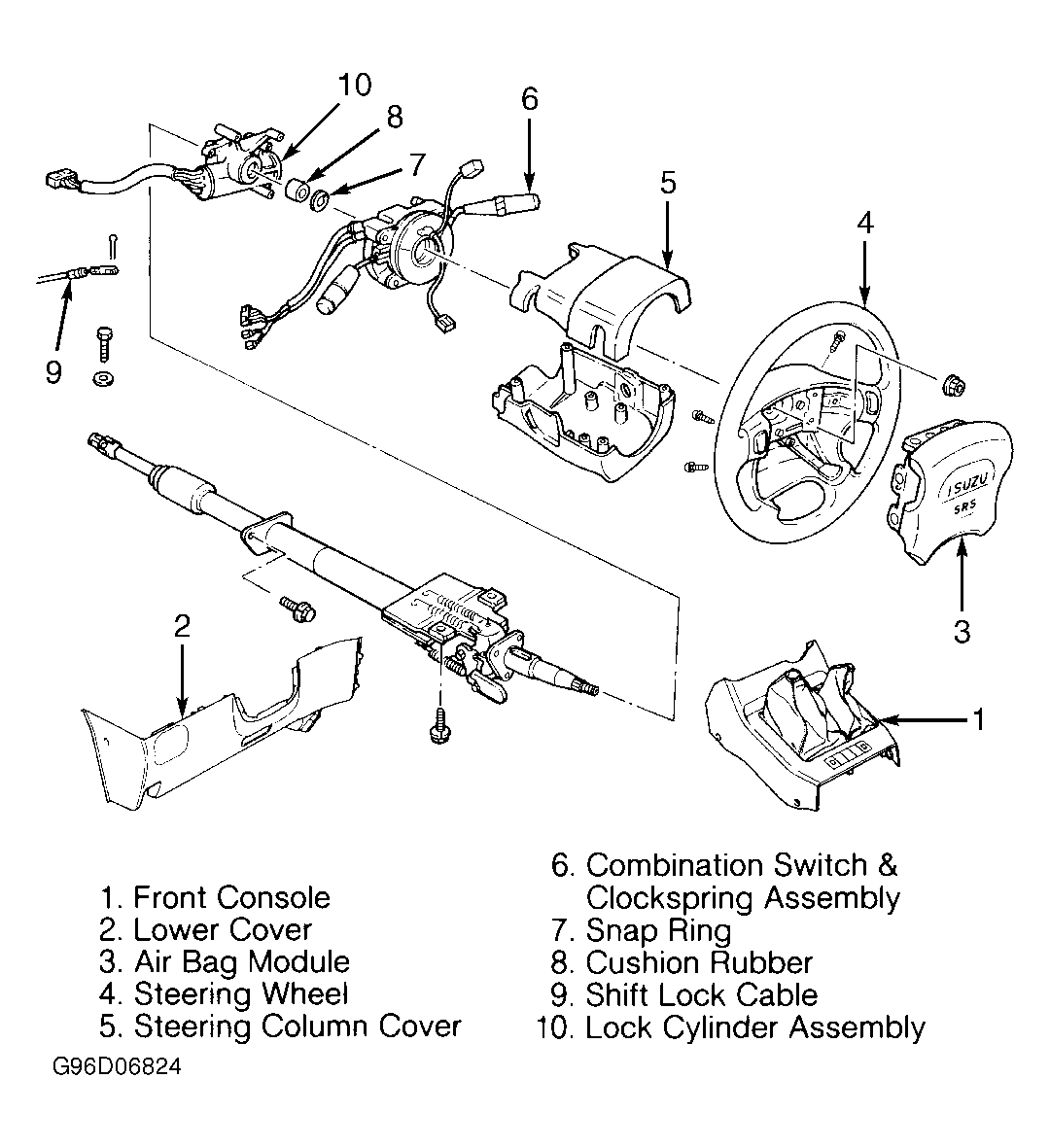

Fig 2: Exploded View Of Steering Column Components (Trooper Is Shown; Amigo & Rodeo Are Similar)

Courtesy of ISUZU MOTOR CO.

WARNING: To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS. Deactivate air bag system before performing any repairs. See DISABLING & ACTIVATING AIR BAG SYSTEM.
