Passenger's Window Switch Test

Remove power window master switch. See MASTER POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 . See PASSENGER'S POWER WINDOW SWITCH TEST table.

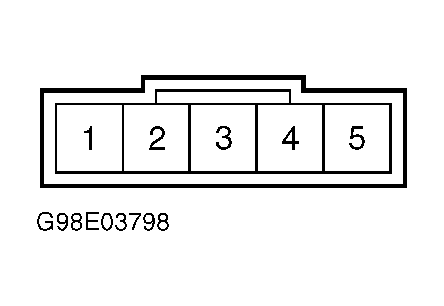

Fig 1: Identifying Passenger's Power Window Switch Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PASSENGER'S POWER WINDOW SWITCH TEST

Switch Position		Pin Continuity
Civic, Odyssey & Oasis
Off		2 & 3; 4 & 5
Up		1 & 4; 2 & 3
Down		1 & 3; 4 & 5
CR-V
Off		2 & 3; 4 & 5
Up		1 & 4
Down		1 & 3
