Connector Identification

Fig 1: Identifying ECM/PCM 32-Pin Harness Connector "A" Terminals
G98A04116Courtesy of AMERICAN HONDA MOTOR CO., INC.

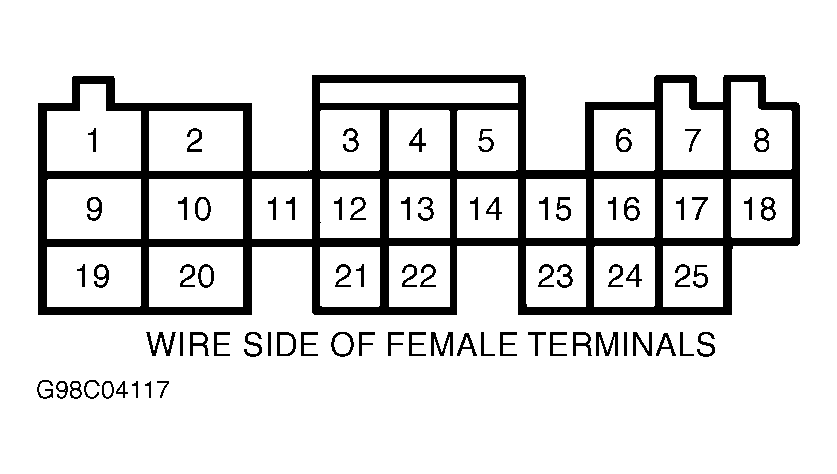

Fig 2: Identifying ECM/PCM 25-Pin Harness Connector "B" Terminals
G98C04117Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Identifying ECM/PCM 31-Pin Harness Connector "C" Terminals
G98E04118Courtesy of AMERICAN HONDA MOTOR CO., INC.

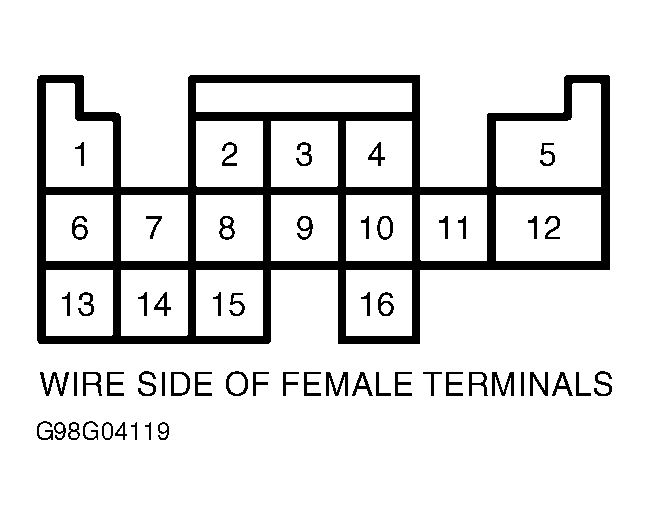

Fig 4: Identifying ECM/PCM 16-Pin Harness Connector "D" Terminals (Except Civic & Prelude)
G98G04119Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 5: Identifying ECM/PCM 16-Pin Harness Connector "D" Terminals (Civic & Prelude)
G98I04120Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 6: Identifying 16-Pin Data Link Connector (DLC) Terminals
G98C11561Courtesy of AMERICAN HONDA MOTOR CO., INC.
