Ground-to-Components Index

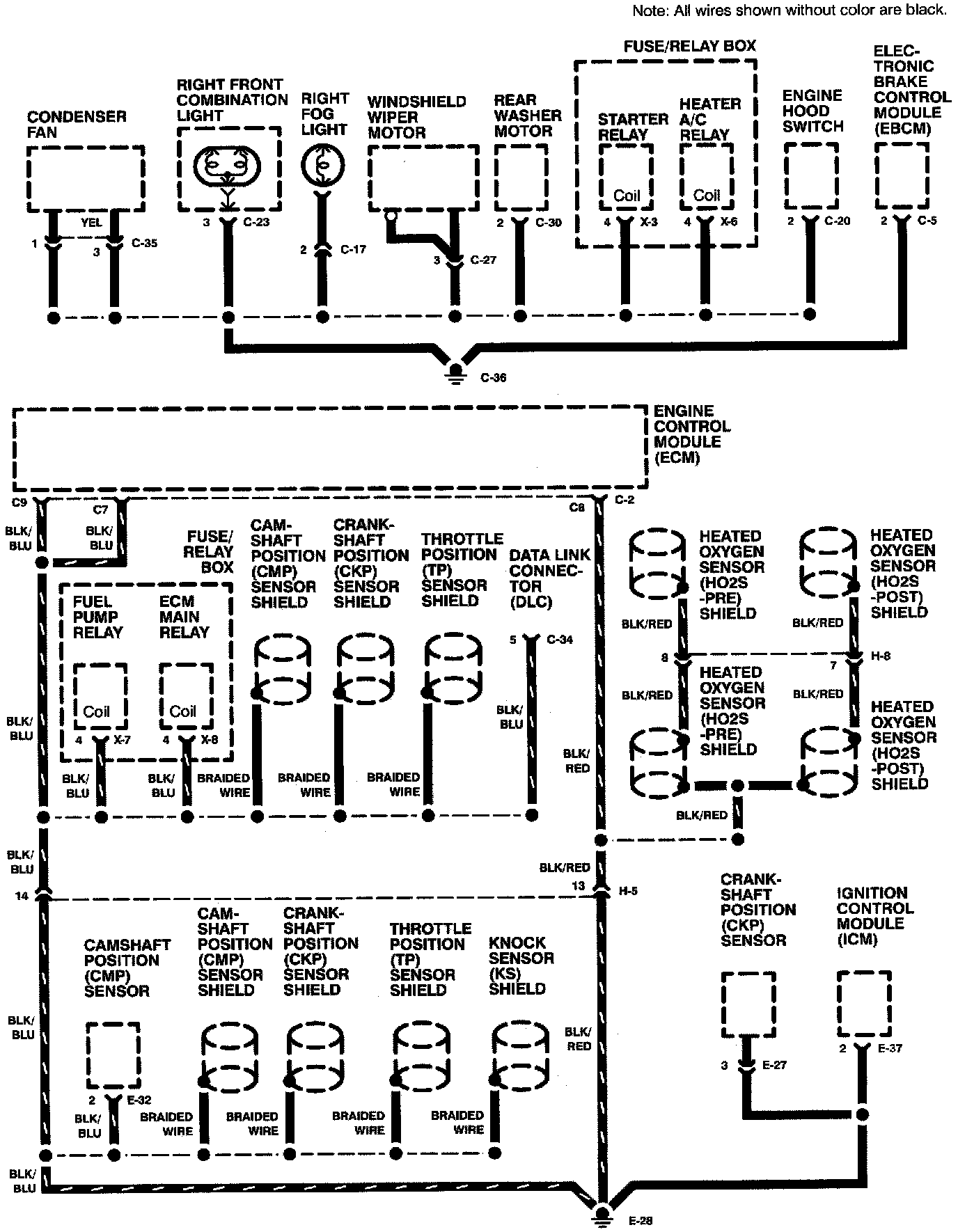

Ground Distribution 1 Of 5:

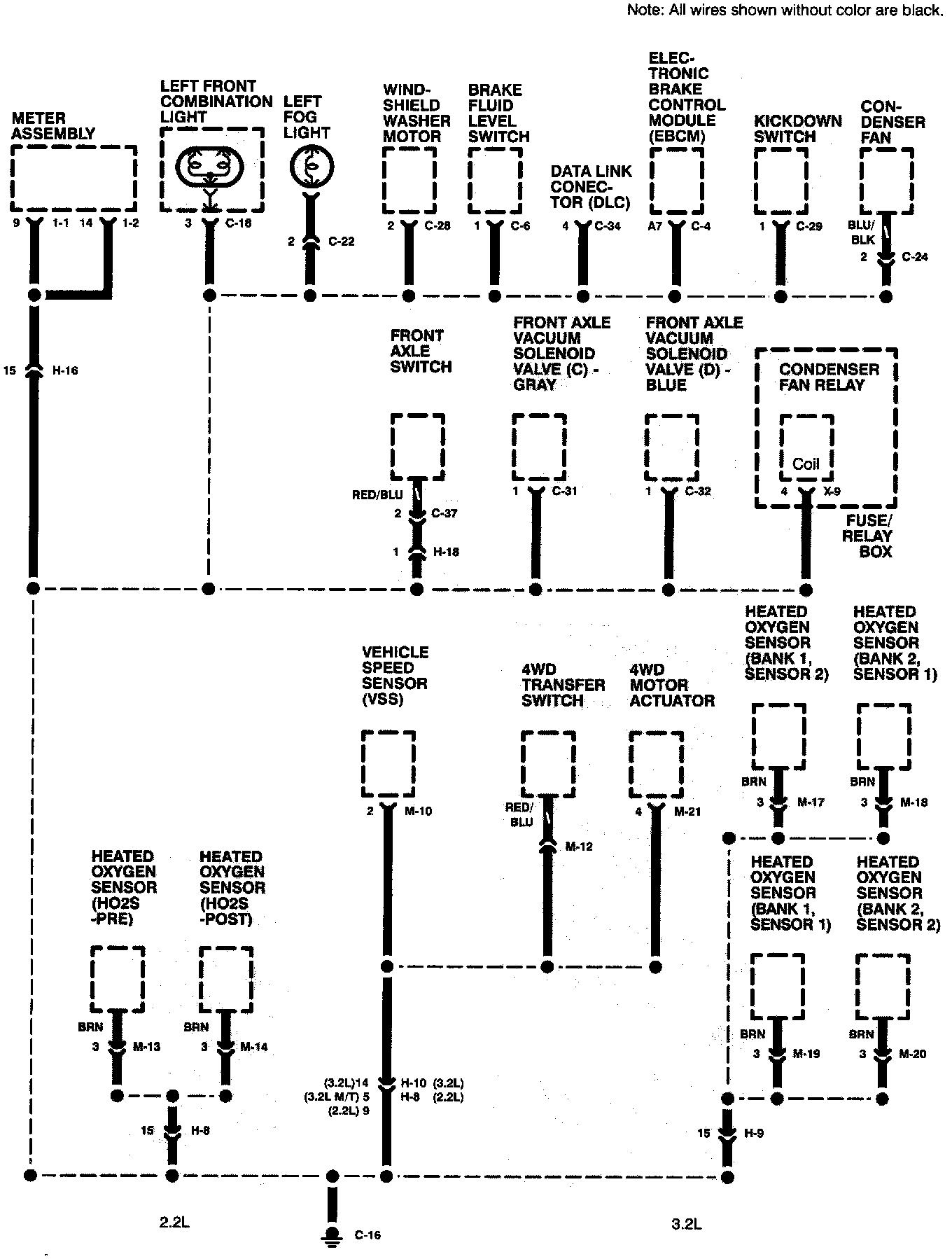

Ground Distribution 2 Of 5:

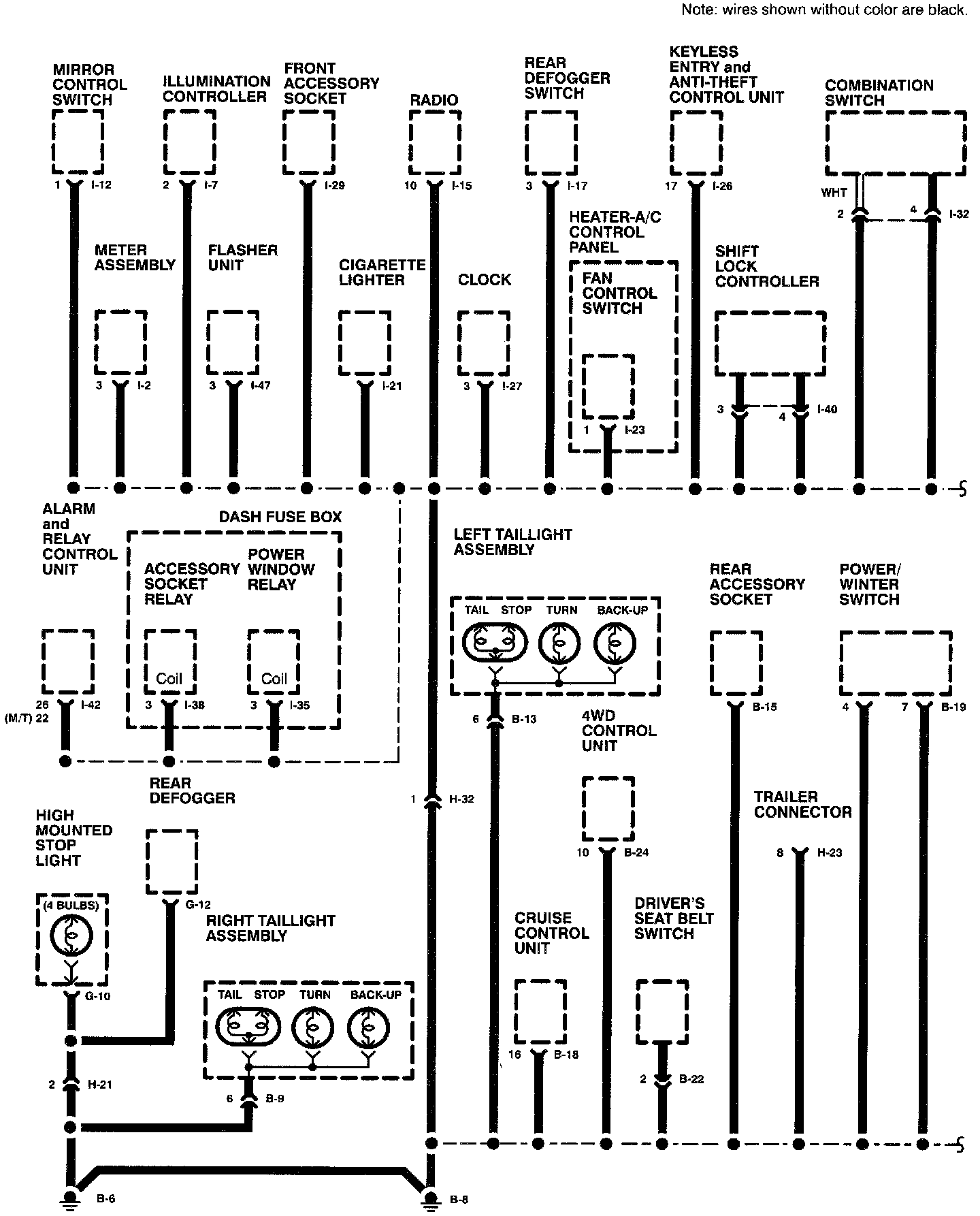

Ground Distribution 3 Of 5:

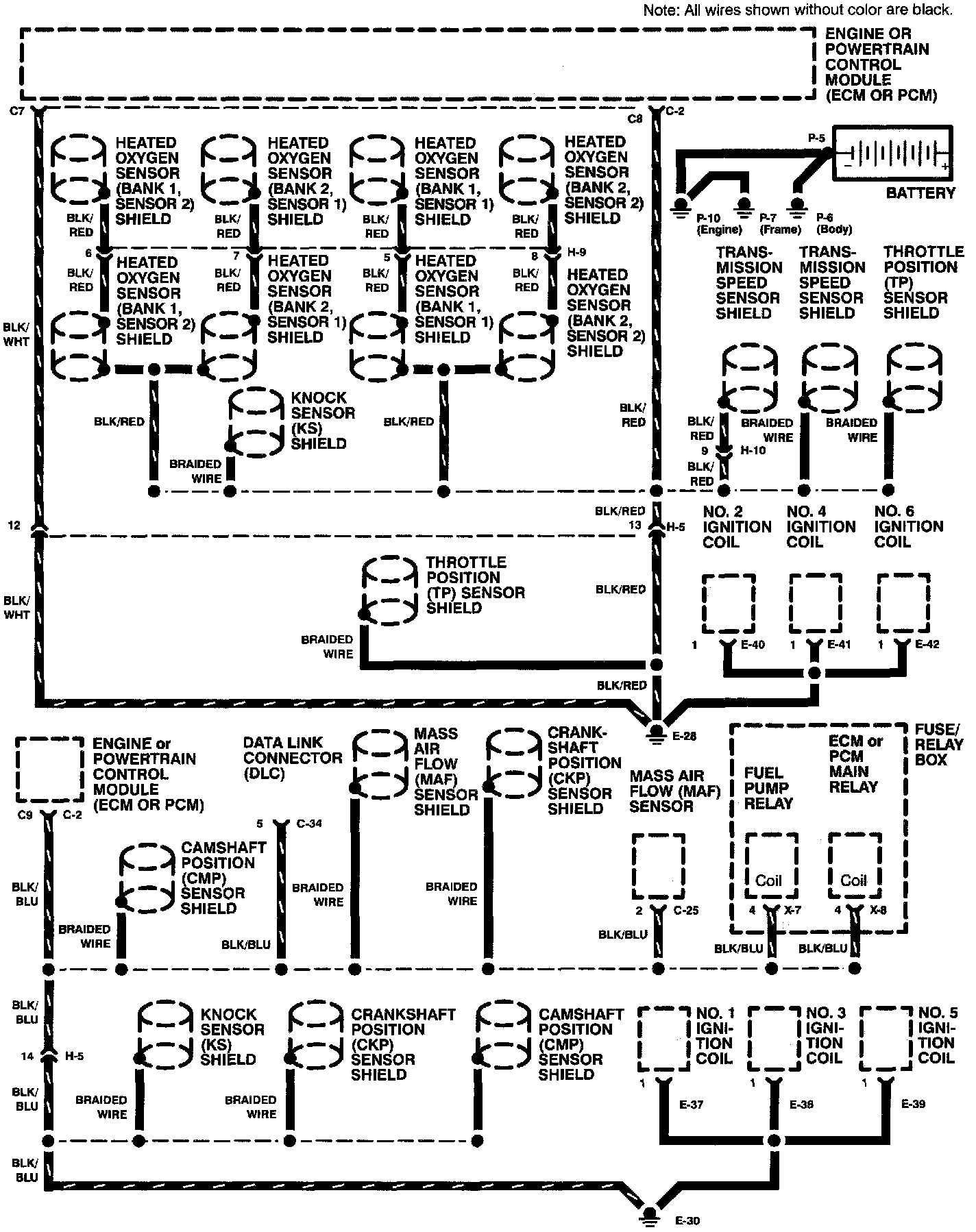

Ground Distribution 4 Of 5:

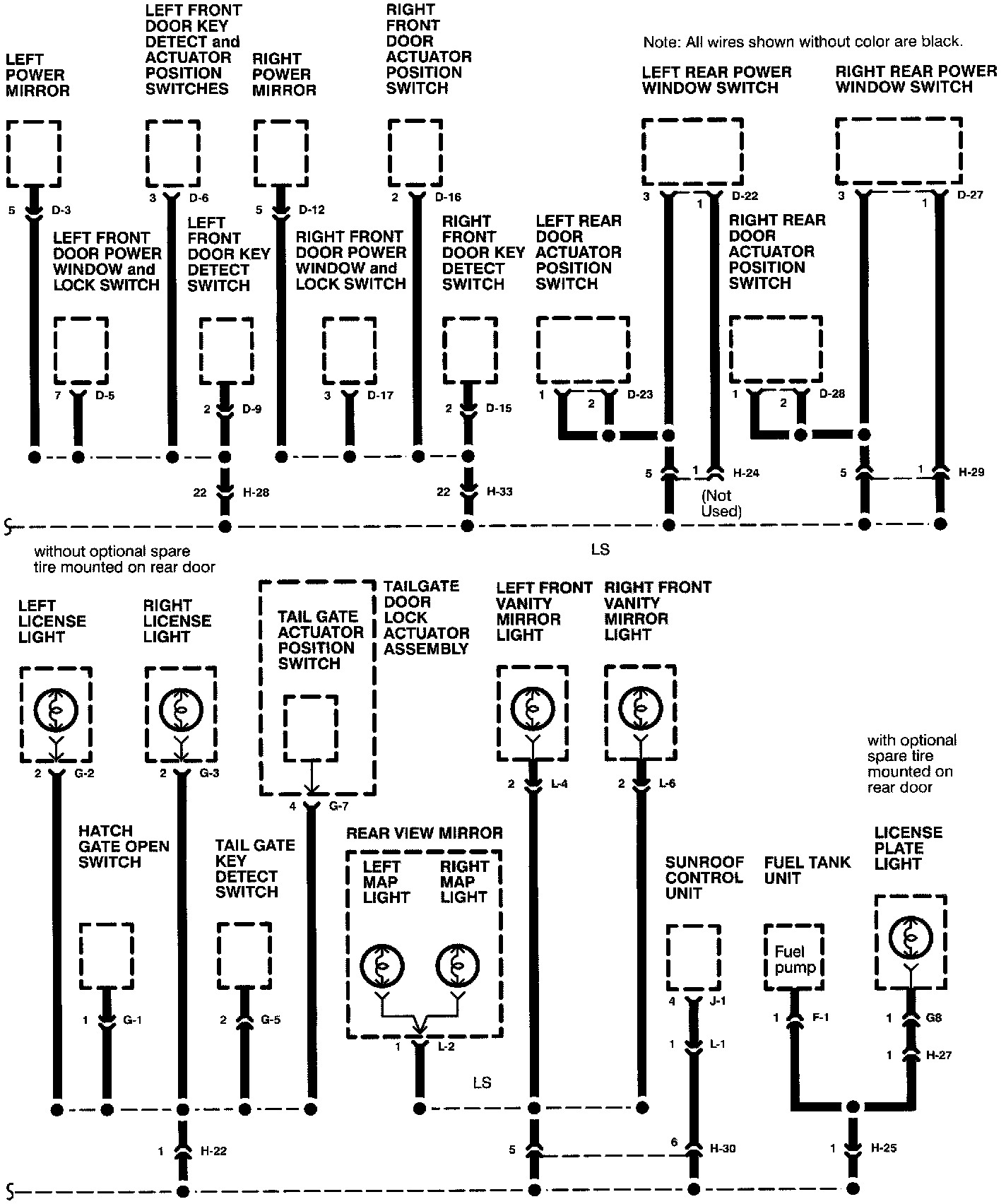

Ground Distribution 5 Of 5:
