Removal Procedure

1. Disconnect the negative battery cable.

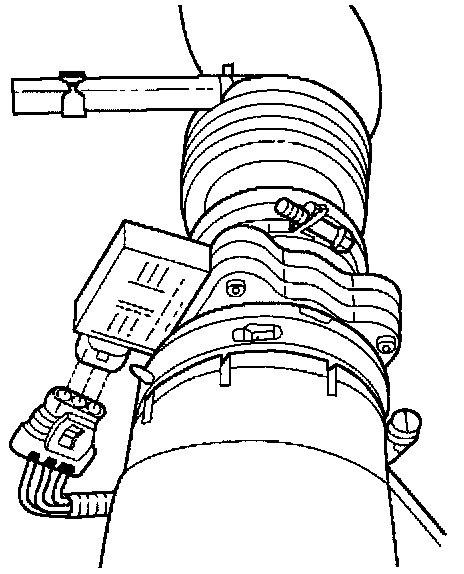

2. Disconnect the electrical connector from the MAF sensor.
3. Loosen the clamps which secure the intake air duct and the air cleaner to the MAF sensor.
4. Remove the intake air duct from the MAF sensor.
5. Remove the MAF sensor from the air cleaner.
