Installation Procedure

1. Install the rubber grommet on the fuel pump assembly.
2. Install the fuel tank vapor pressure sensor on the fuel pump assembly.
- Insert the sensor nipple firmly into the grommet.
- Keep twisting and pushing the sensor until the wide portion of the nipple shows on the other side of the grommet.

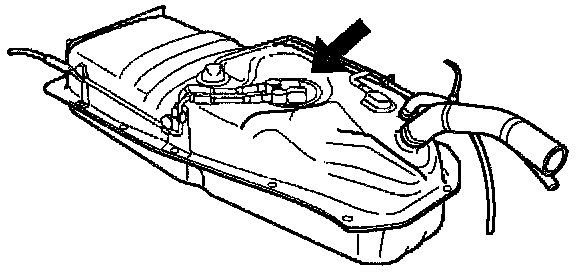

3. Install the fuel pump assembly on the fuel tank. Refer to Fuel Tank In Fuel Pump.
