Installation Procedure

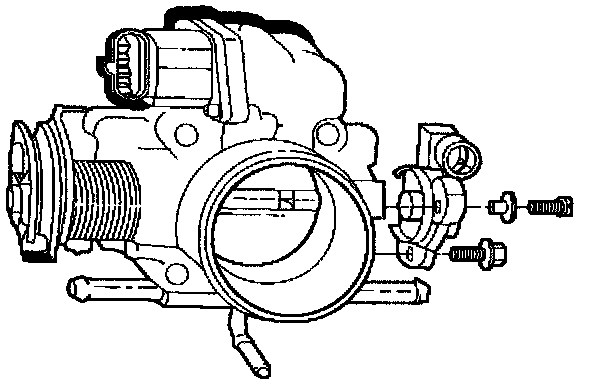

1. Install the TP sensor on the throttle body with the bolts.
2. Connect the TP electrical connector.
3. Install the negative battery cable.
