Transmission Control Systems: Application and ID

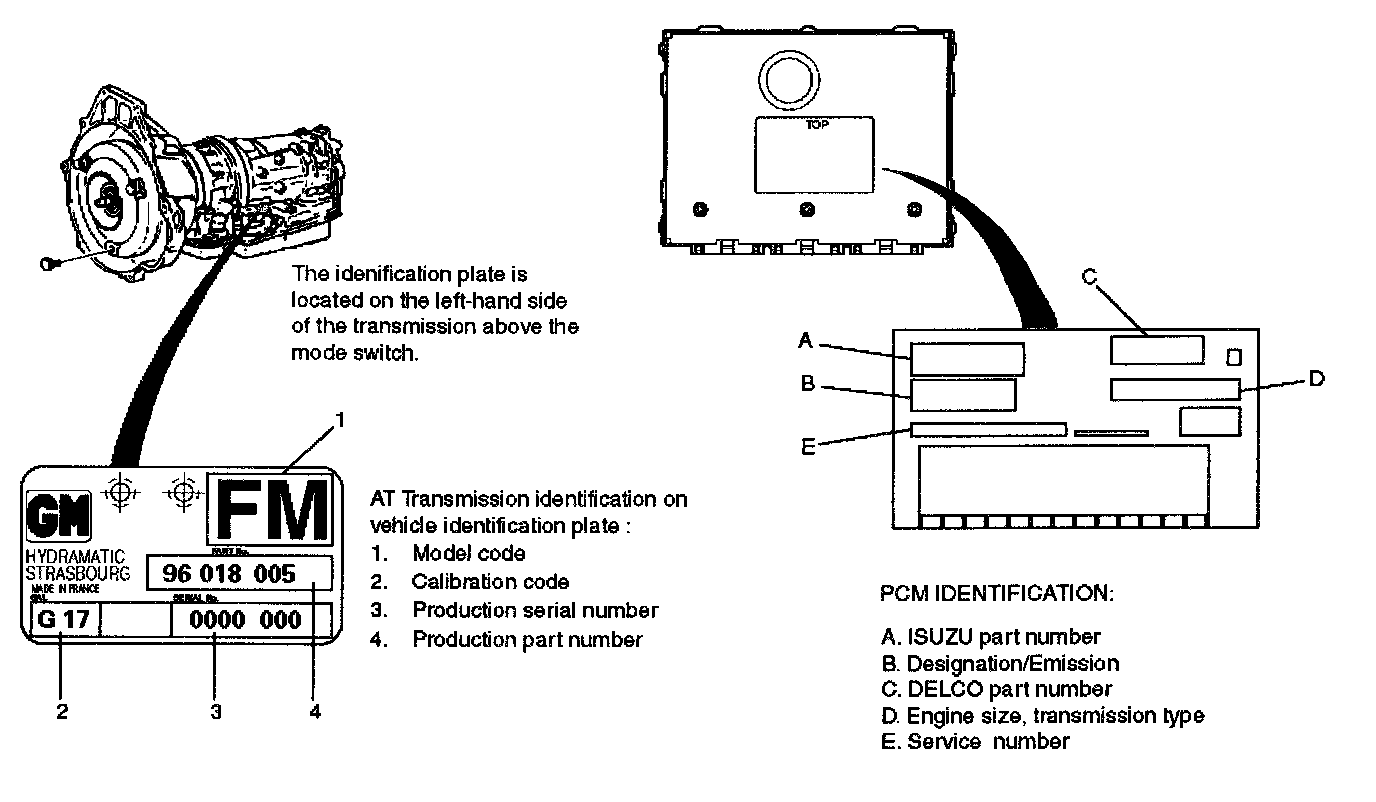

TRANSMISSION ID LABELS

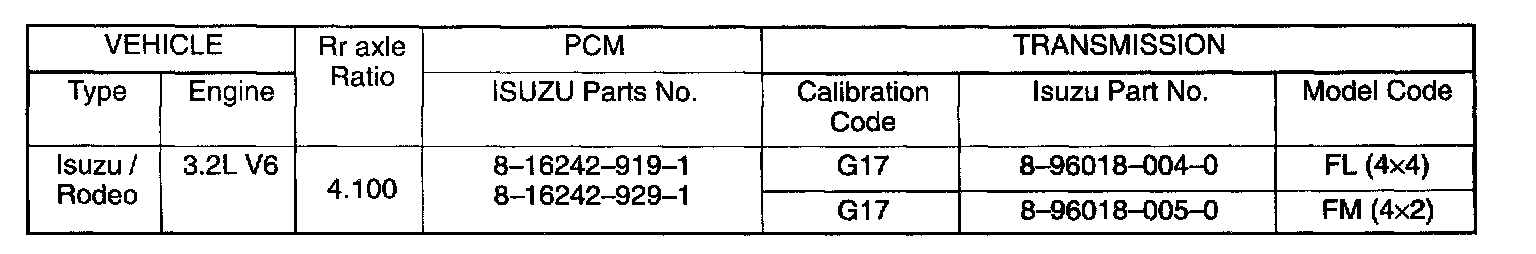

The chart contains a list of all important information concerning rear axle ratio, Powertrain Control Module (PCM), and transmission identification.
