Electrical Diagrams

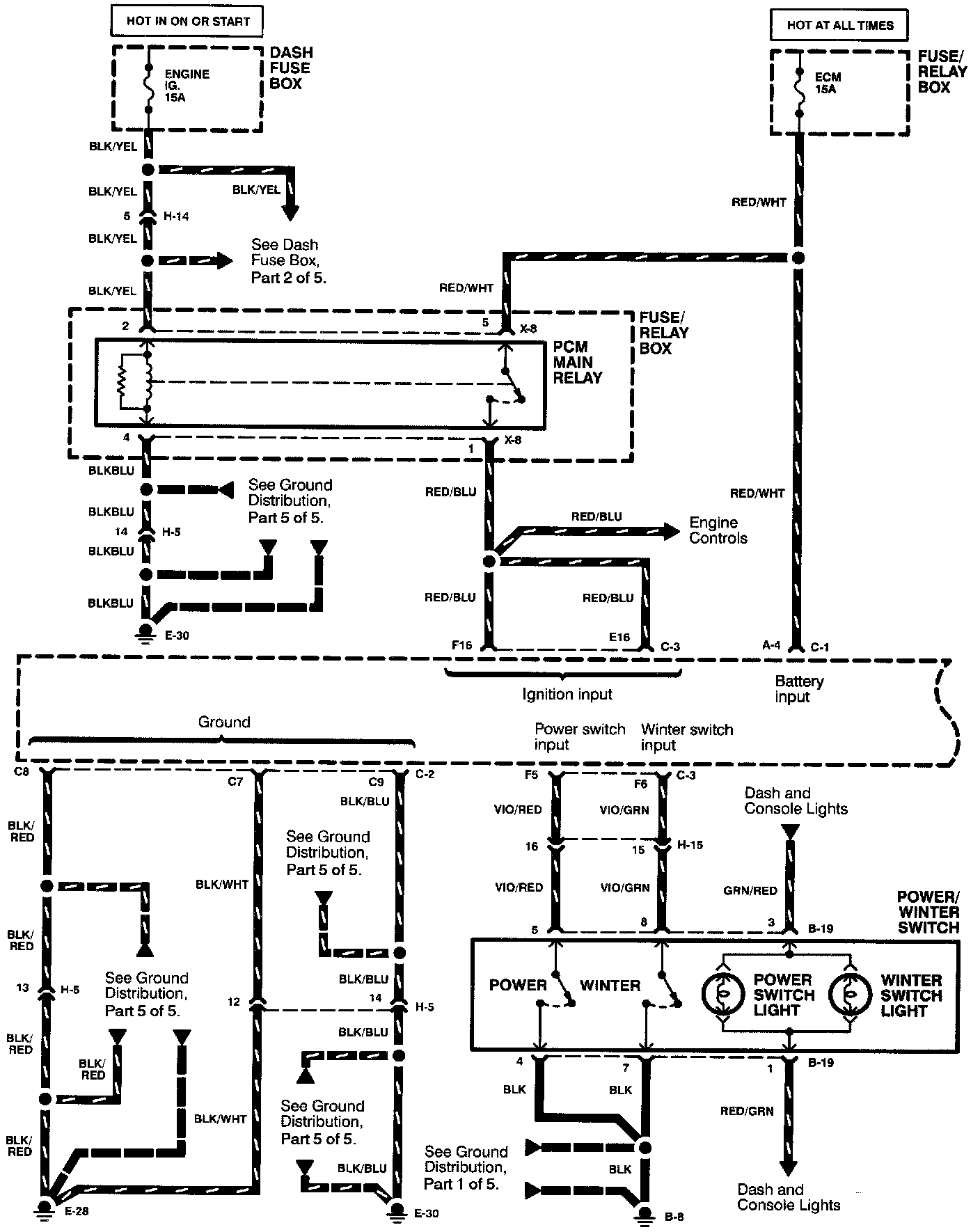

Automatic Transmission Controls (Part 1 Of 4)
Dash Fuse Box
Fuse/Relay Box
- PCM Main Relay
Power/Winter Switch
- Power Switch Light
- Winter Switch Light

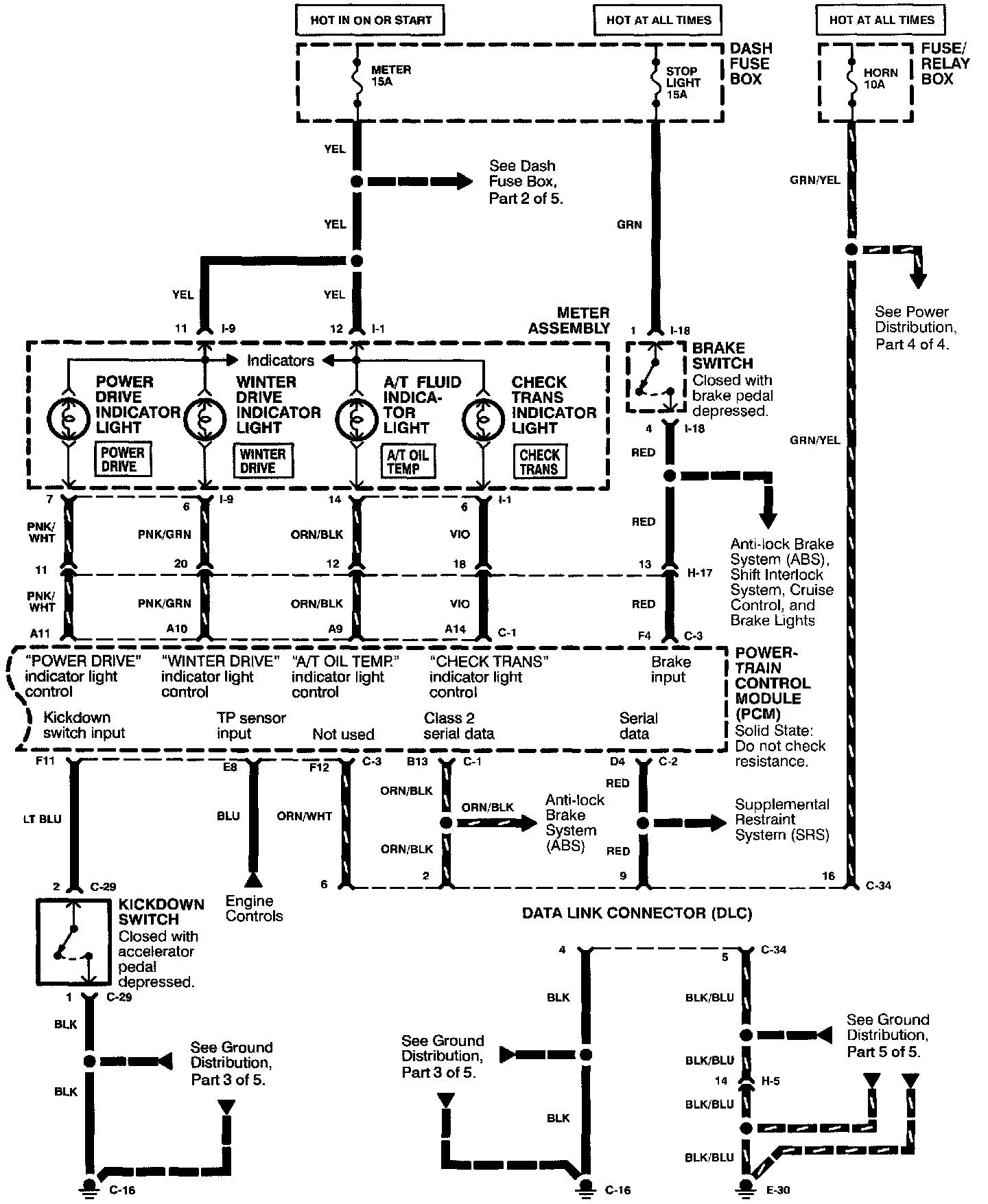

Automatic Transmission Controls (Part 2 Of 4)
Brake Switch
Dash Fuse Box
Data Link Connector (DLC)
Fuse/Relay Box
Gauge Assembly
- A/T Gear Position Switch
- Check Trans Indicator Light
- Power Drive Indicator Light
- Winter Drive Indicator Light
Kickdown Switch

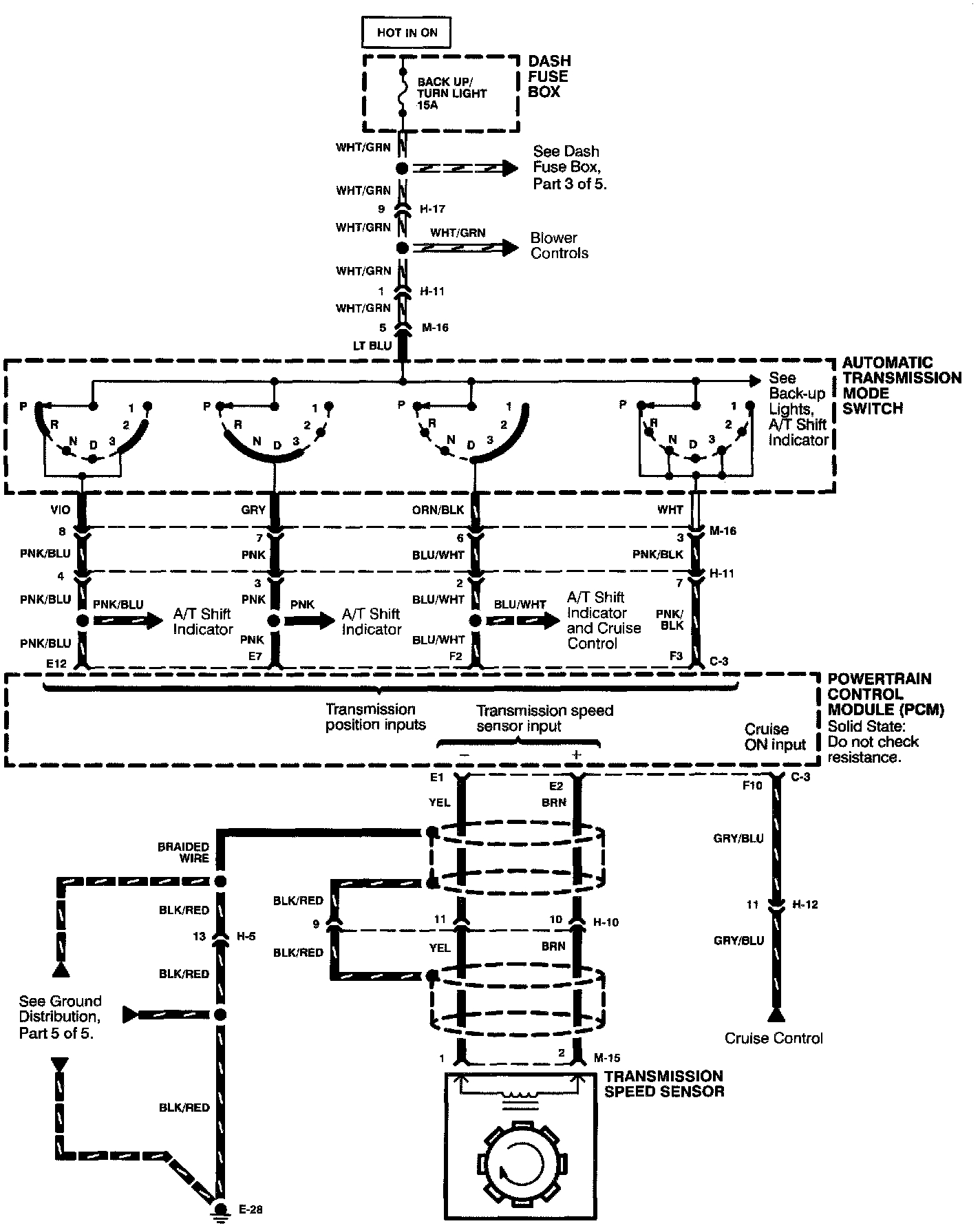

Automatic Transmission Controls (Part 3 Of 4)
A/T Gear Position Switch
Cruise Control Unit
Dash Fuse Box
PCM
Transmission Speed Sensor

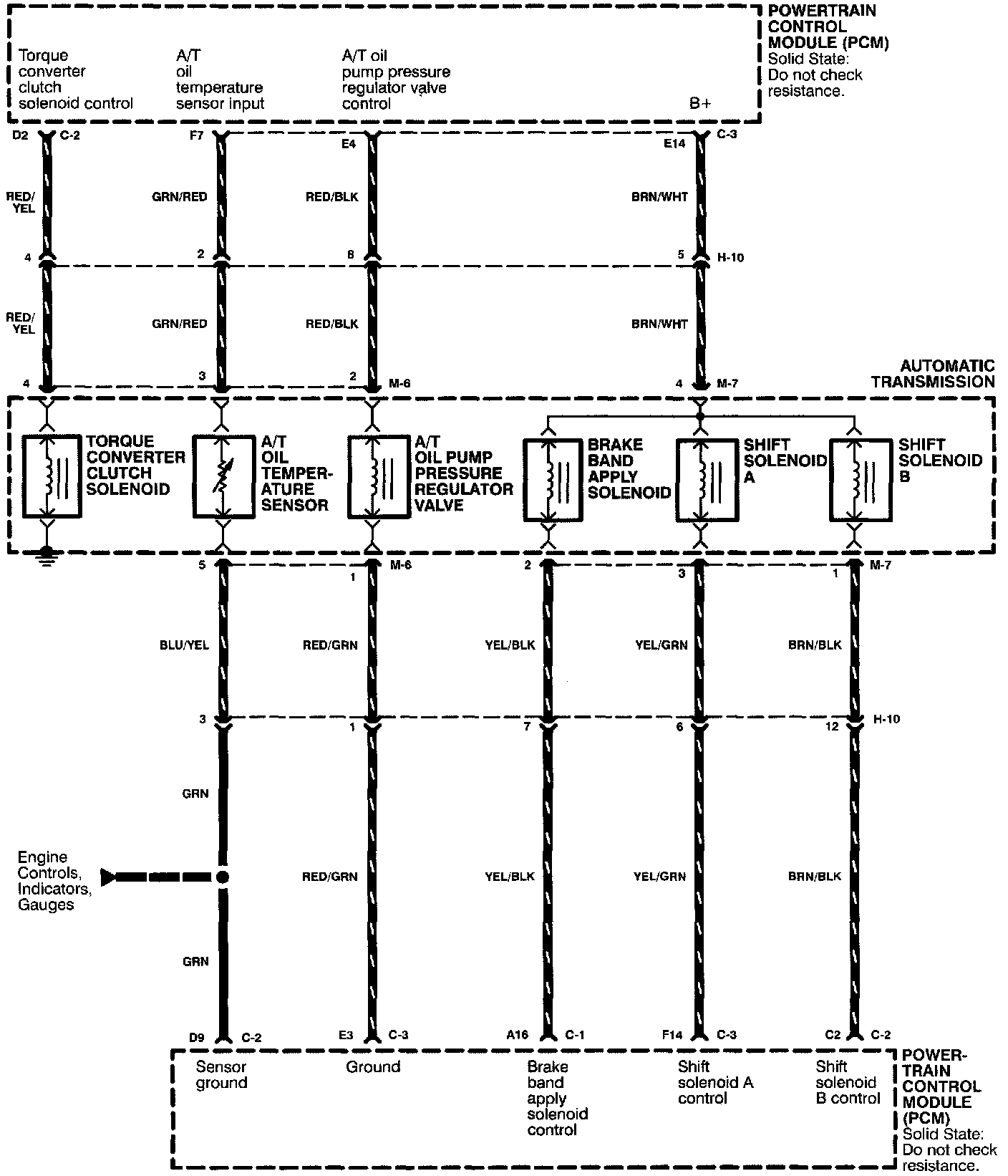

Automatic Transmission Controls (Part 4 Of 4)
Automatic Transmission
- Torque Converter Clutch Solenoid
- A/T Oil Temperature Sensor
- A/T Oil Pump Pressure Regulator Valve
- Brake Band Apply Solenoid
- Shift Solenoid A
- Shift Solenoid B
PCM
