Connecting Rod Thrust Clearance

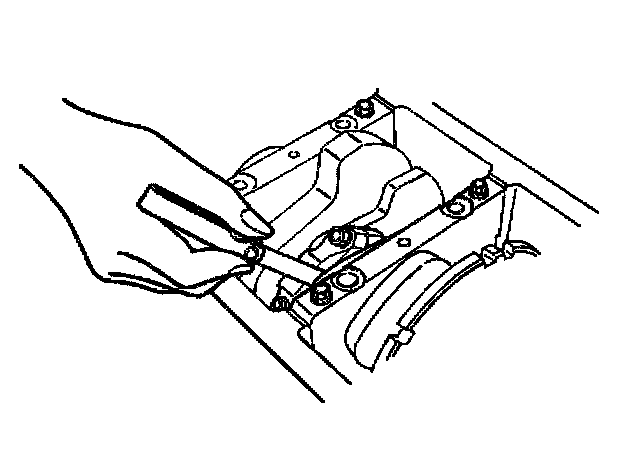

Measure the connecting rod thrust clearance. Use a feeler gauge to measure the thrust clearance at the large end of the connecting rod. If the clearance exceeds the specified limit, the connecting rod must be replaced.

Standard 0.16 mm - 0.35 mm (0.0063 inch - 0.0138 inch)
Limit 0.40 mm (0.0157 inch)
