Service Specifications

Main Bearing Clearance
Standard 0.019 mm - 0.043 mm (0.0007 inch - 0.0017 inch)
Limit 0.08 mm (0.0031 inch)

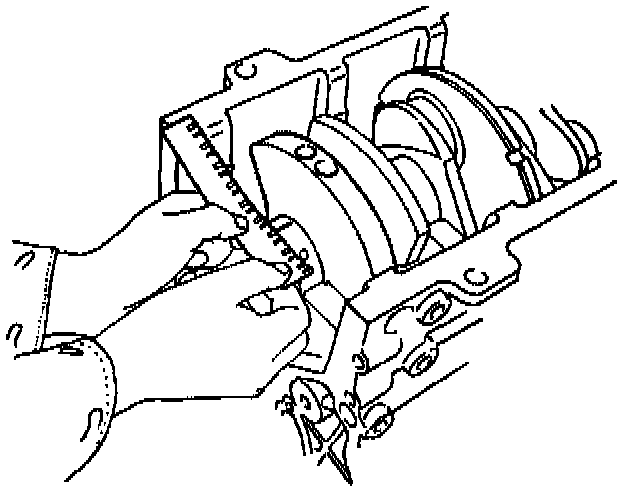

NOTE: Measure the plastigage width and determine the oil clearance. If the oil clearance exceeds the specified limit, replace the main bearings as a set and/or replace the crankshaft.
