Gear Position Switch Test

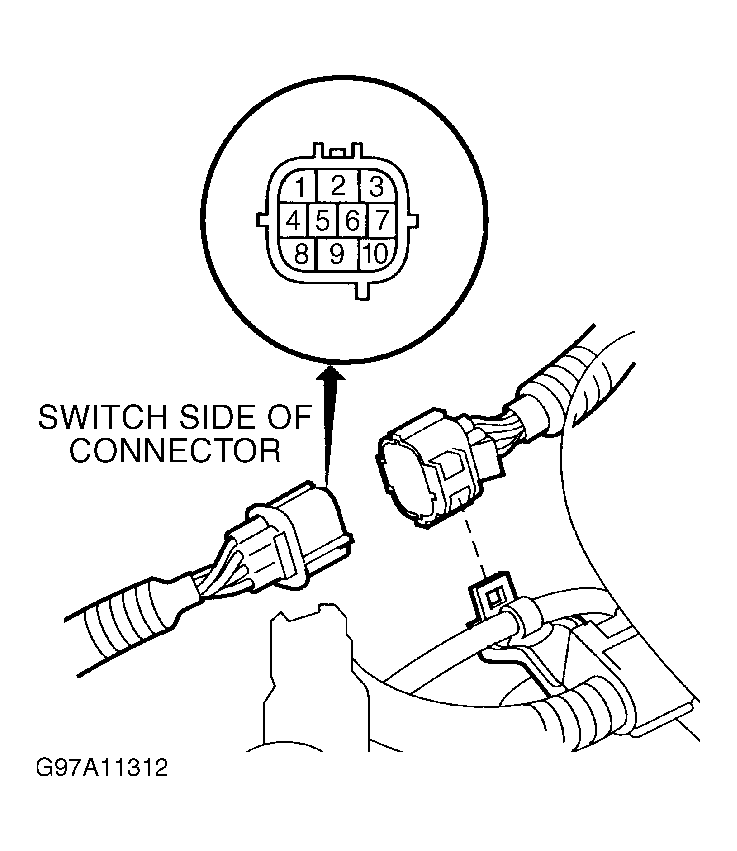

- Disconnect gear position switch connector, located above transaxle, near gear position switch. See Fig 1 .
- Using a DVOM, check continuity between specified terminals of gear position switch. See GEAR POSITION SWITCH CONTINUITY table. Replace gear position switch if continuity is not as specified.
GEAR POSITION SWITCH CONTINUITY
| Shift Lever Position | Continuity Between Terminals No. |
|---|---|
| Park | 1, 3 & 10 |
| Neutral | 1, 3 & 8 |
