Ignition Switch Test

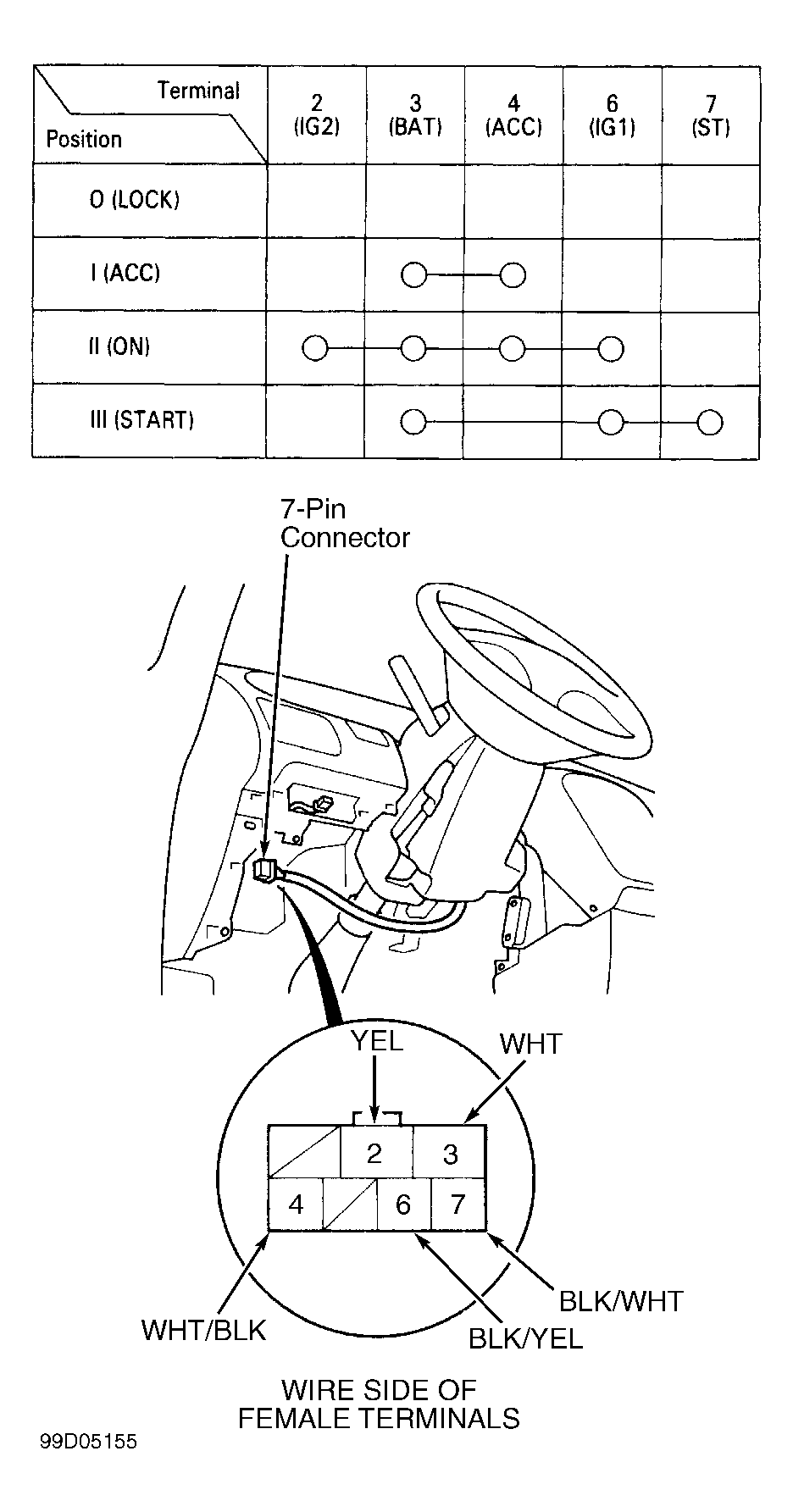

- Remove lower instrument panel cover and driver-side knee bolster. Disconnect 7-pin connector from underdash fuse/relay box. See Fig 1 .
- Using DVOM, check continuity between specified connector terminals, with ignition switch in appropriate position. If continuity is not as specified, replace ignition switch.
