Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/T Shift Indicator Control Unit | Behind dash, left of steering column. |
| Alarm & Relay Control Unit | Above right kick panel. |
| Cruise Control Unit | Behind right kick panel. |
| Electronic Brake Control Module (EBCM) | Right front of engine compartment. |

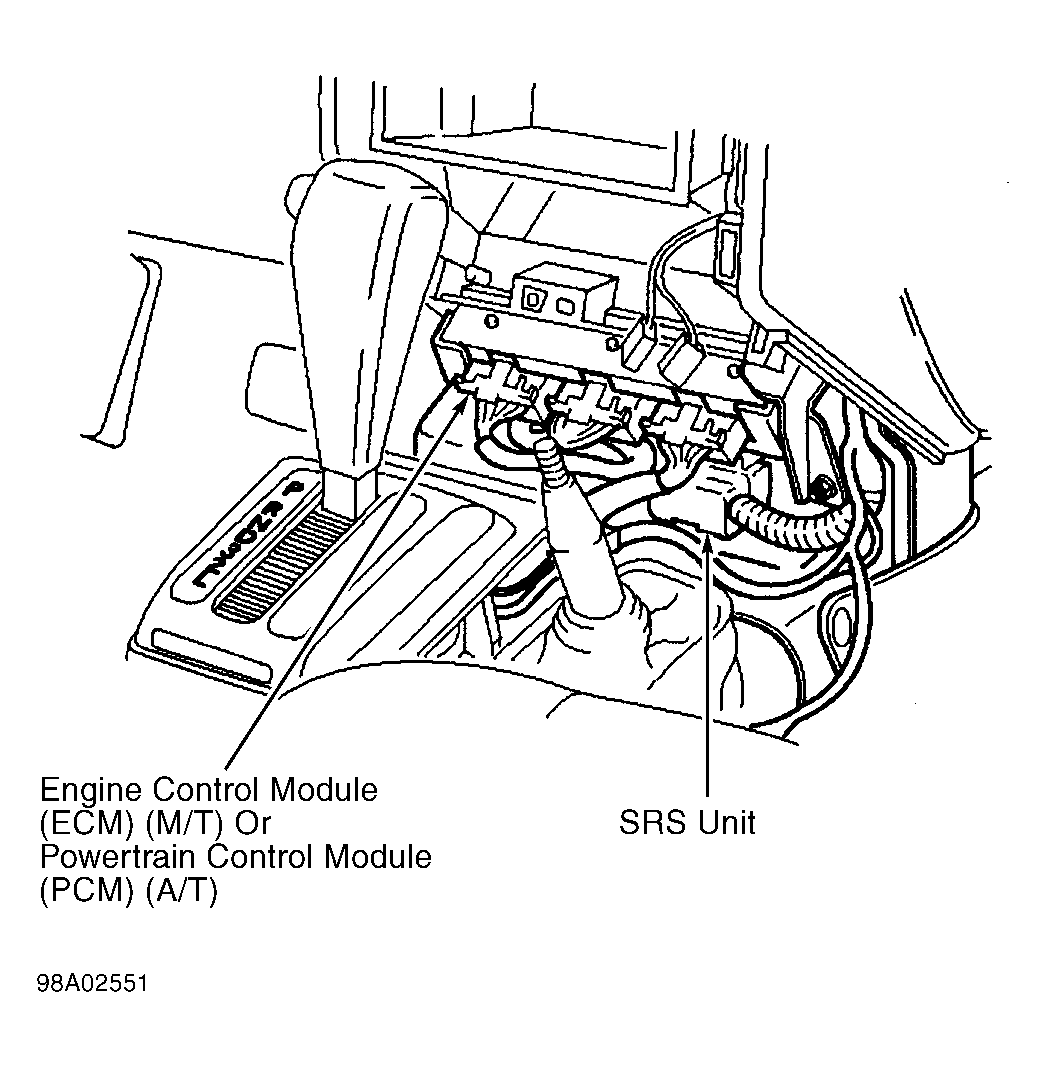

| Engine Control Module (ECM) (M/T) | Behind center of dash, below radio. See Figure . |
| Flasher Unit | Behind left kick panel, above dash fuse box. |
| Keyless Entry & Security Control Unit | Behind lower instrument cluster panel, below radio. |
| Moon Roof Control Unit | Center underside of ceiling, above headliner. |
| Powertrain Control Module (PCM) (A/T) | Behind center of dash, below radio. See Figure . |
| Shift Lock Controller | Below center console, forward of gear selector. |
| Shift On The Fly Control Unit | Behind lower instrument cluster panel, below radio. |
| SRS Unit | Behind front console. See Figure . |
| Torque On Demand (TOD) Control Unit | Beneath front passenger's seat. |
