General Module

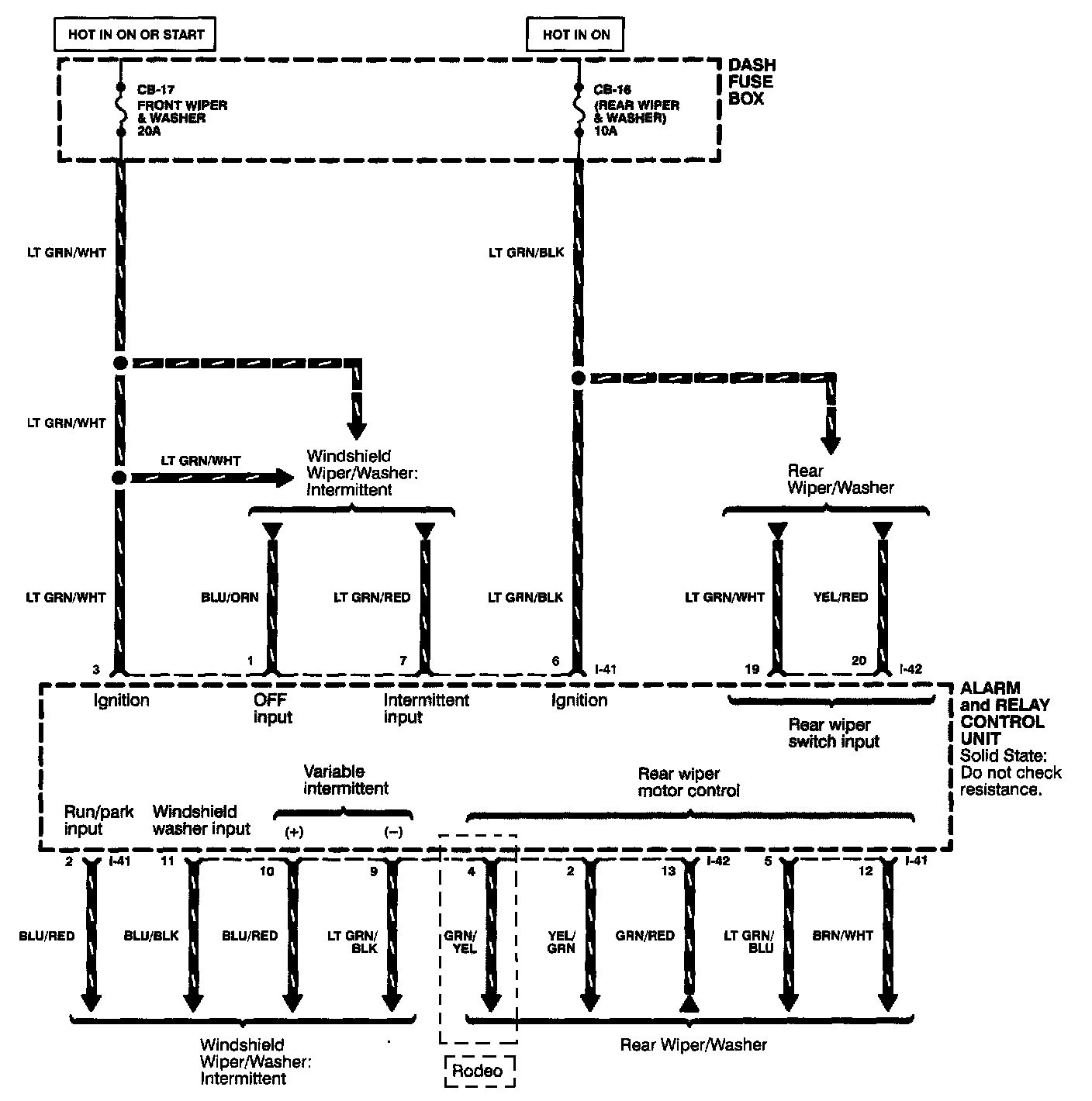

Alarm & Relay Controls (1 Of 3):

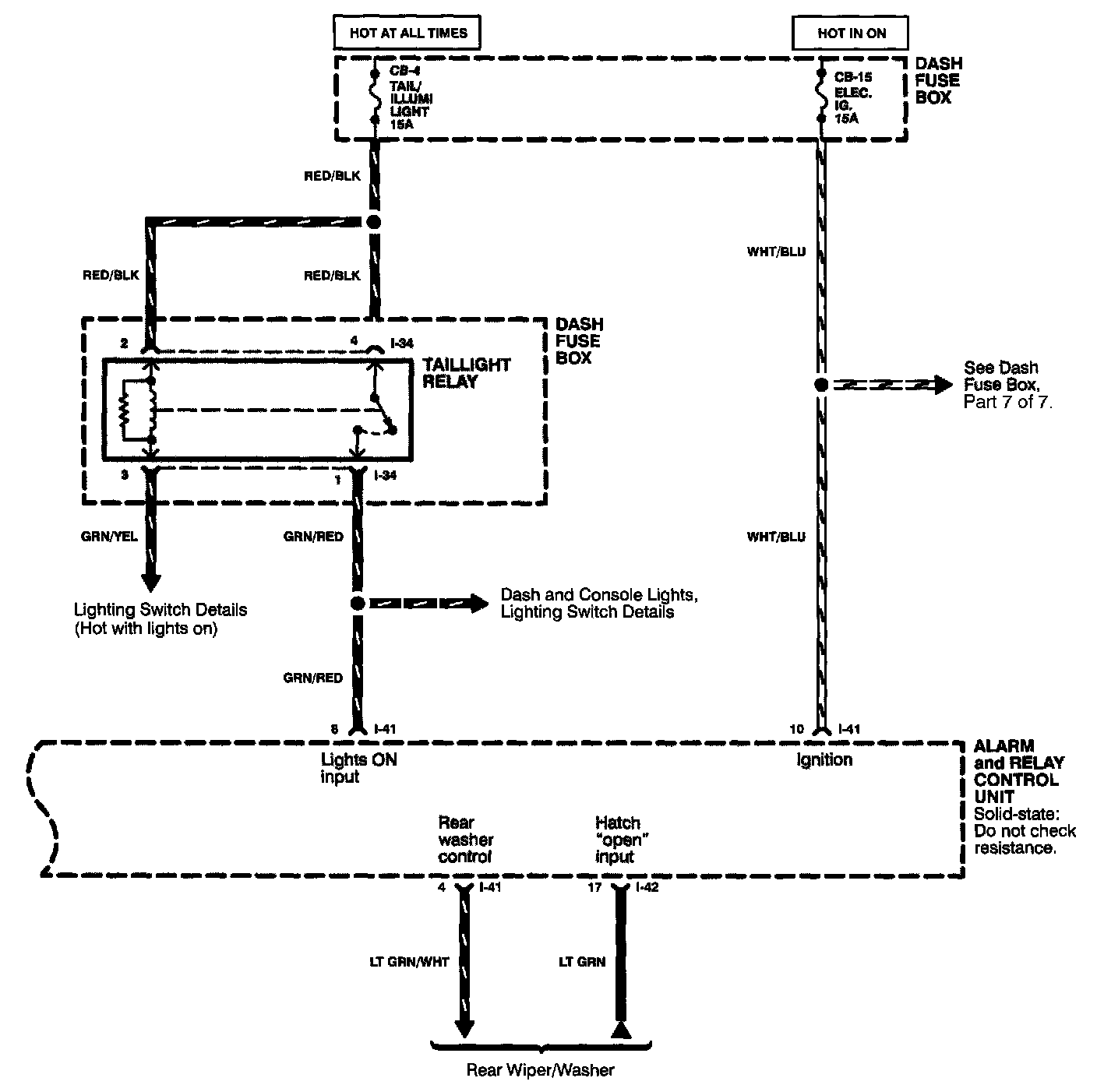

Alarm & Relay Controls (2 Of 3):

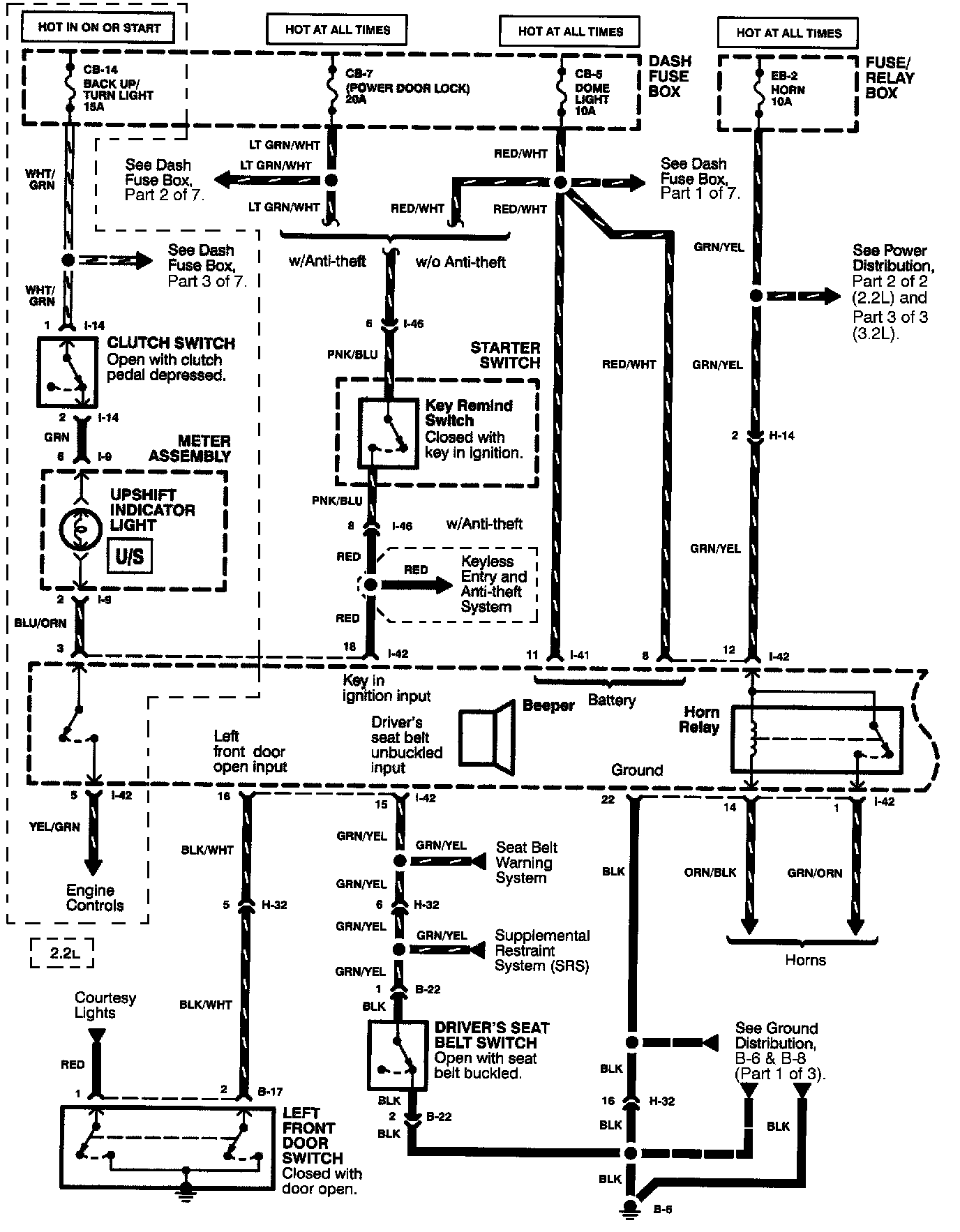

Alarm & Relay Controls (Part 3 Of 3):
