Compressor HVAC: Locations

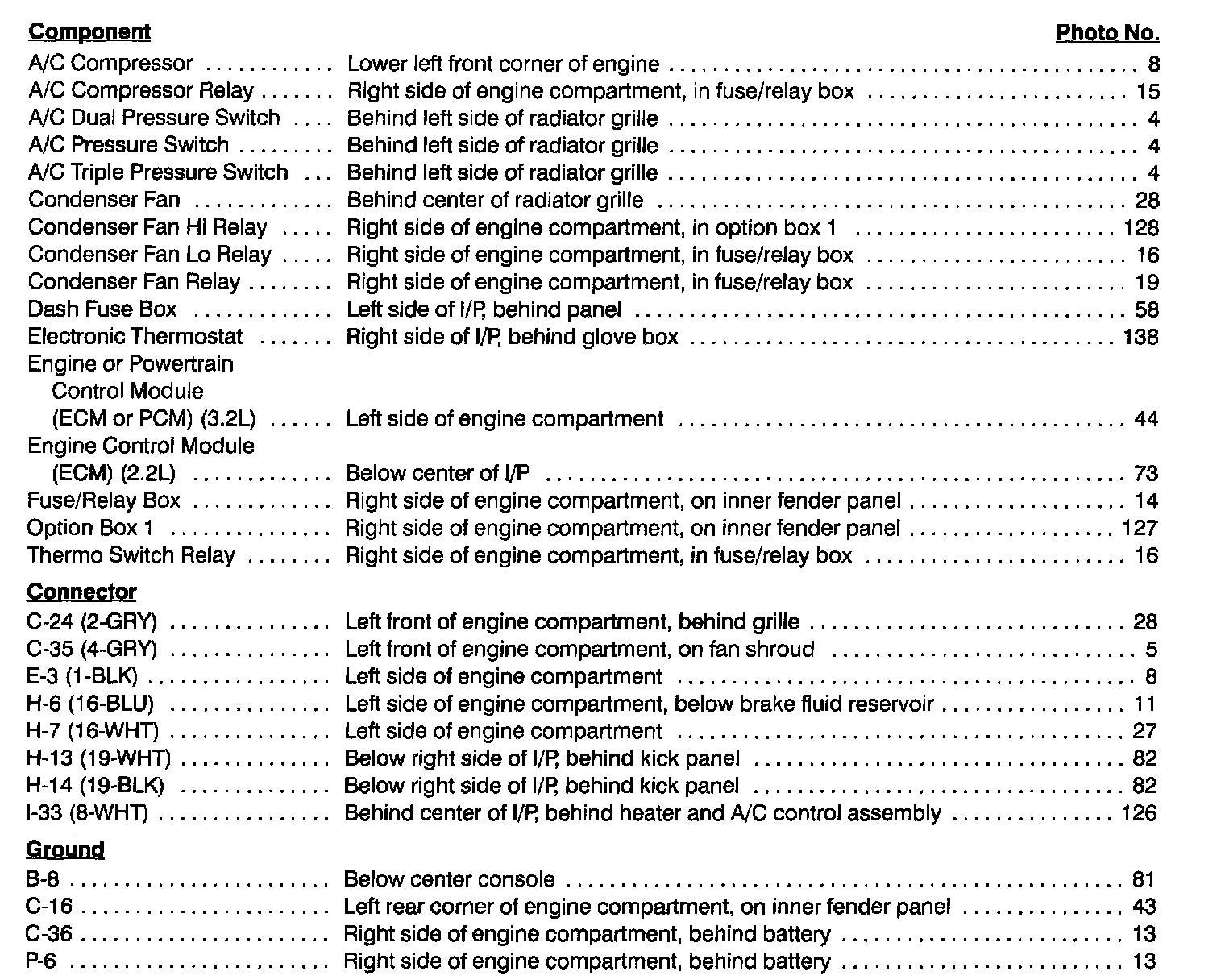

A/C Compressor Control Index:

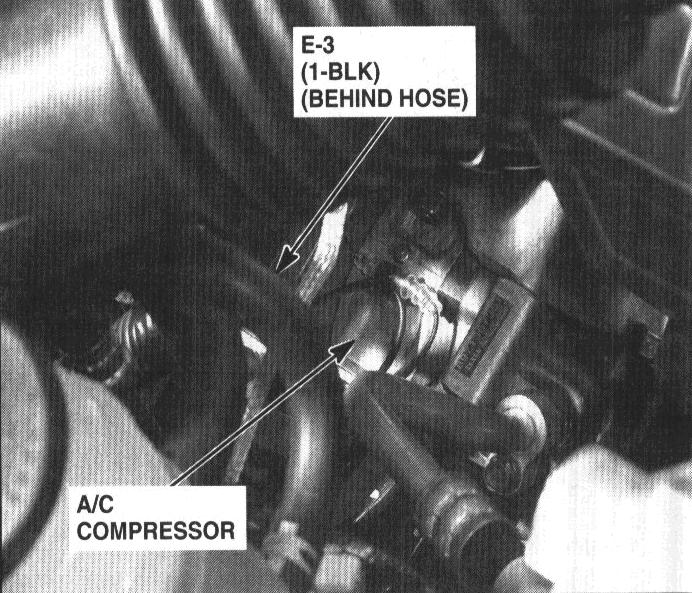

8 - Left Front Of 2.2L Engine Compartment (3.2L Similar):

Component Location Index photographs can be found at Component Locations.
Locations
