Power and Ground Distribution: Specifications

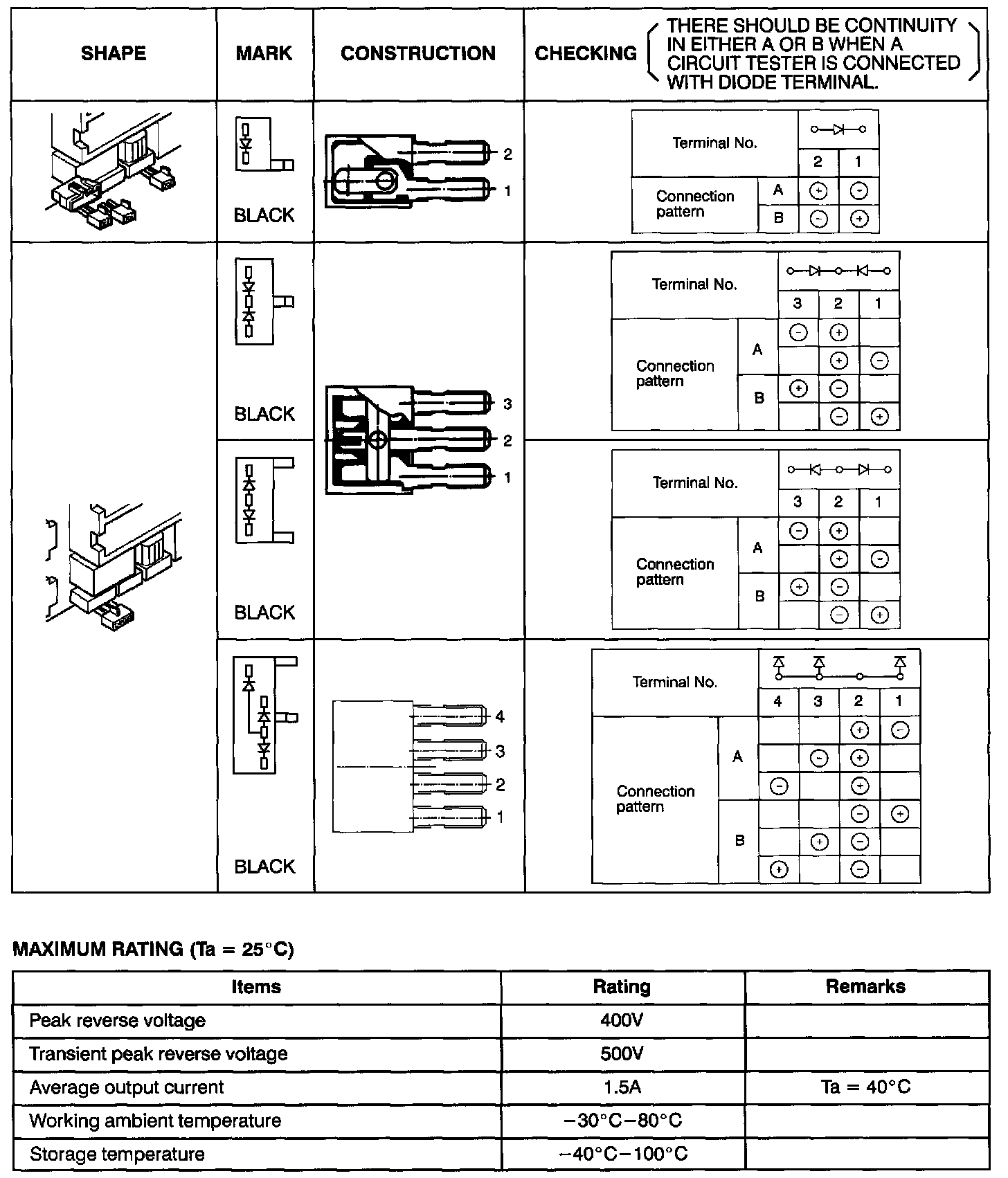

Diode Specifications And Configurations:

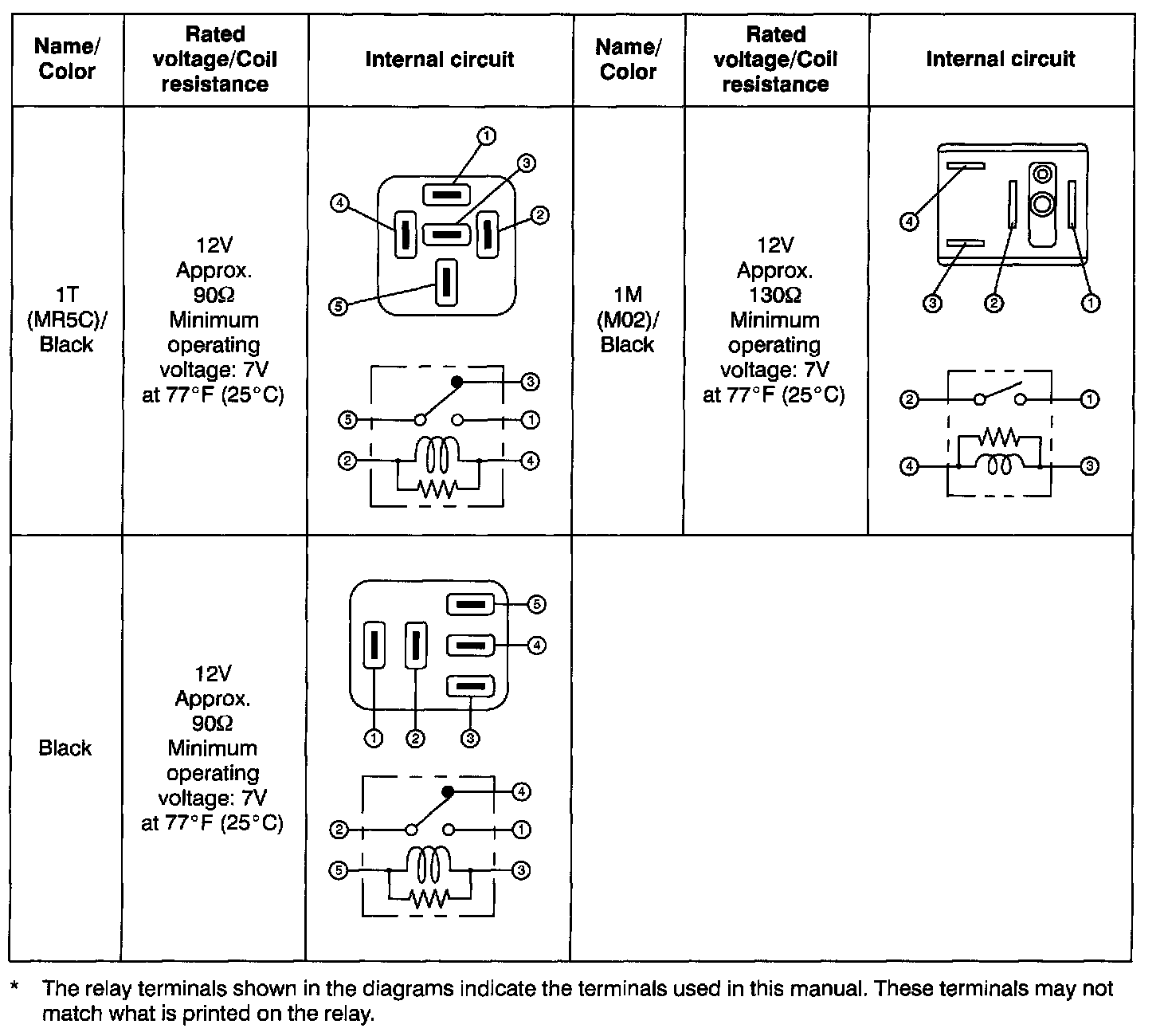

Relay Specifications And Configurations:
