Undercarriage Components

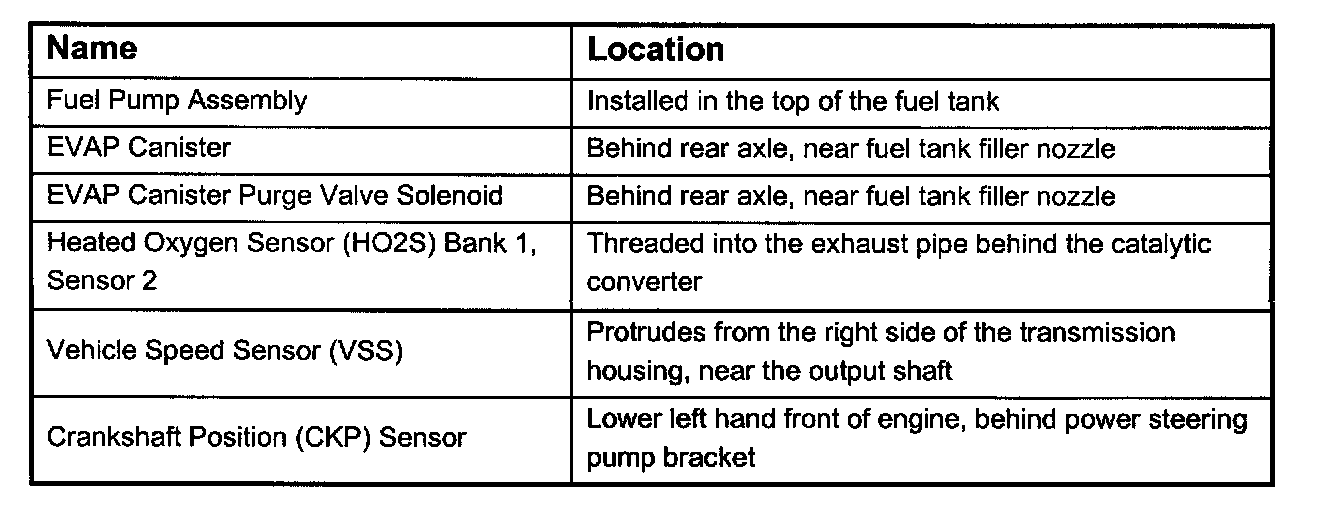

Undercarriage Component Locator/Table:

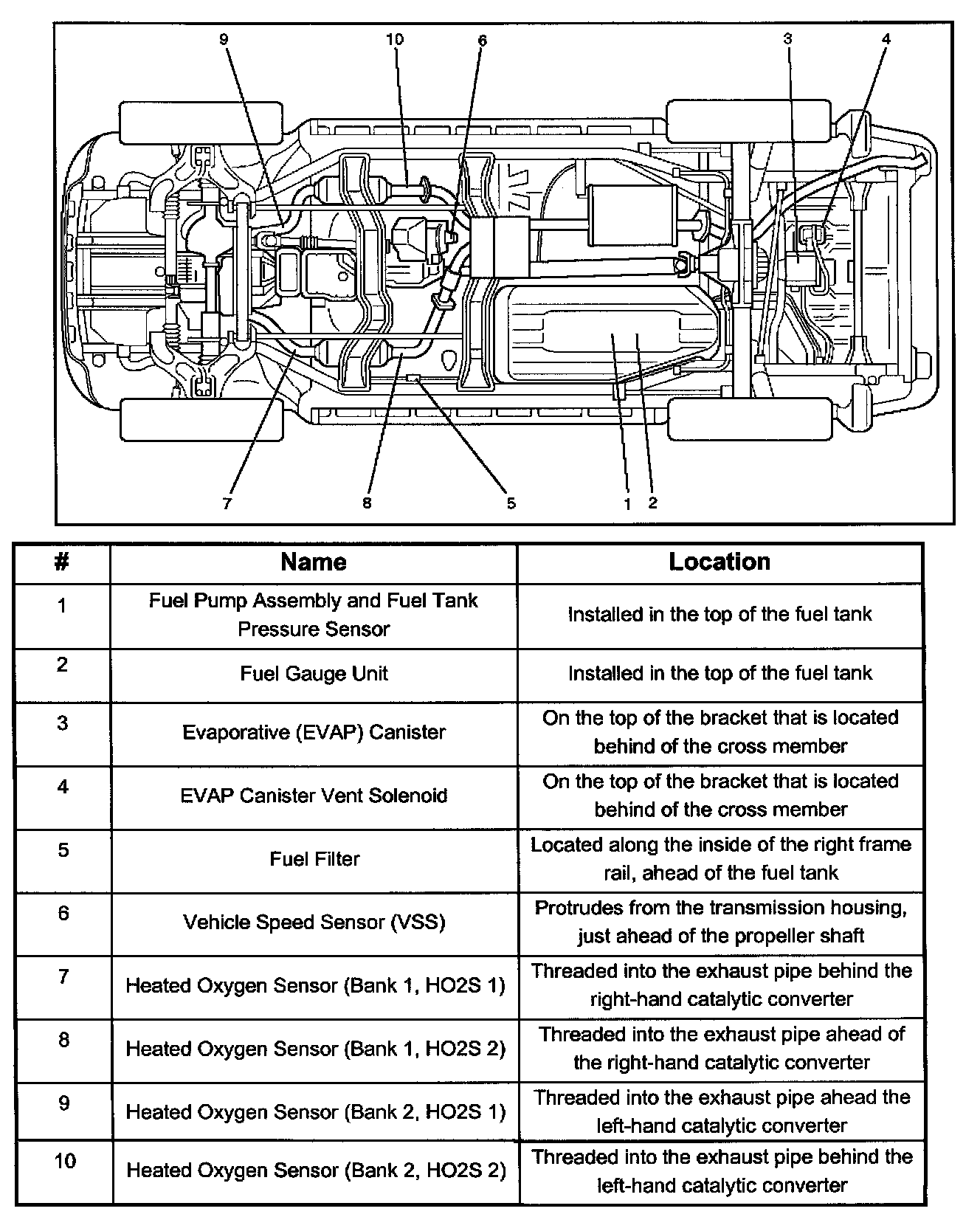

Undercarriage Component Locator Table:
