Lifting Instructions

CAUTION:
- If a lifting device other than the original jack is used, it is most important that the device be applied only to the correct lifting points Raising the vehicle from any other point may result in serious damage.
- When jacking or lifting a vehicle at the frame side rail or other prescribed lift points, be certain that lift pads do not contact the catalytic converter, brake pipes or cables, or fuel lines. Such contact may result in damage or unsatisfactory vehicle performance.

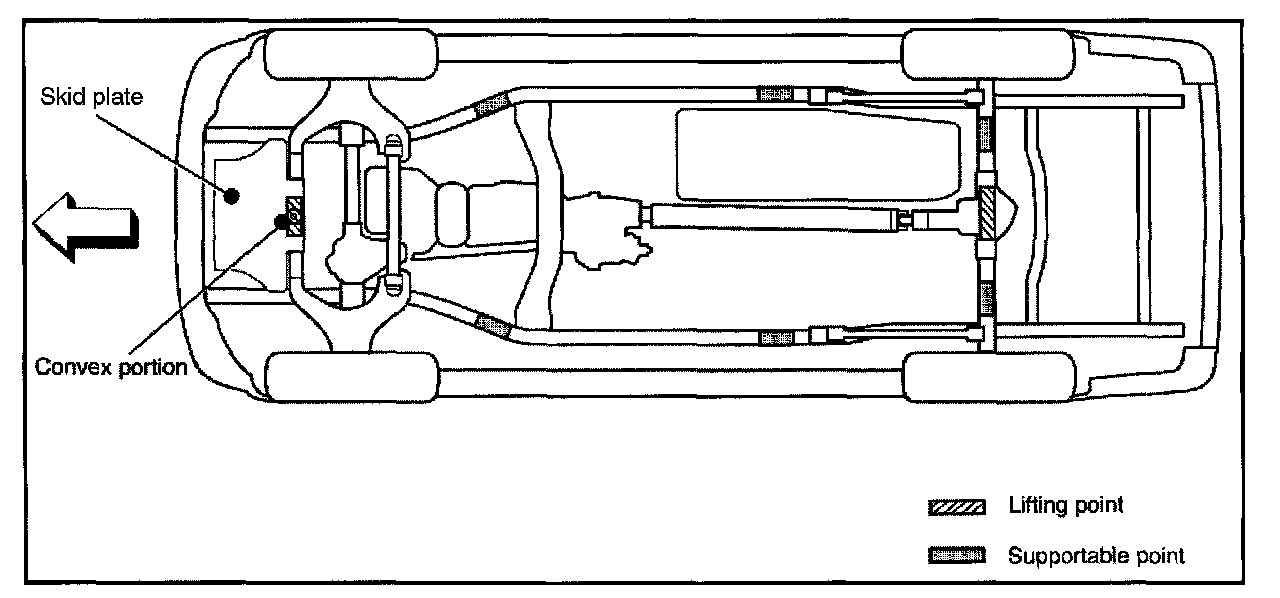

Lifting Points and Supportable Point Locations




Lifting Point: Front

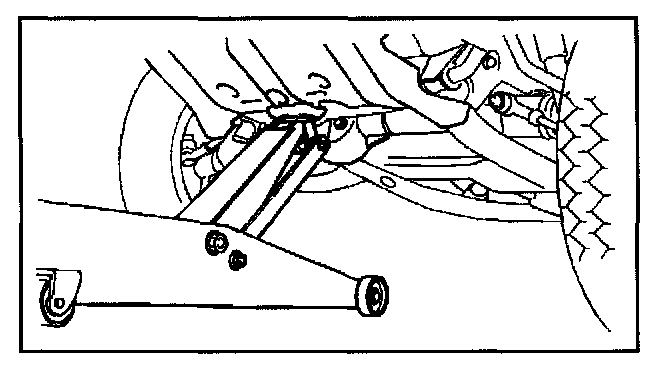

When using a floor jack, lift on the Convex portion of the skid plate.




Supportable Point: Front

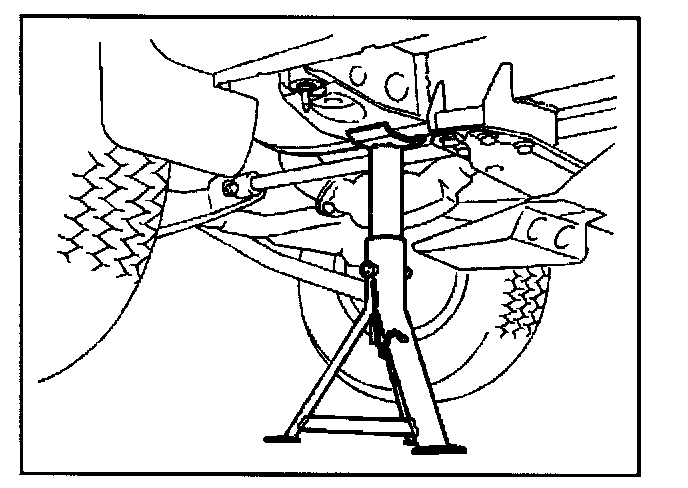

Position the chassis stands at the bottom of the frame sidemember, behind the front wheel.




Lifting Point: Rear

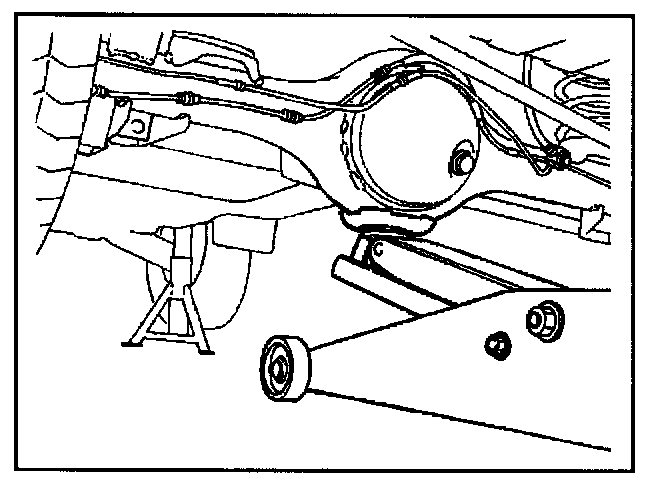

Position the floor jack at the center of the rear axle case when lifting the vehicle.




Supportable Point: Rear

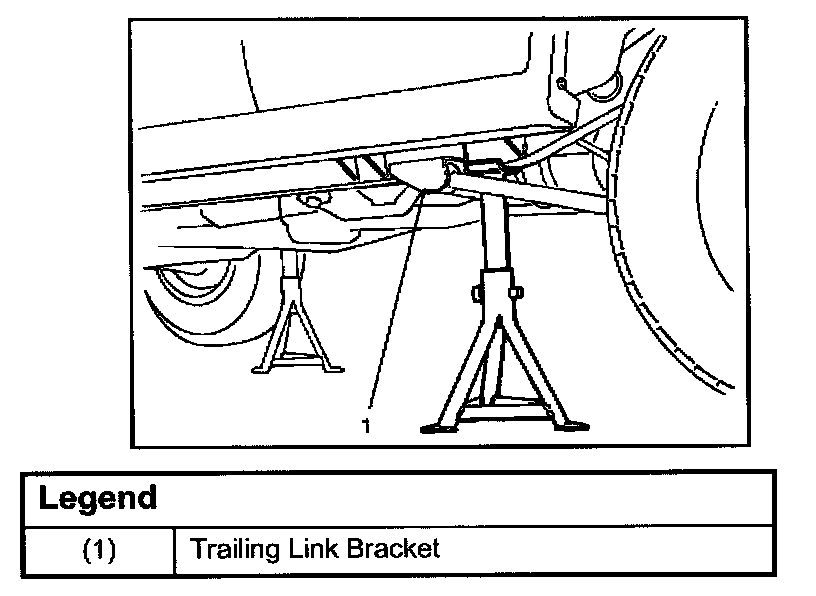

Position the chassis stands at the bottom of the frame sidemember, just behind the trailing link bracket.




Supportable Point: Rear

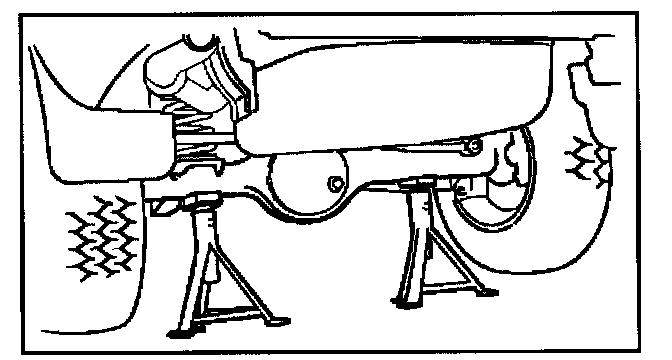

Position the chassis stands at the bottom of the rear axle case.
