Axle Nut

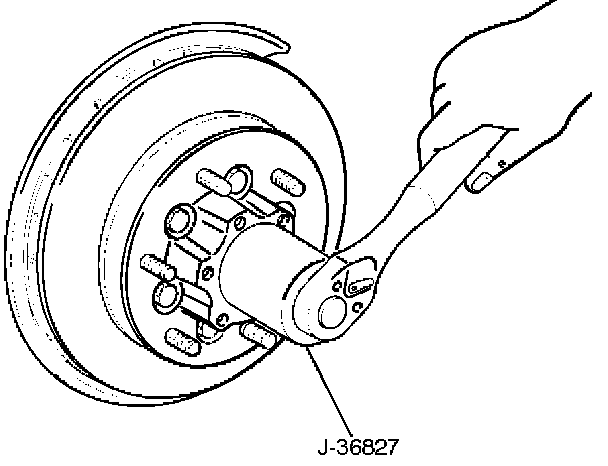

Install hub nut by using wrench J-36827.
Turn the place where there is a chamfer in the tapped hole to the outer side, and attach the nut.

Preload Adjustment
1. Tighten the hub nut to 29.4 Nm (21.7 ft. lbs.), then loosen the nut to the full.

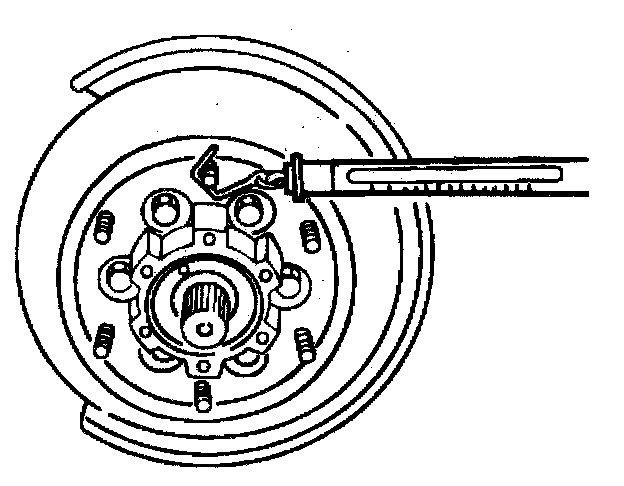

2. Tighten the hub nut to the value given below, using a spring scale on the wheel pin.





Bearing Preload





If the measured bearing preload is outside the specifications, adjust it by loosening or tightening the bearing nut.
