Power Window Switch Driver Seat Side

Power Window System

Power Window Switch Driver Seat Side

Removal

1. Disconnect the battery ground cable.

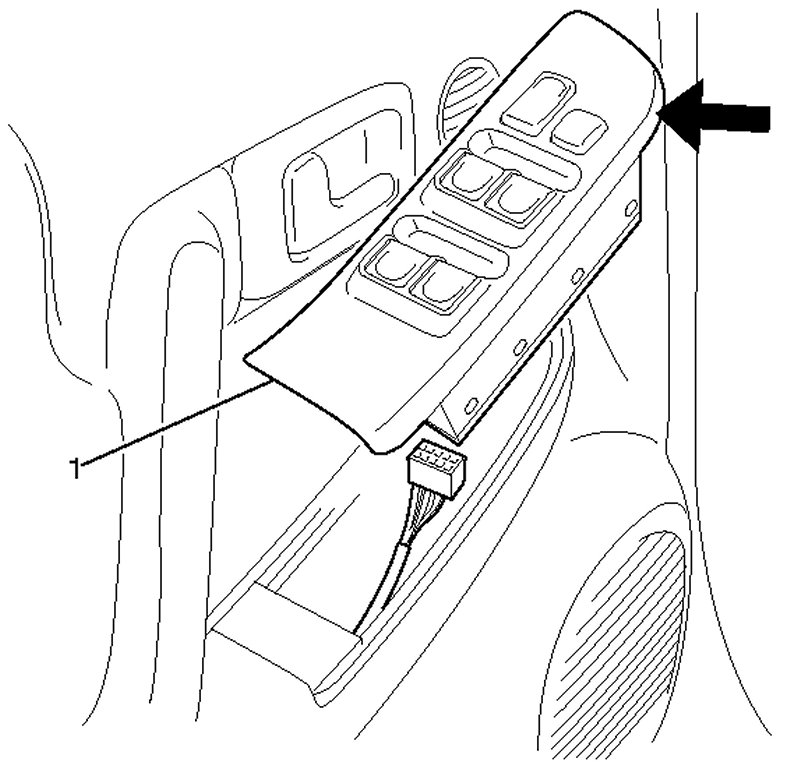

2. Remove the switch (1).
- Pull out the switch by pushing the spring with the tip of a screwdriver.
- Disconnect the connector.







Installation

To install, follow the removal steps in the reverse order.
