Wiper Control Module: Service and Repair

Removal
1. Disconnect the battery ground cable.

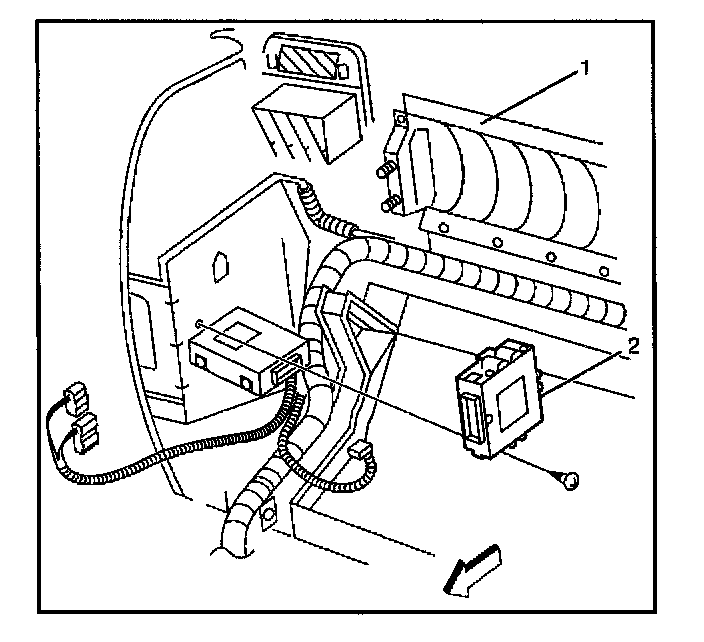

2. Remove the instrument panel (1).
3. Remove the alarm and relay control unit (2). Disconnect the connector.

Installation
To install, follow the removal steps in the reverse order.
