Home
>>
Isuzu
>>
2000
>>
Rodeo LS 4WD V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Brake Caliper
>>
Front
>>
Disassembled View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

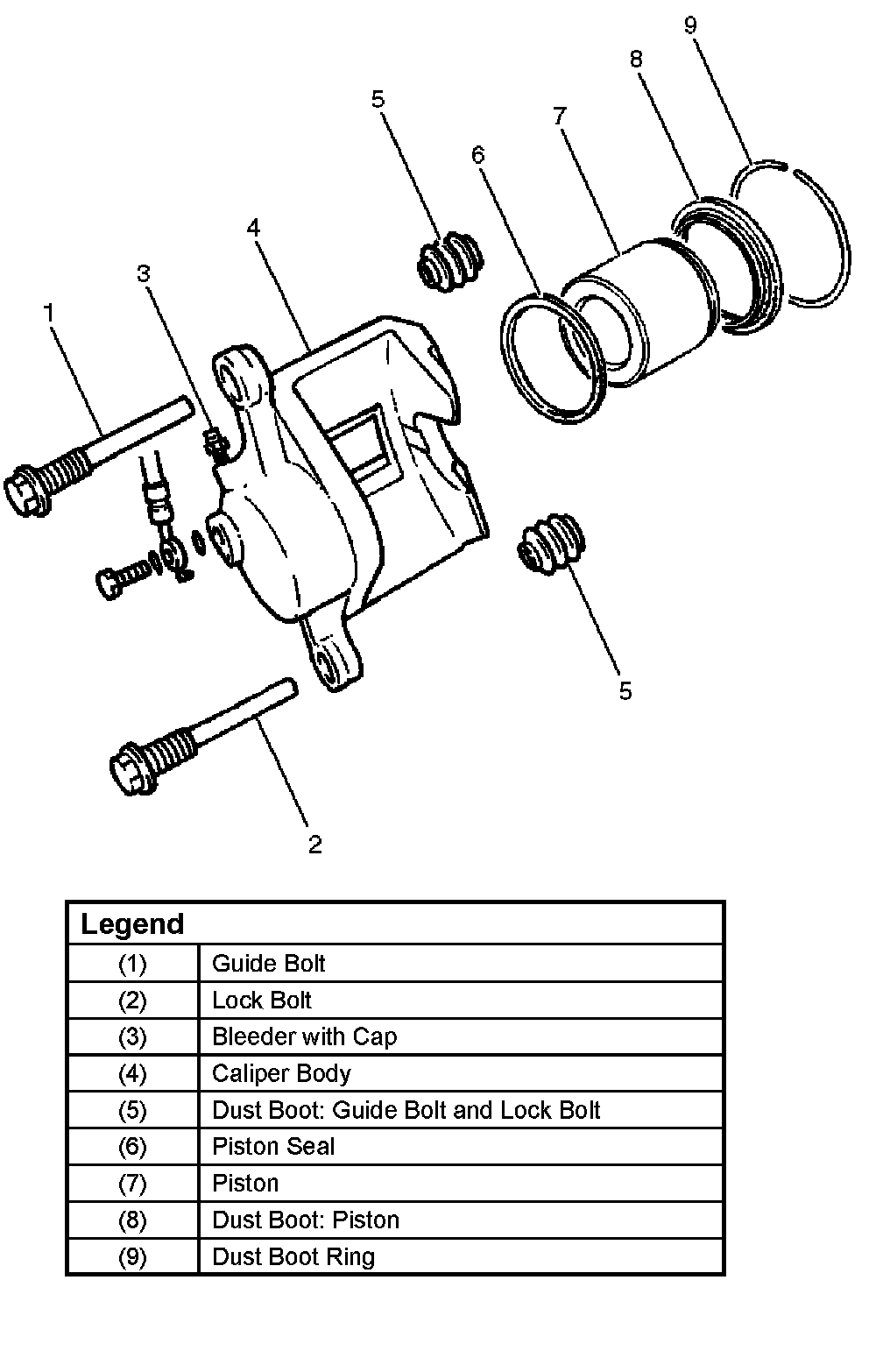

Disassembled View
