Instruments Test

Instruments Test

This test is conducted check Instruments for proper operation.
Tech 2 must be used for this test.

Test Procedure:
1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is "On".

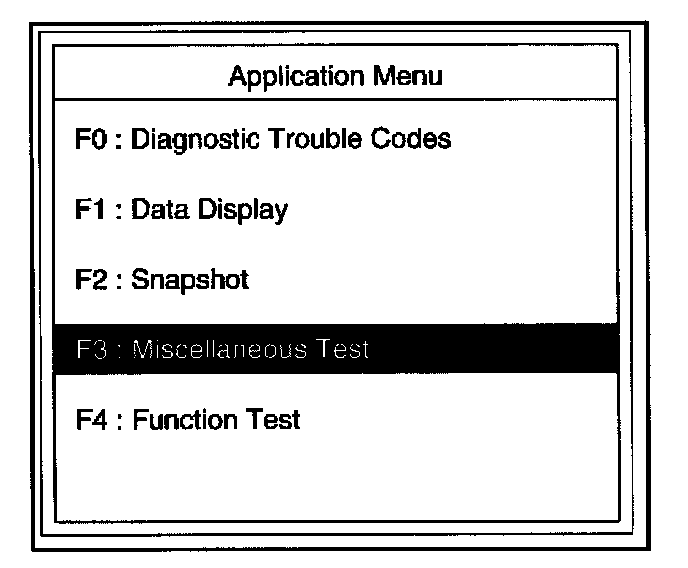

3. Select F3: Miscellaneous Test in the Application Menu.

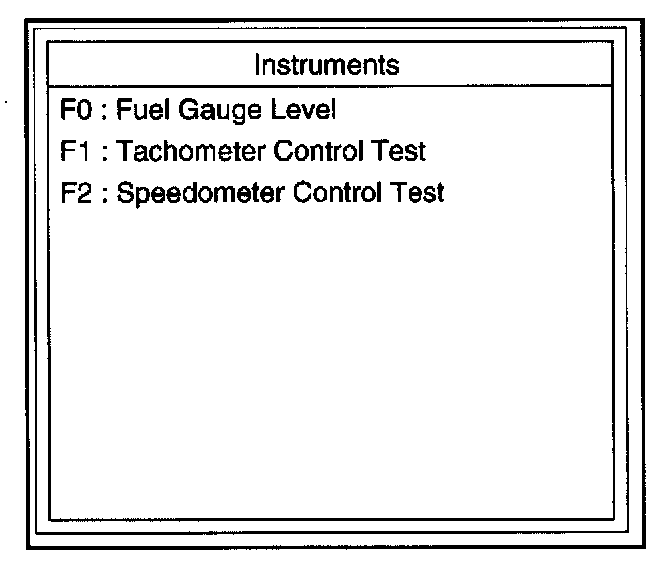

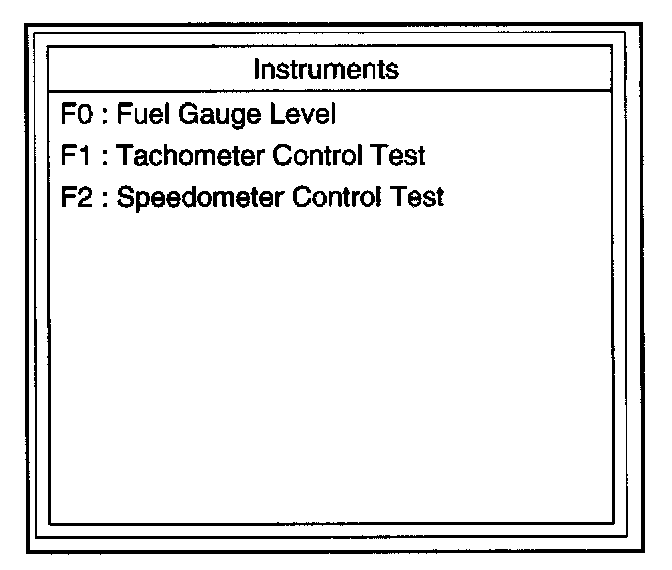

4. Select F4: Instruments in the Miscellaneous Menu.

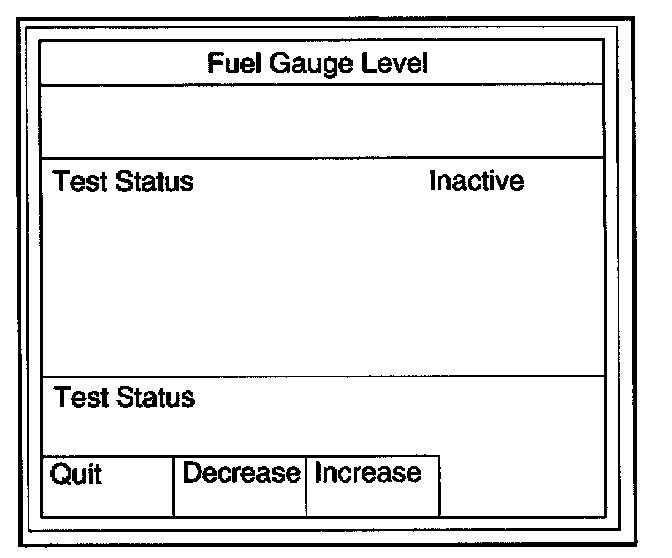

5. Select F0: Fuel Gauge level.




6. Push "Decrease" or "Increase" soft key.

7. Control Fuel Level and check data list.
- If data list and Fuel gauge meter changes, Fuel Gauge level is normal.

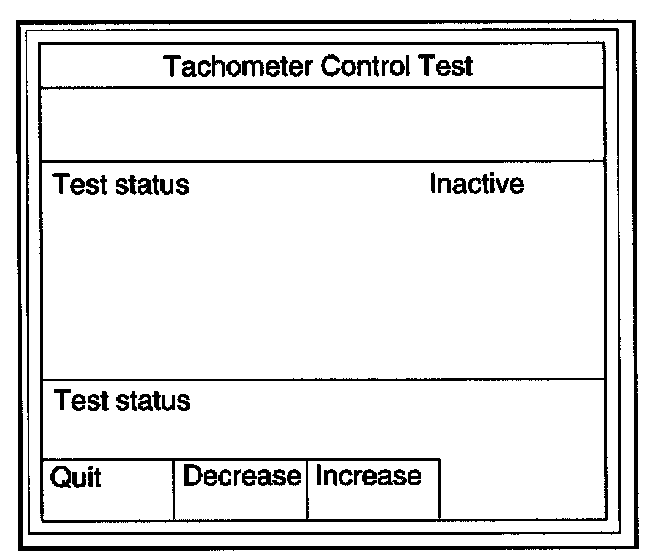

8. Select F1: Tachometer Control Test.




9. Push "Inactive" or "active" soft key.




10. Control tachometer and data list.
- If data list and meter changes, the tachometer control is normal.
