Electrical Diagrams
Automatic Transmission Controls (1 Of 4):
Automatic Transmission Controls (2 Of 4):
Automatic Transmission Controls (3 Of 4):
Automatic Transmission Controls (4 Of 4):

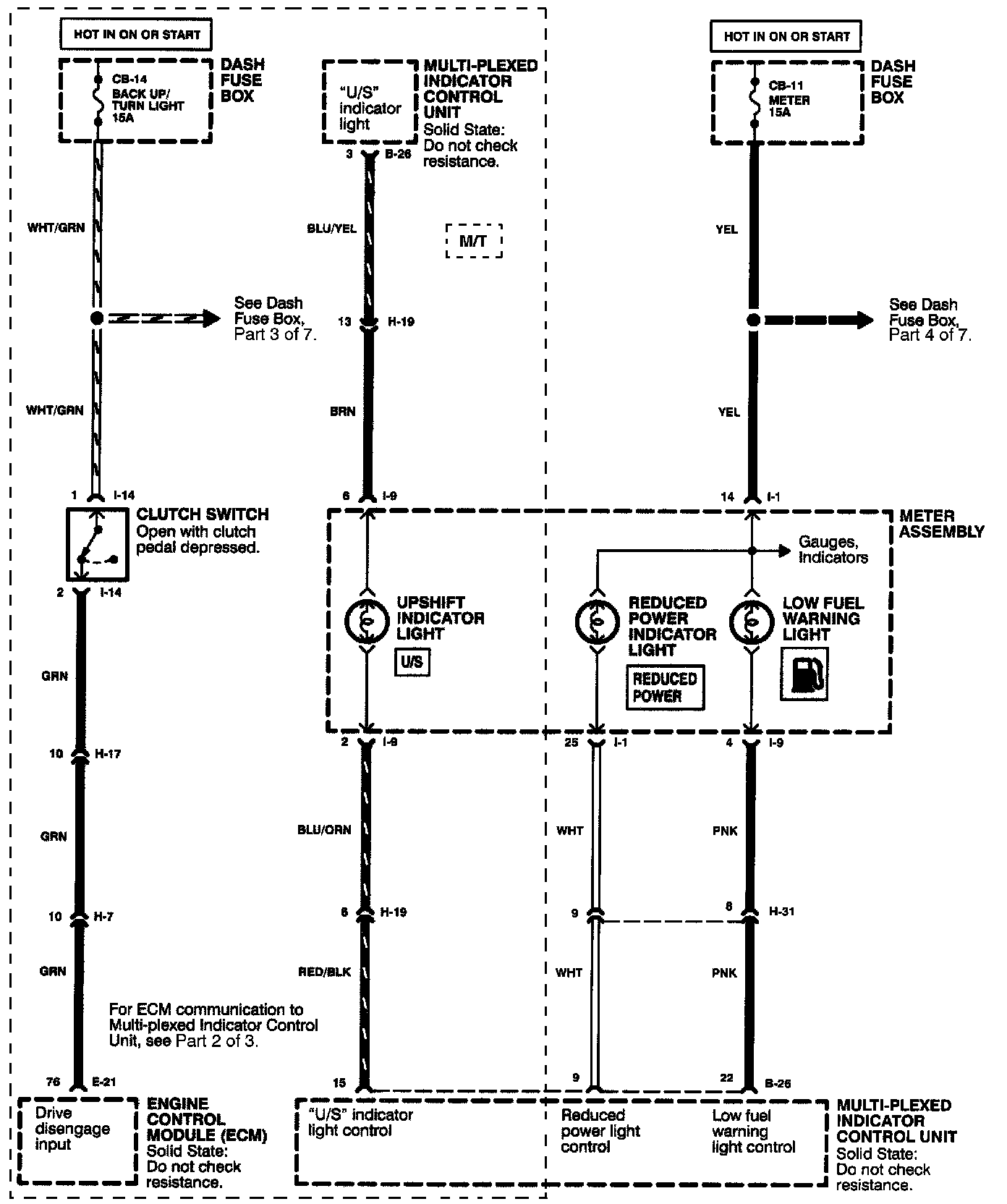

Multiplexed Indicator Control Unit (3.2L) (1 Of 3):

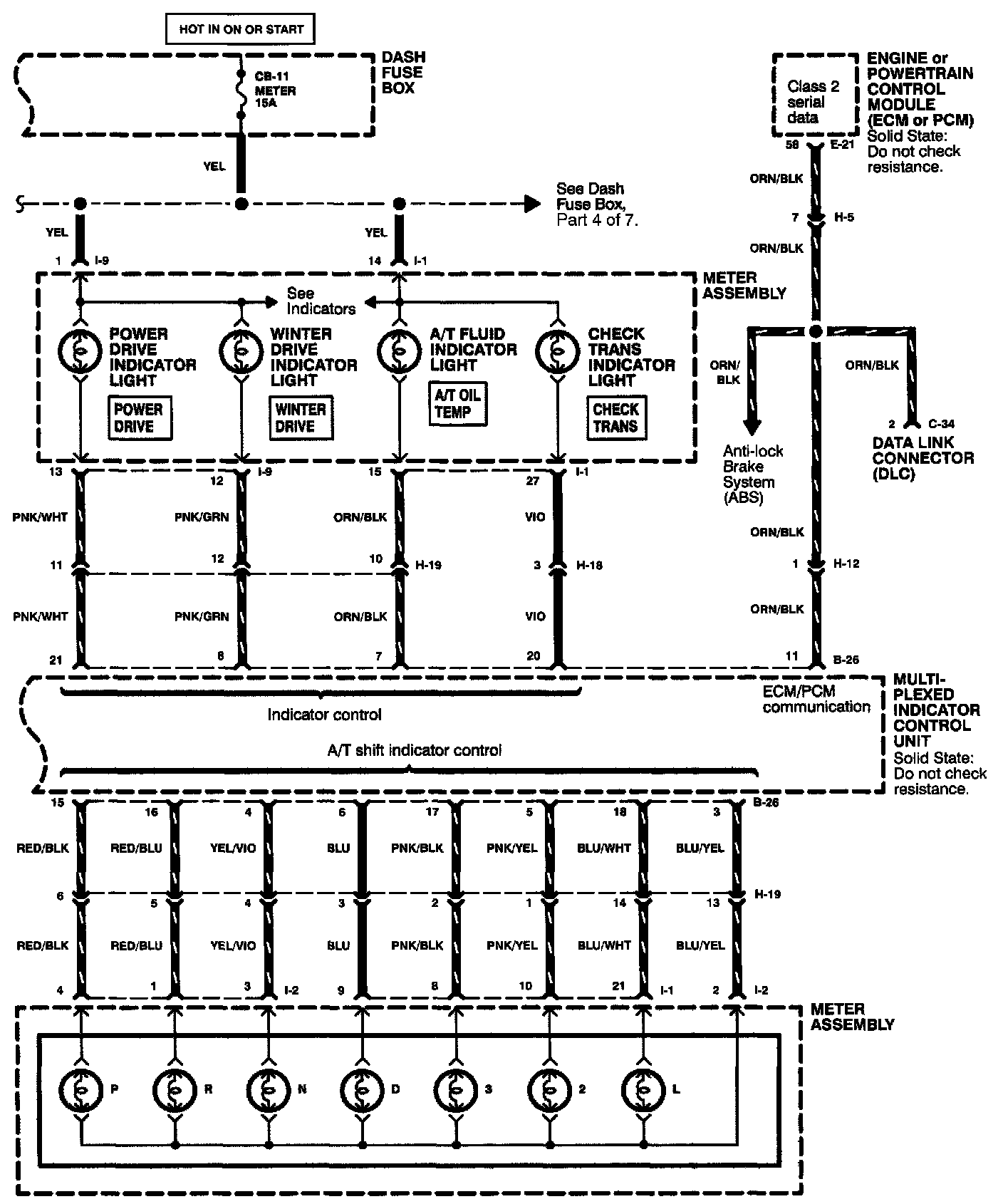

Multiplexed Indicator Control Unit (3.2L) (2 Of 3):

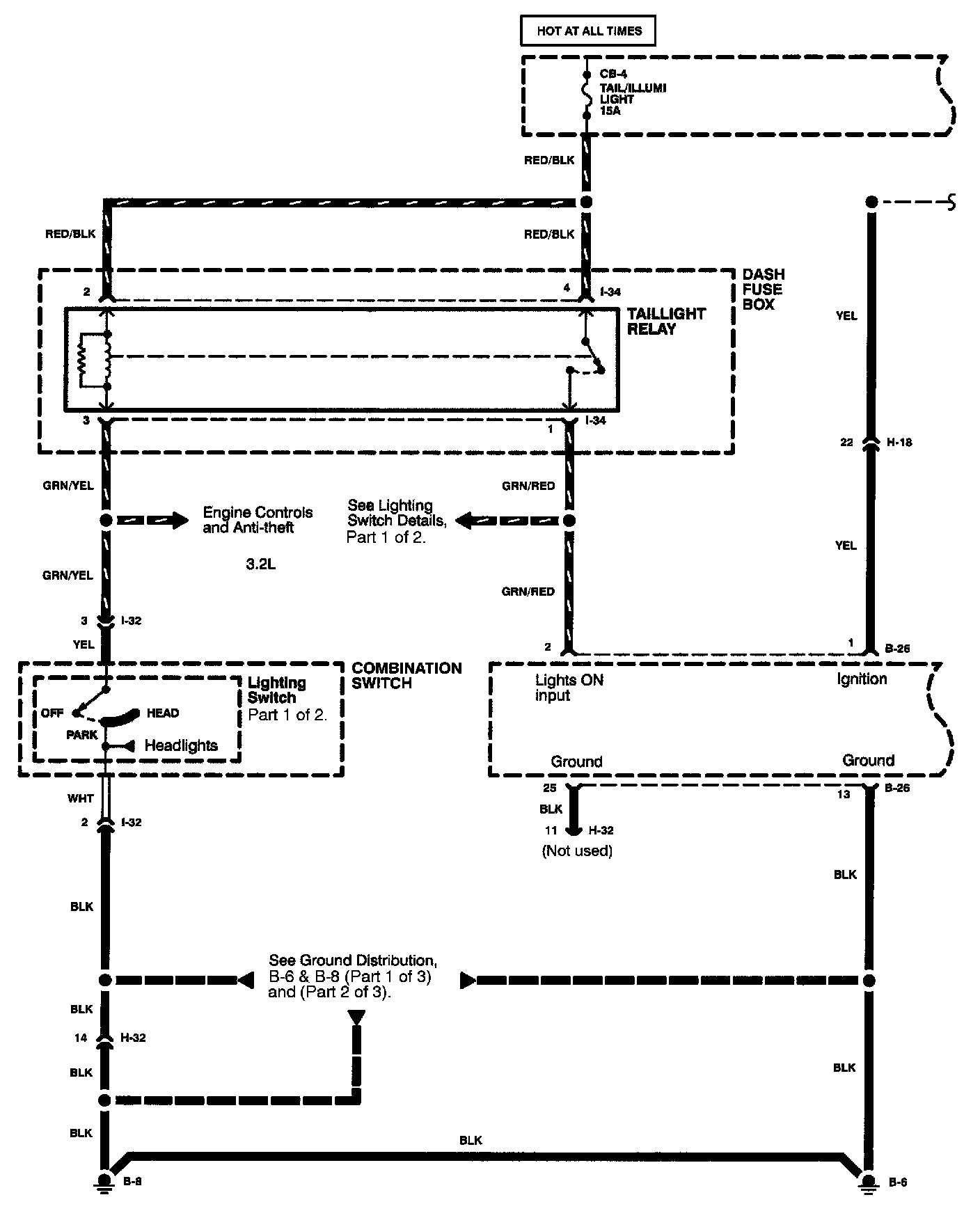

Multiplexed Indicator Control Unit (3.2L) (3 Of 3):
