Shift on the Fly Controller

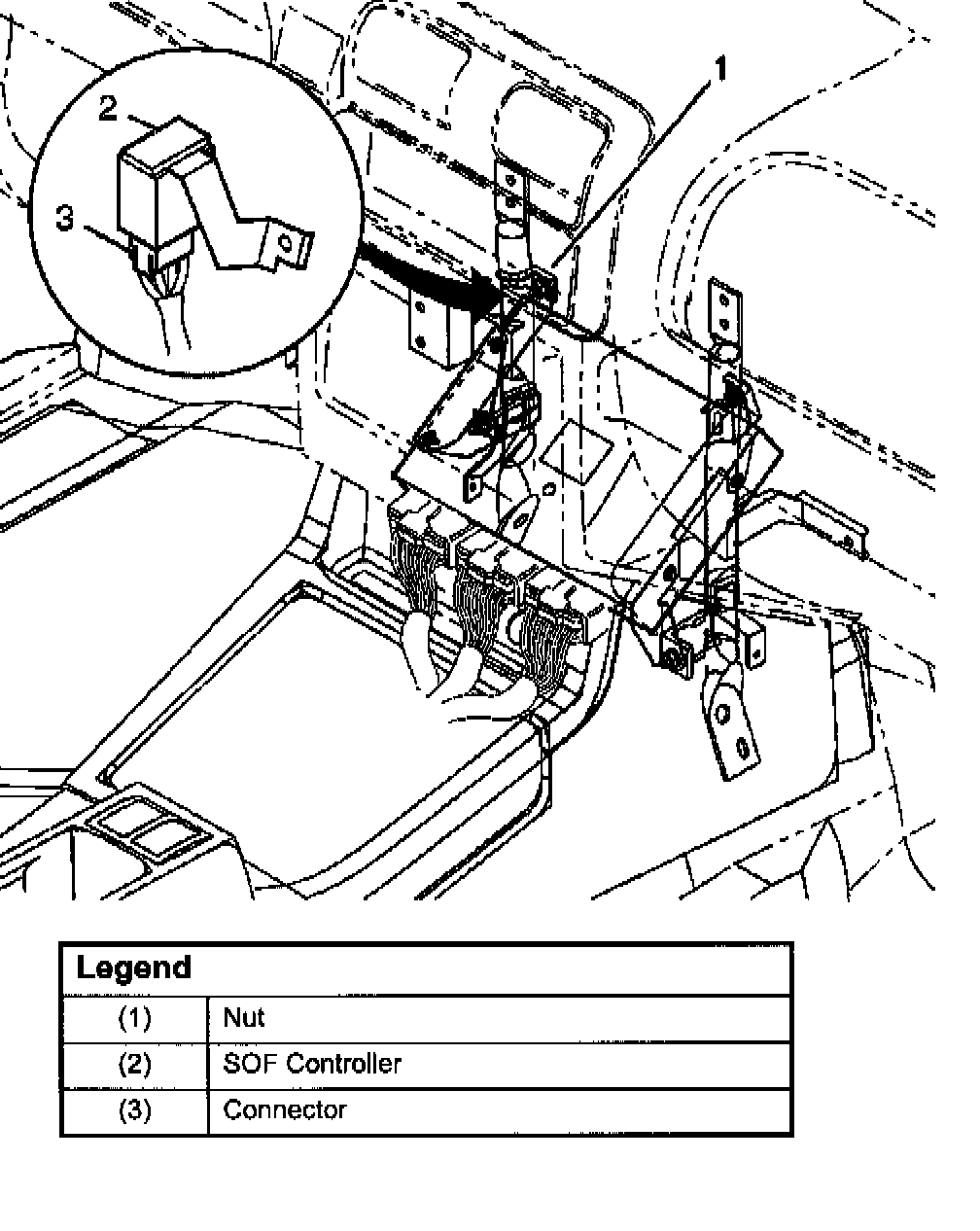

SHIFT ON THE FLY CONTROLLER AND ASSOCIATED PARTS





REMOVAL
1. Disconnect the battery ground cable.
2. Remove the front console assembly.
3. Disconnect the connector from the controller.
4. Remove the nut.
5. Remove the controller.

INSTALLATION
1. To install, follow the removal steps in the reverse order, noting the following points.
Torque: Nut (1) 8 Nm (69 inch lbs.)
