Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Alarm & Relay Control Unit | Above right kick panel. |
| Cruise Control Unit | Under rear of center console. |
| Electronic Brake Control Module (EBCM) | On right rear corner of engine compartment. |

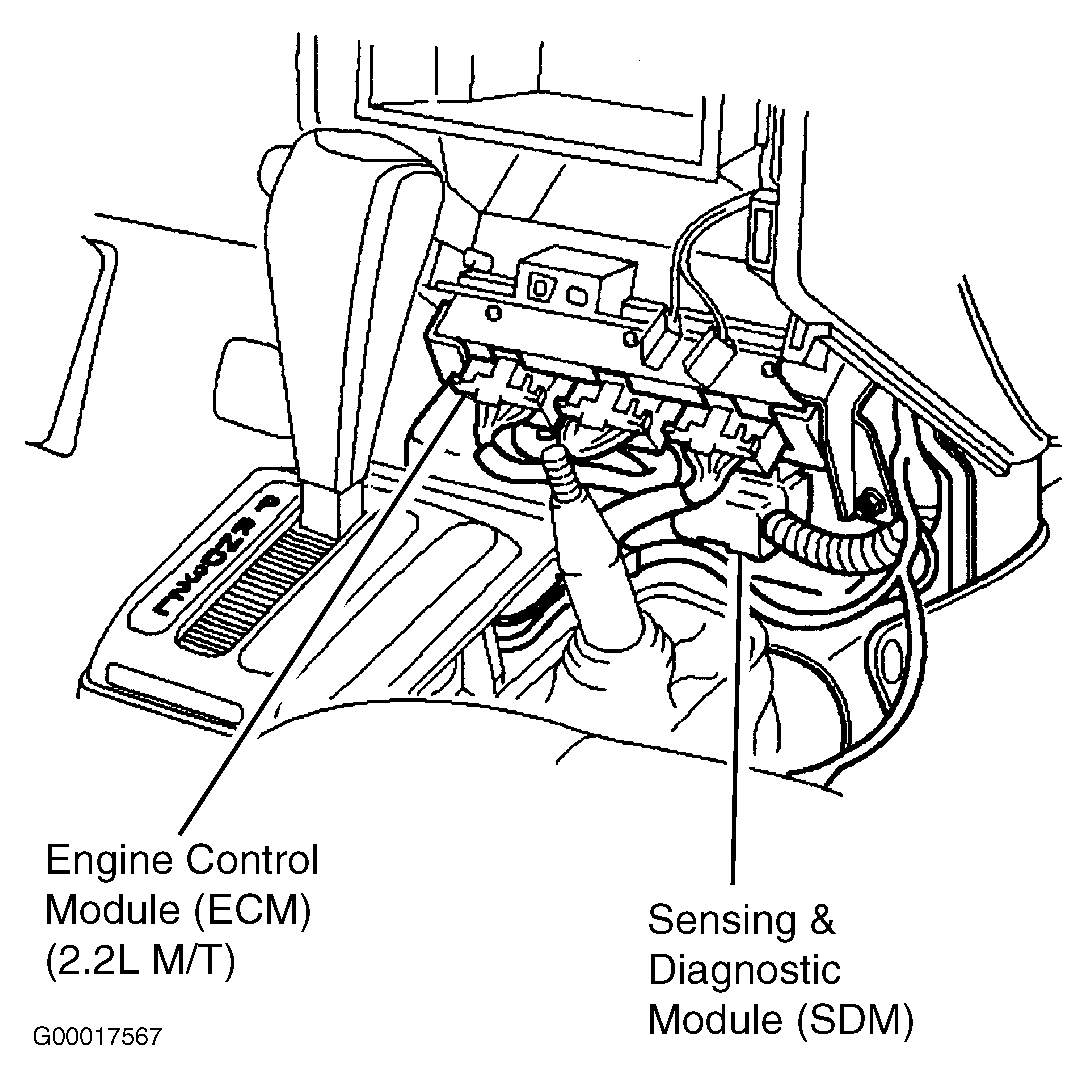

| Engine Control Module (ECM) (2.2L M/T) | Below center of dash. See Figure. |
| Engine Control Module (ECM) (3.2L M/T) | Left rear corner of engine compartment, mounted on inner fender. See Figure |
| Ignition Control Module (ICM) (2.2L) | On right rear of engine. |
| Keyless Entry & Security Control Unit | Above right kick panel. |
| Moon Roof Control Unit | Center front of roof. |
| Powertrain Control Module (PCM) (3.2L) | Left rear corner of engine compartment, mounted on inner fender. See Figure |
| Sensing & Diagnostic Module (SDM) | Below center of dash. See Figure. |
| Shift-On-The-Fly Controller | Right side of driver's footwell, behind center console, left of radio. |
| 4WD Control Unit | Under center console. |
