Ignition Coil

IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application Primary Secondary
Amigo & Rodeo
2.2L (1) (1)
3.2L (2) (2)
Hombre (2) 5000-8000
Trooper & VehiCROSS (2) (2)
(1) Information is not available from manufacturer.
(2) Use DVOM to measure resistance between terminals No. 1-2, 1-3 and 2-3. See Fig 1. If resistance reading between any two terminals is 0 ohms (shorted) or infinity (open), replace ignition coil assembly.

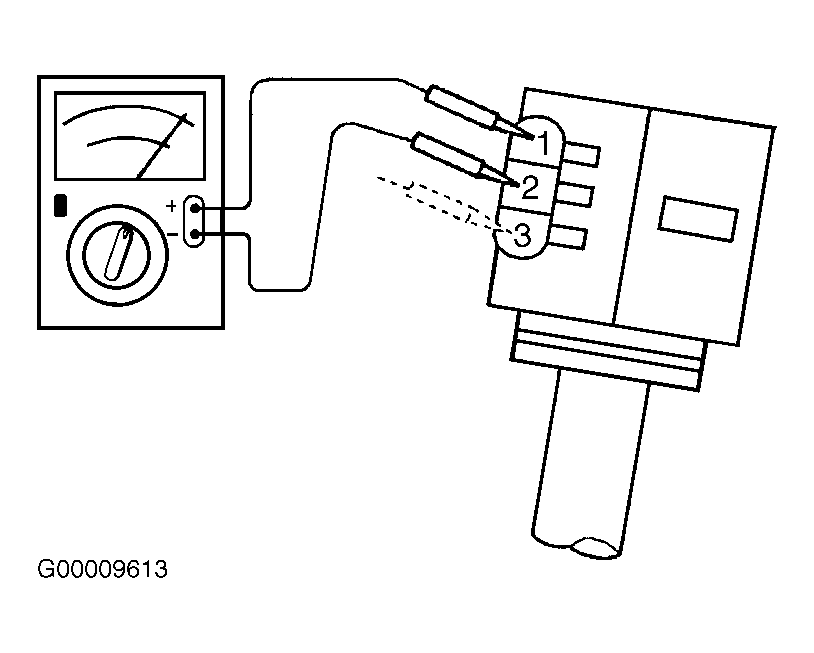

Fig 1: Identifying Ignition Coil Terminals - V6 (Except Hombre)
G00009613Courtesy of ISUZU MOTOR CO.
