DTC P0401: EGR System Insufficient Flow: Notes

NOTE: Use illustration for circuit reference. See Fig 1.

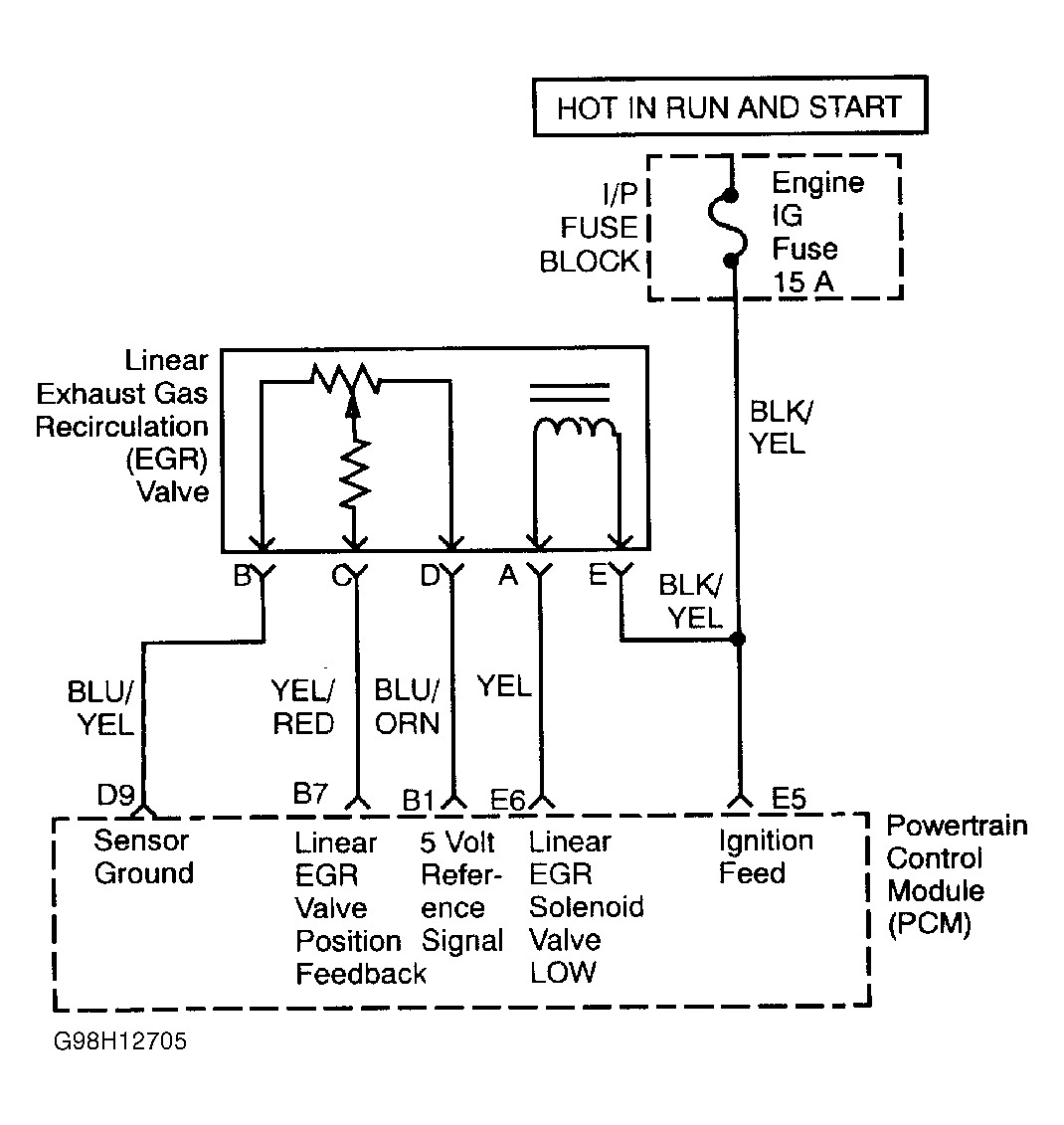

Fig 1: Identifying Linear EGR Valve Circuit
G98H12705Courtesy of ISUZU MOTOR CO.
