Electrical Diagrams
Cruise Control (1 Of 4):

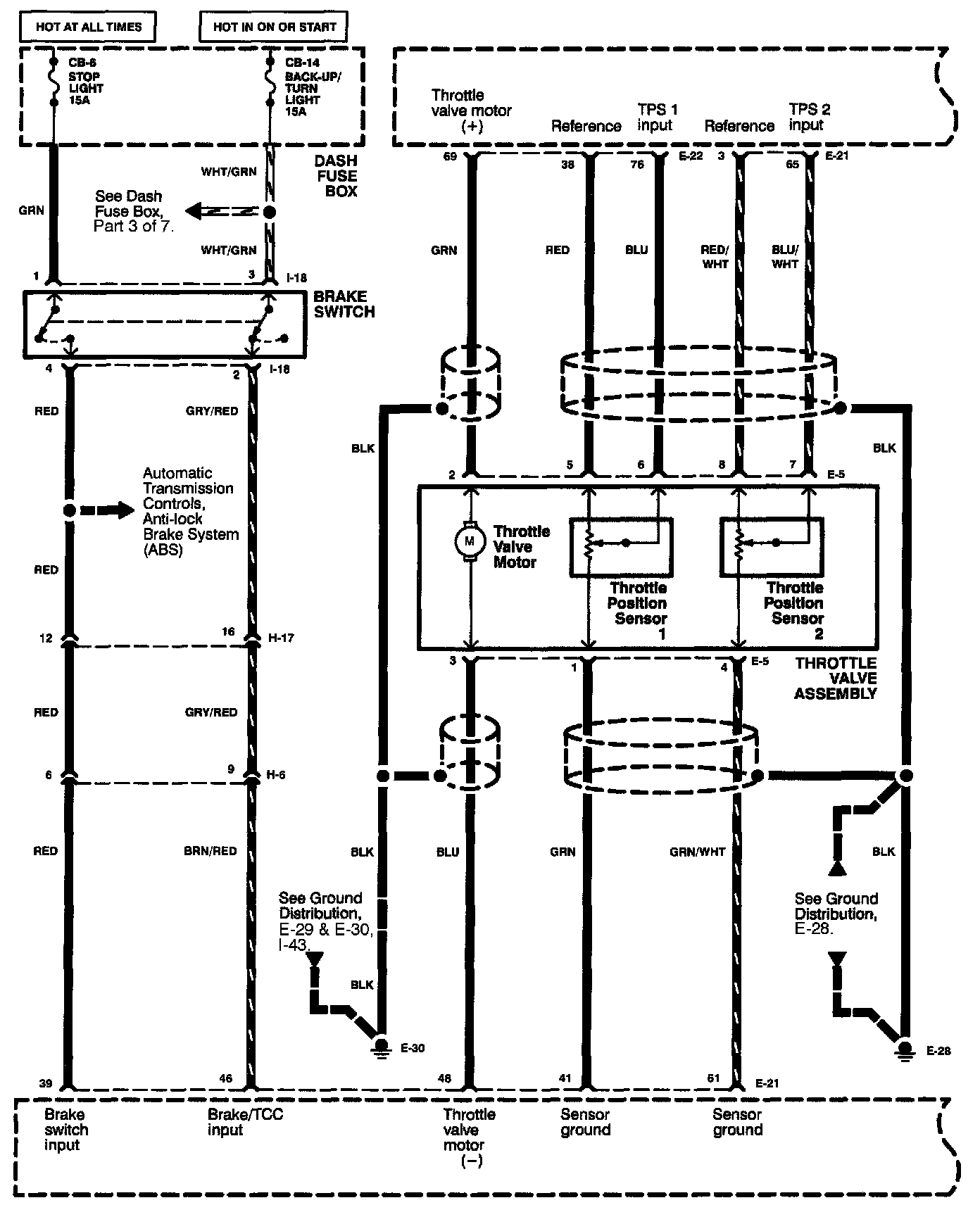

Cruise Control (2 Of 4):

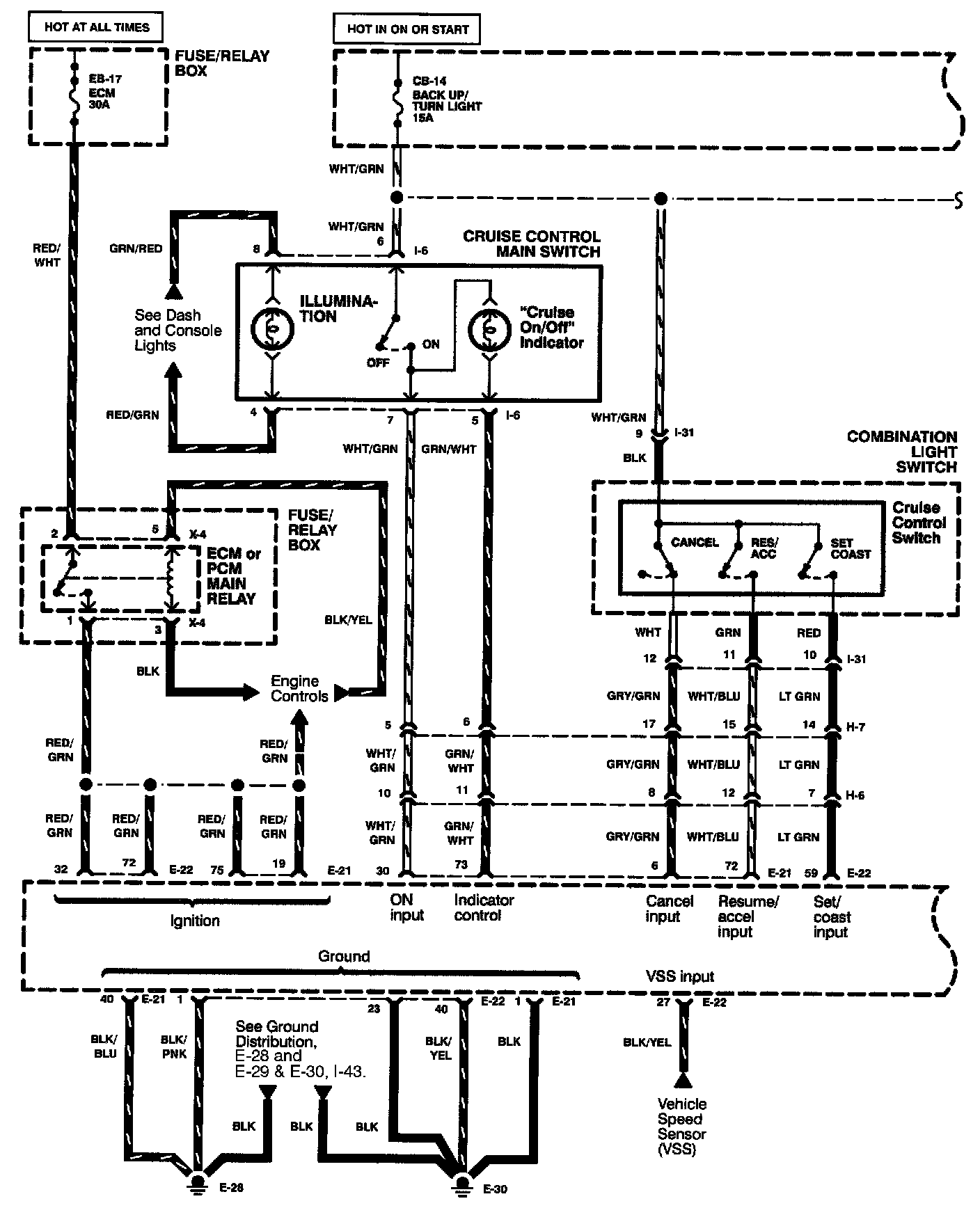

Cruise Control (3 Of 4):

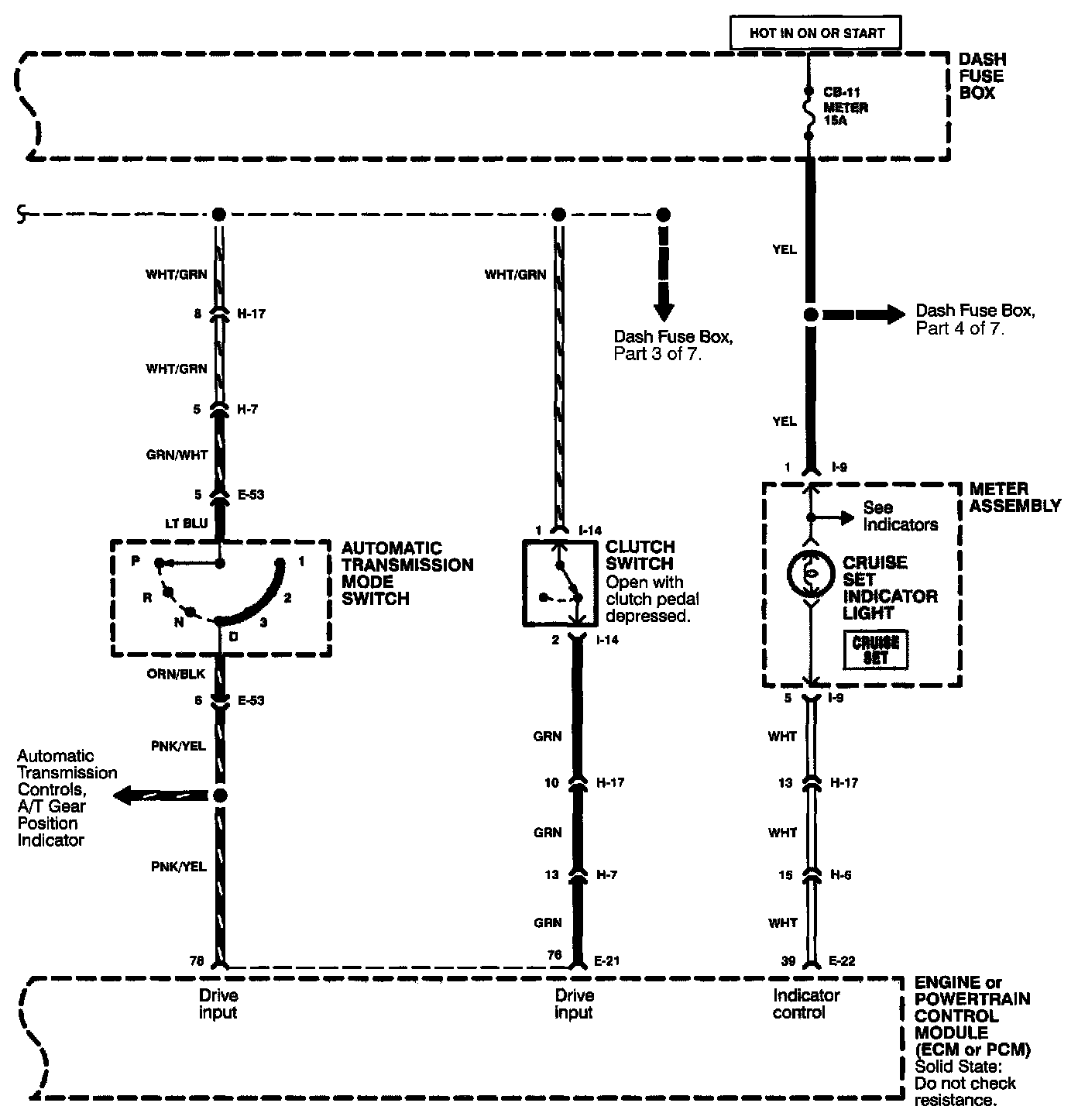

Cruise Control (4 Of 4):
