Control Panel Illumination Bulbs

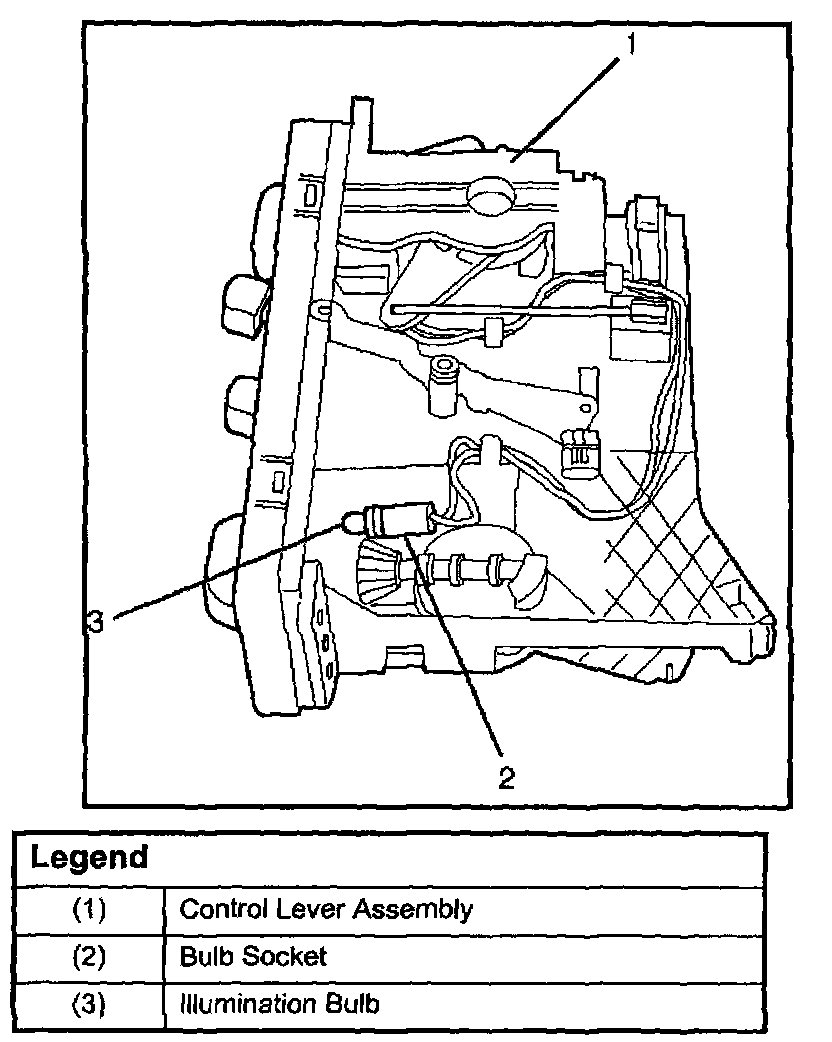

Control Panel Illumination Bulb And Associated Parts:

Control Panel Illumination Bulb

Removal
1. Disconnect the battery ground cable.
2. Remove control lever assembly.
3. Pull out the bulb socket from the panel by turning it counterclockwise.
4. Pull the illumination bulb from the socket.

Installation
To install, follow the removal steps in the reverse order.
