Connector Locations

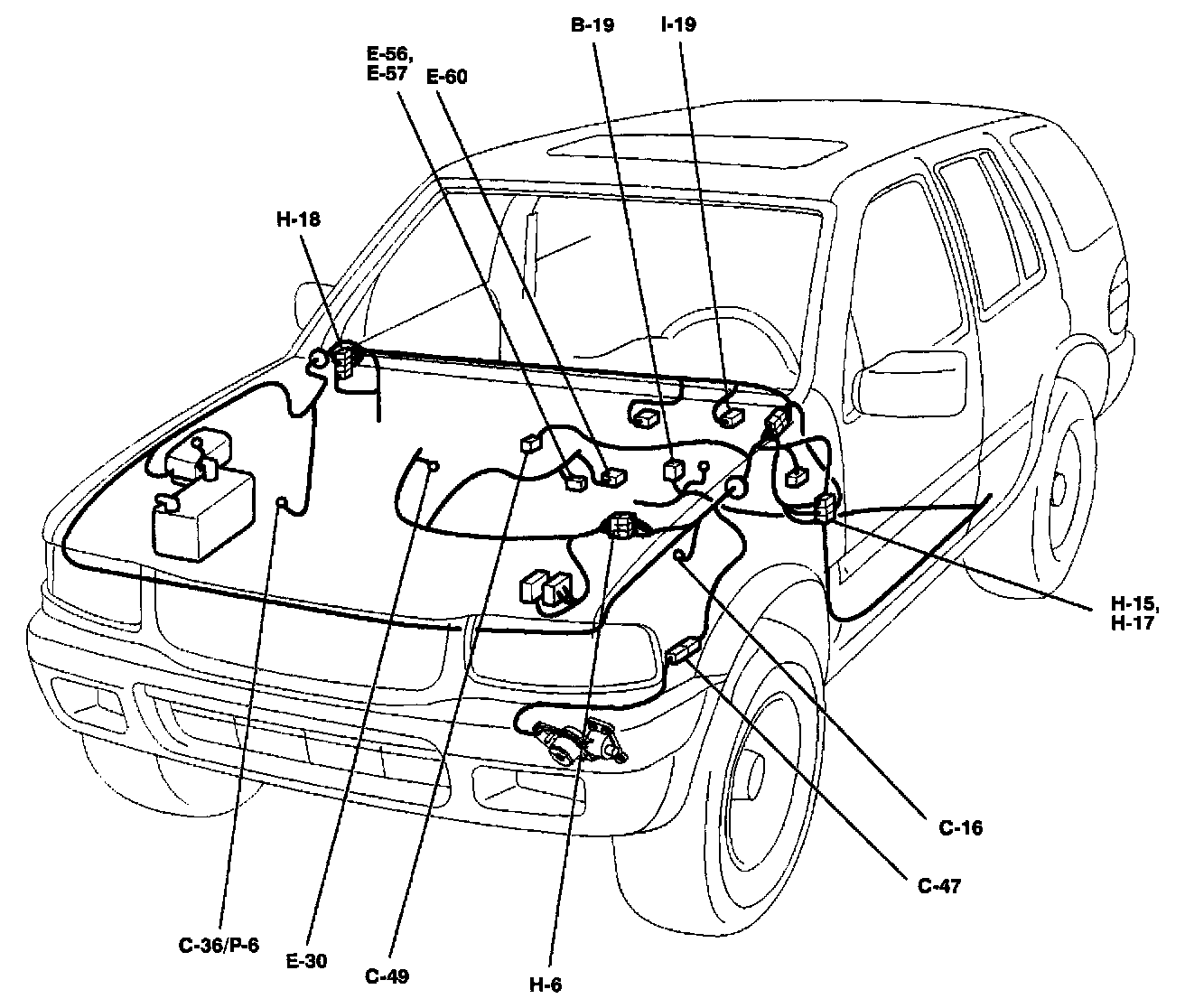

Connector & Harness Routing 2.2L:

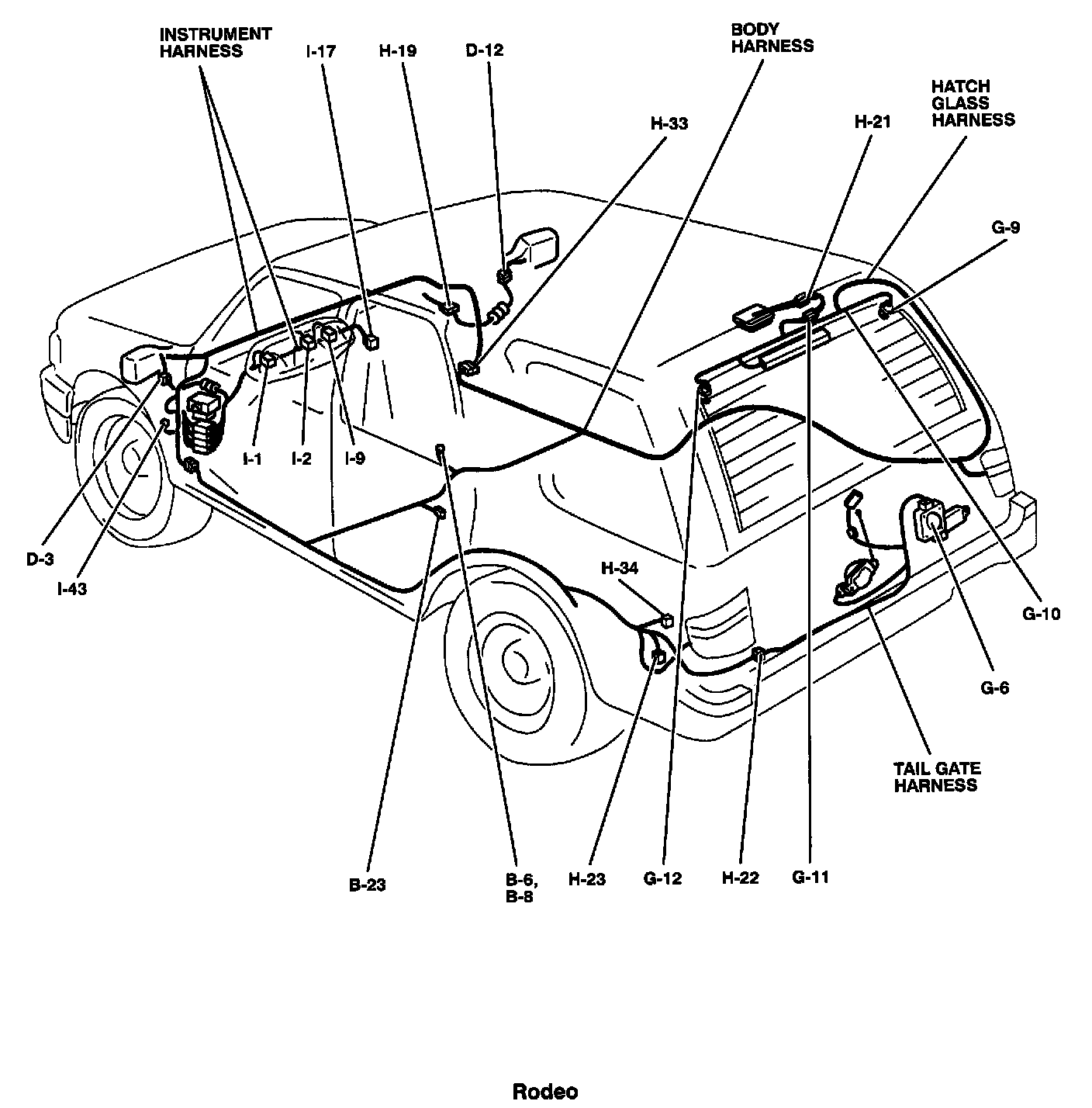

Rodeo:

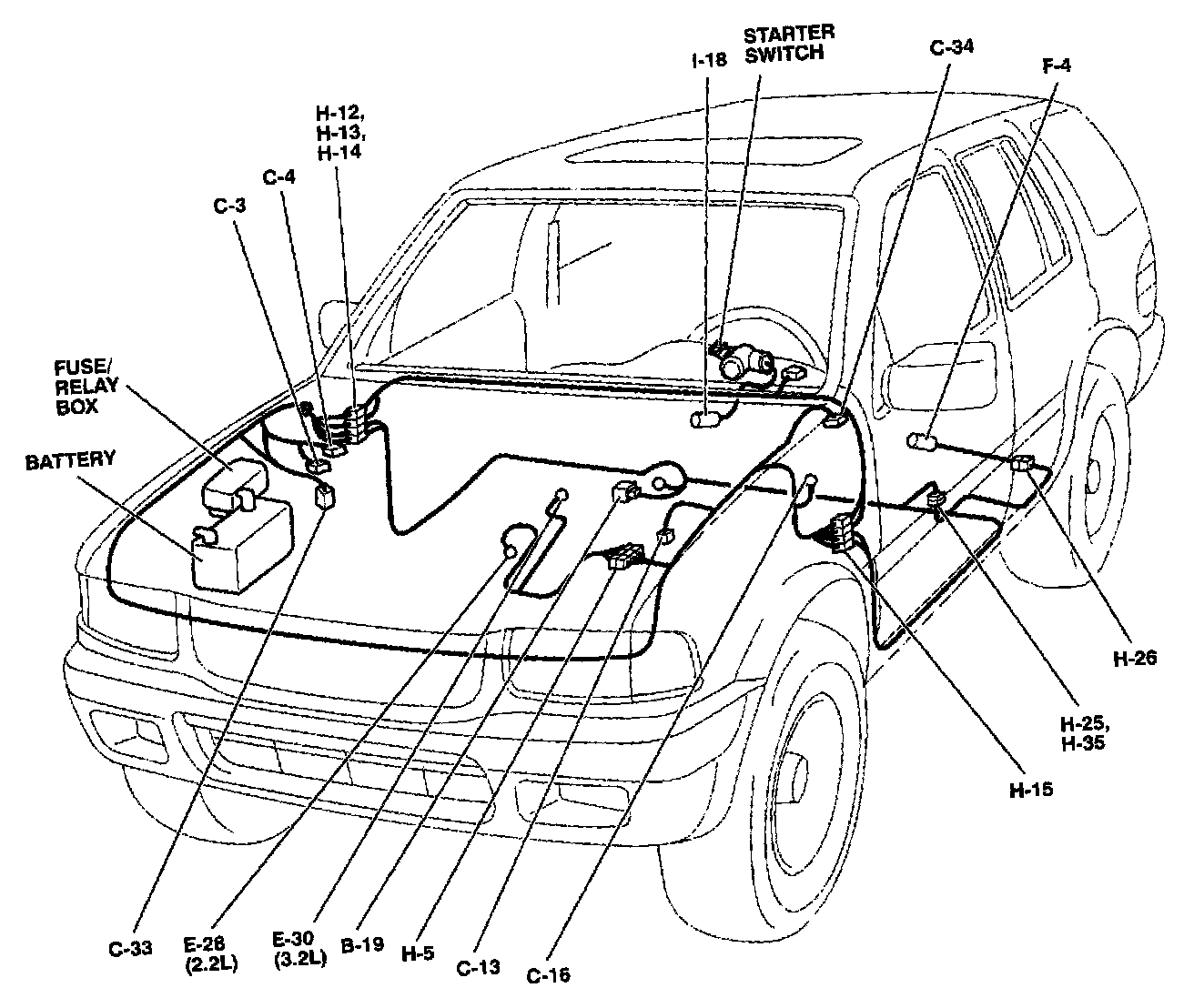

Connector & Harness Routing:

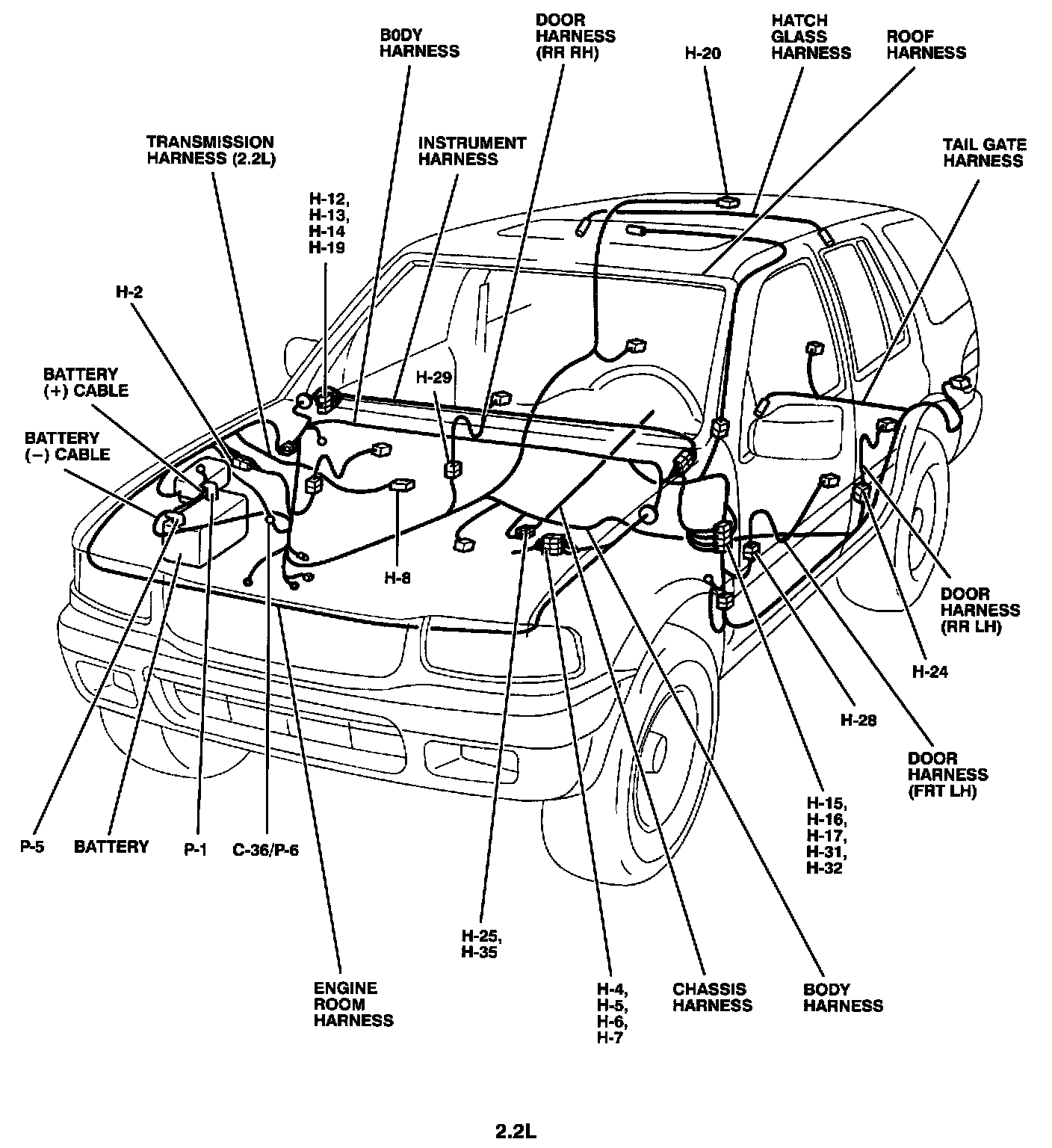

Connector & Harness Routing:
