Air Induction System

Air Induction System

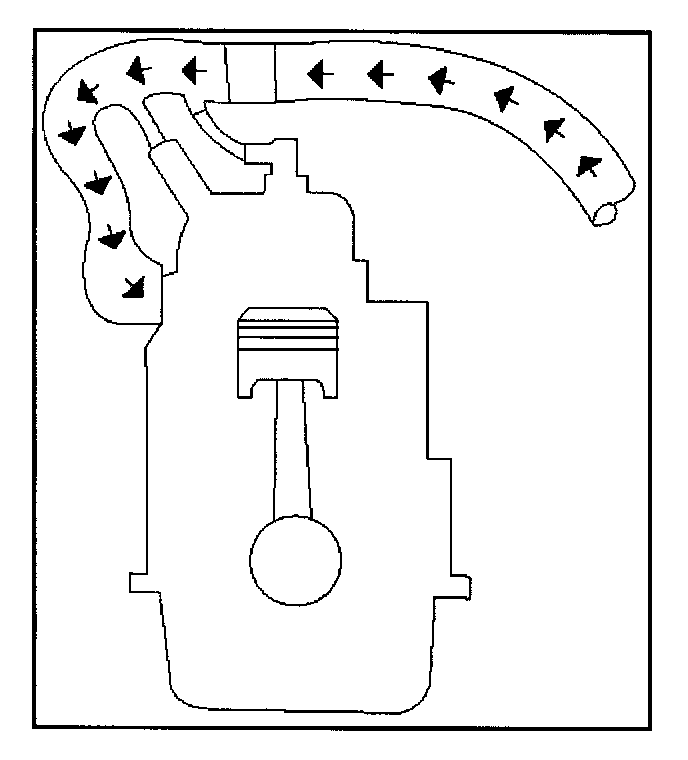

The air induction system filters contaminants from the outside air, and directs the progress of the air as it is drawn into the engine. A remote-mounted air cleaner prevents dirt and debris in the air from entering the engine. The air duct assembly routes filtered air to the throttle body. Air enters the engine by the following steps:
Through the throttle body.
- In to the intake manifold.
- Through the cylinder head intake ports.
- In to the cylinders.
