Engine Components

Engine Component Locator View:

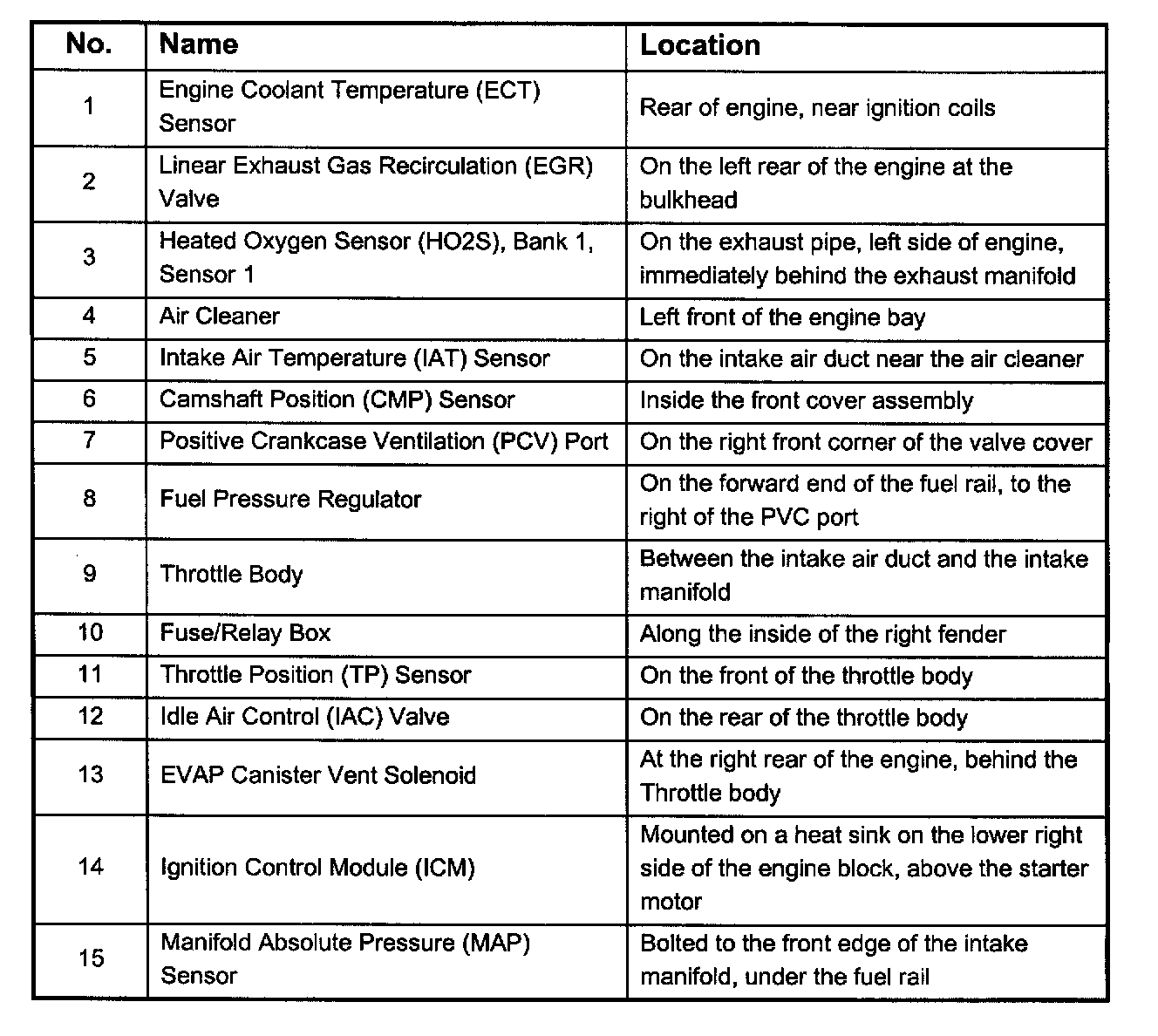

Engine Component Locator Table:



Relay/Fuse Box Locations:

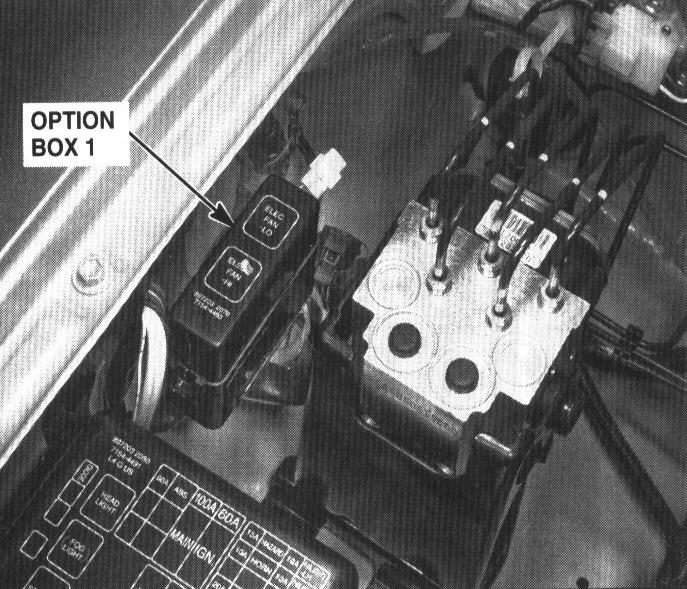

127 - Right Rear Of Engine Compartment (2.2L):



58 - Left Side Of Dash:
