Crankshaft Position Sensor - Flow Chart Revision

BULLETIN NUMBER:
IB01-04-S002

ISSUE DATE:
MARCH 2001

GROUP:
ELECTRICAL

1998-2001 RODEO and AMIGO/RODEO SPORT with 2.2L:
P0331 CRANKSHAFT POSITION SENSOR CIRCUIT
LOW INPUT CORRECTION

AFFECTED VEHICLES

All 1998 - 2001 Rodeo and Amigo/Rodeo Sport models with 2.2L 4-cylinder engine, setting P0337 code for crankshaft position sensor circuit low input.

SERVICE INFORMATION

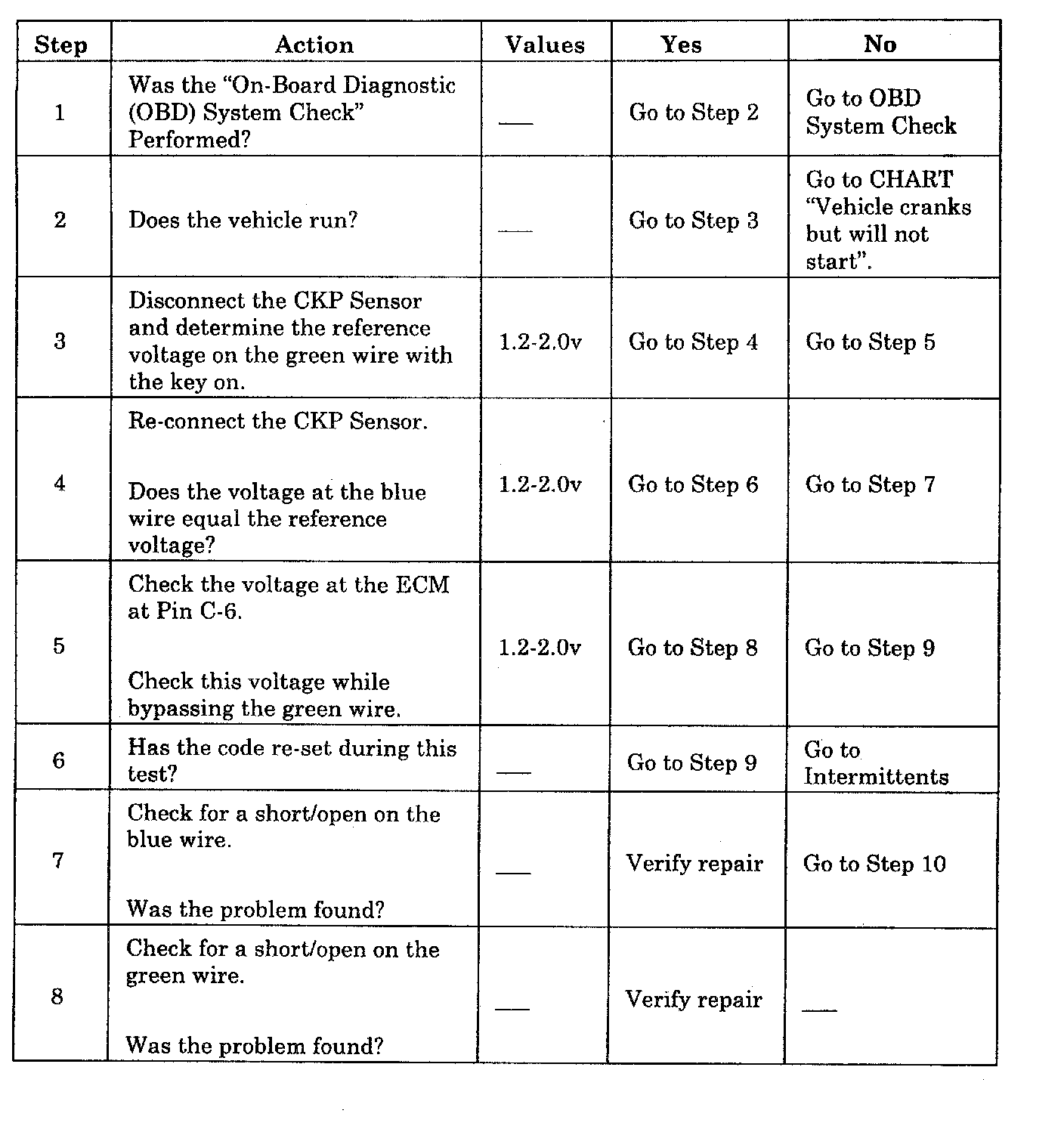

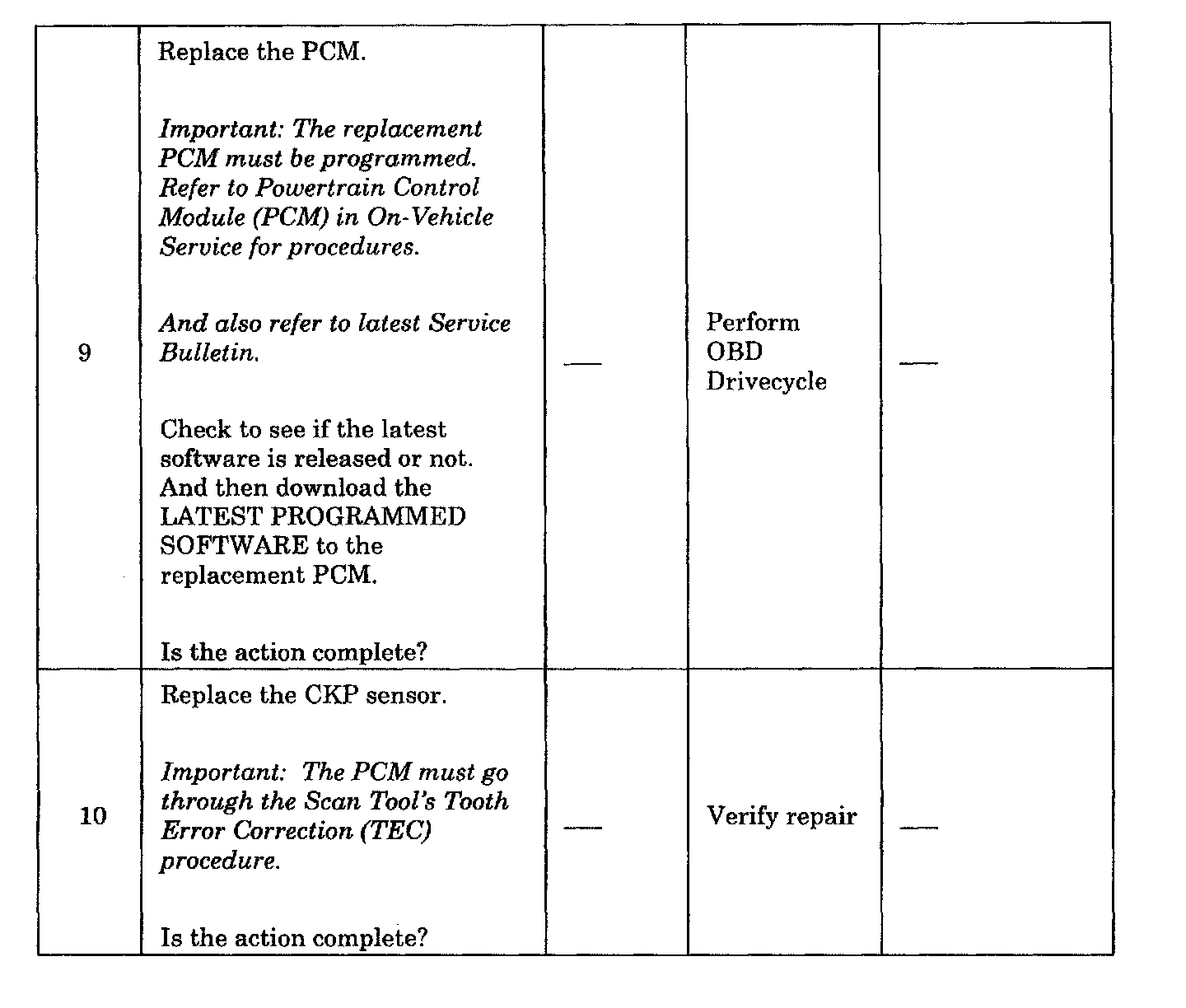

The diagnostic flow chart for the P0337 has been revised. Please use the diagnostic flow chart (shown) when diagnosing for P0337 trouble code.
