Engine Control Diagrams

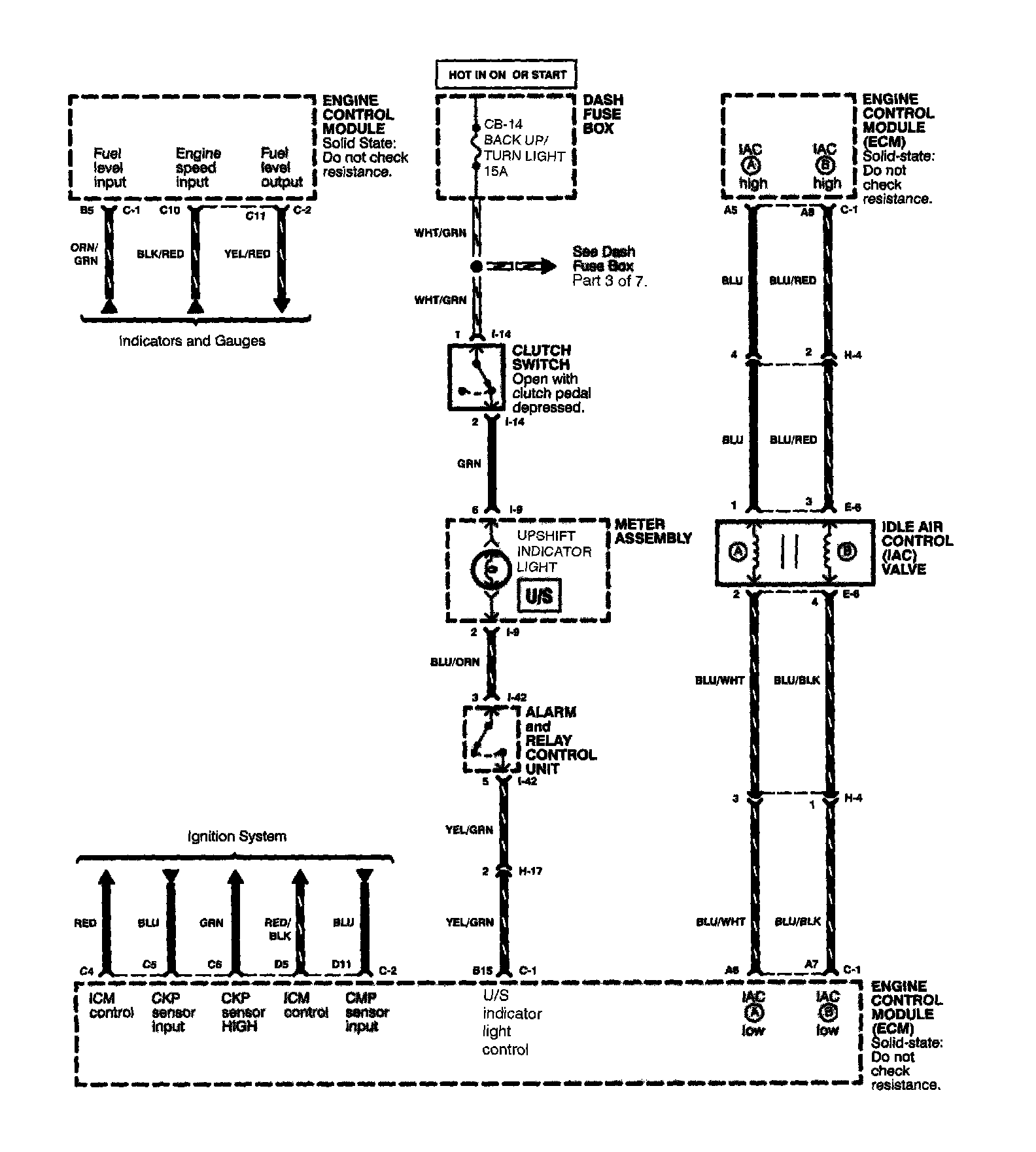

Engine Controls (1 Of 8):

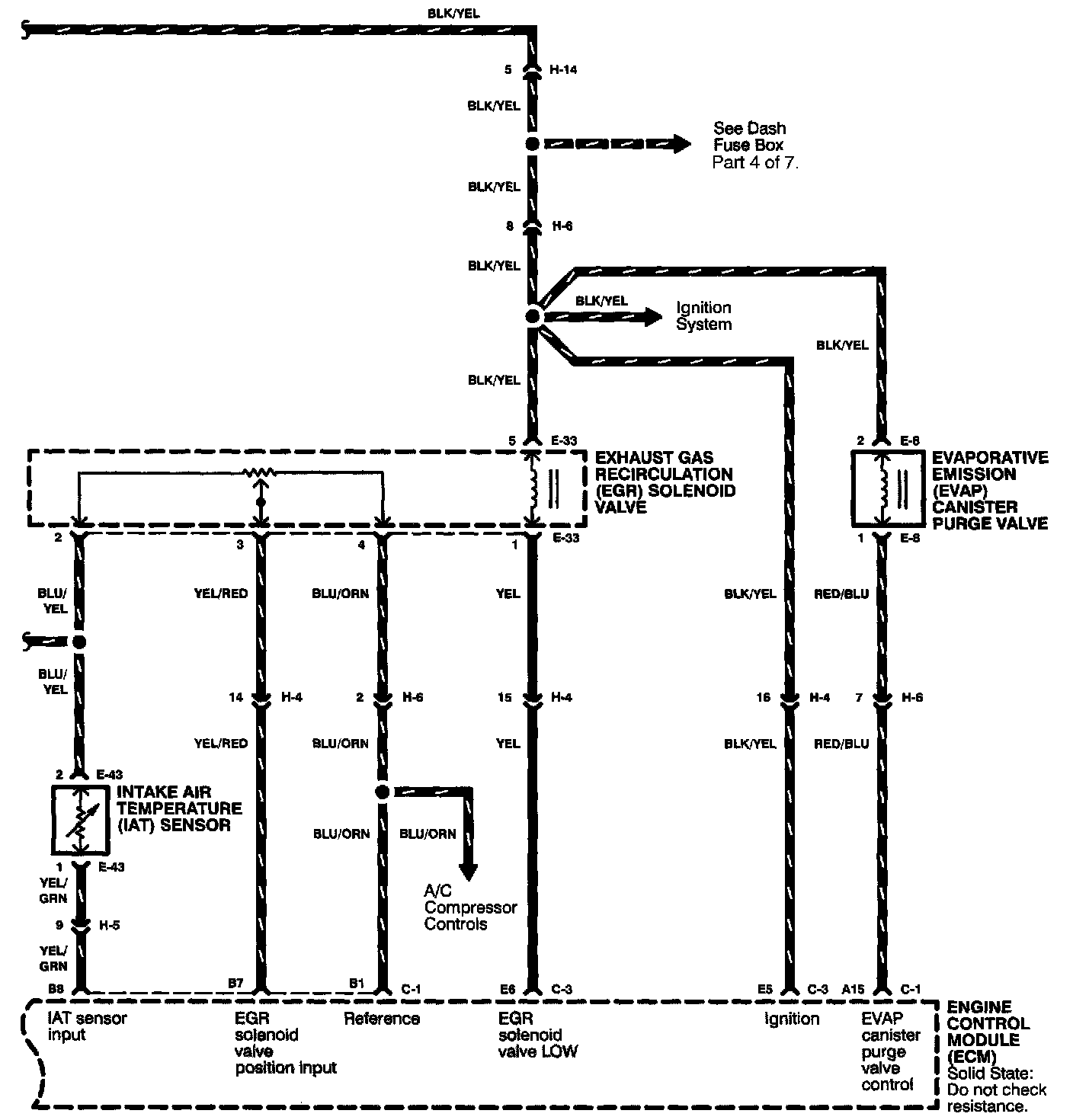

Engine Controls (2 Of 8):

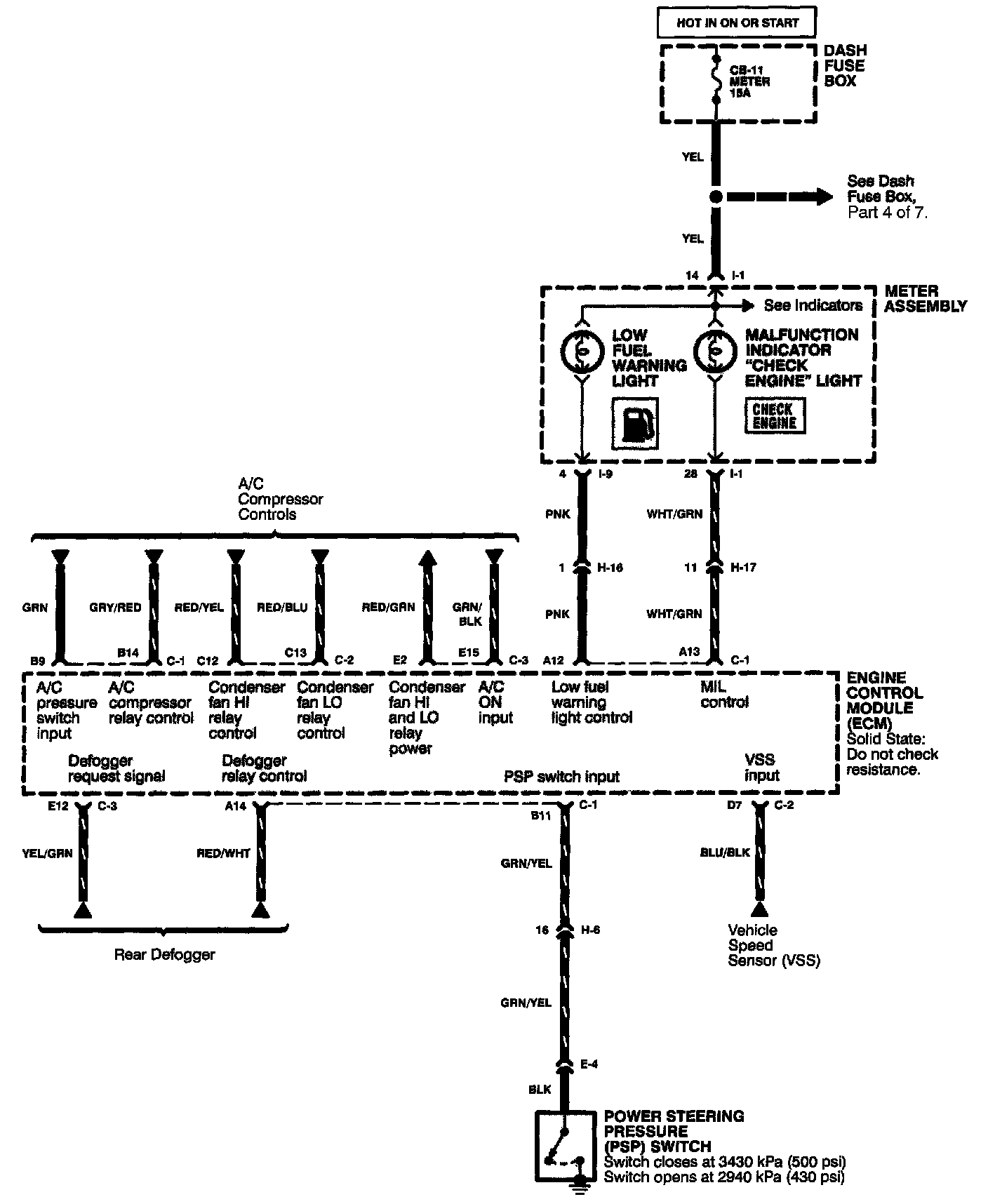

Engine Controls (3 Of 8):

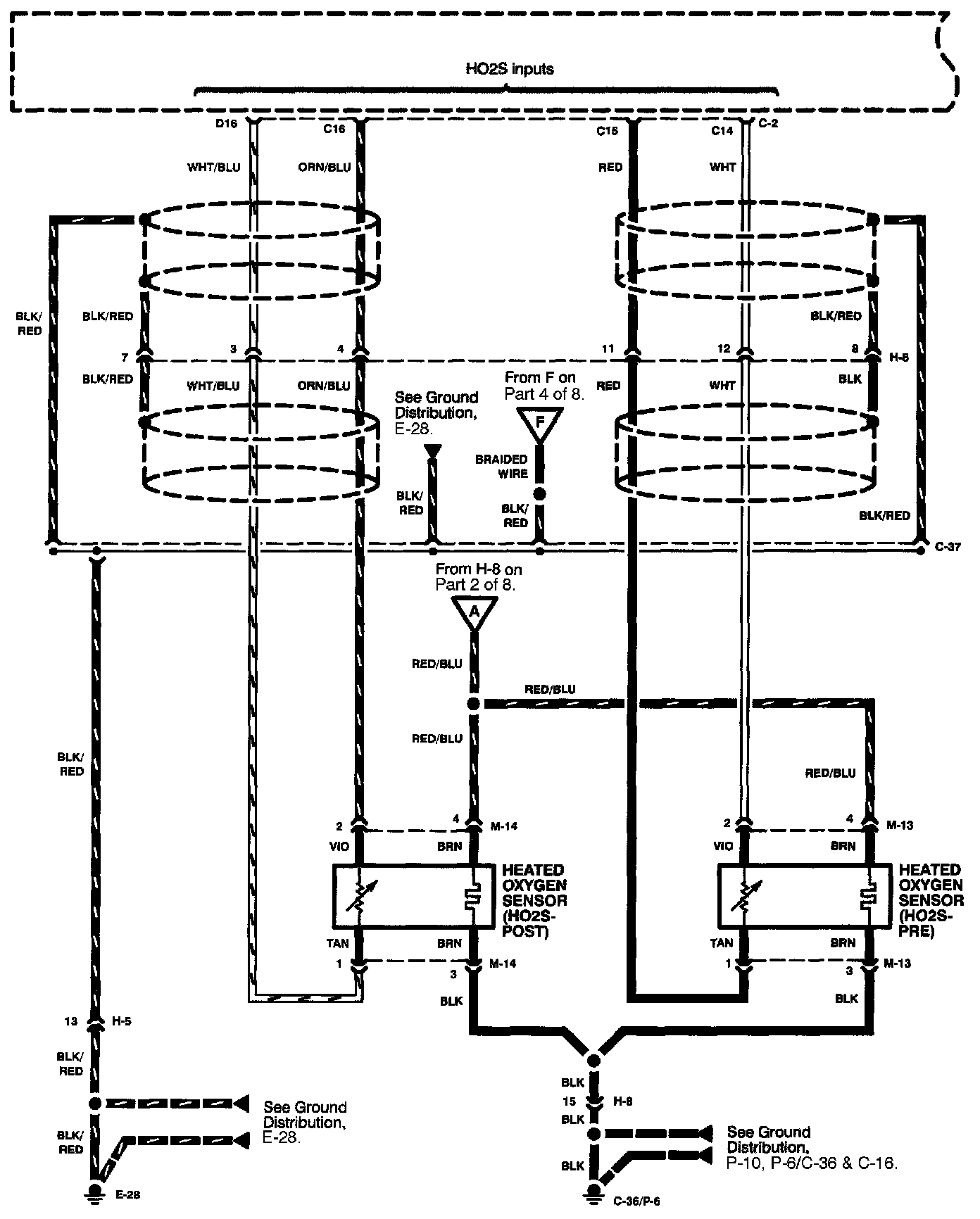

Engine Controls (4 Of 8):

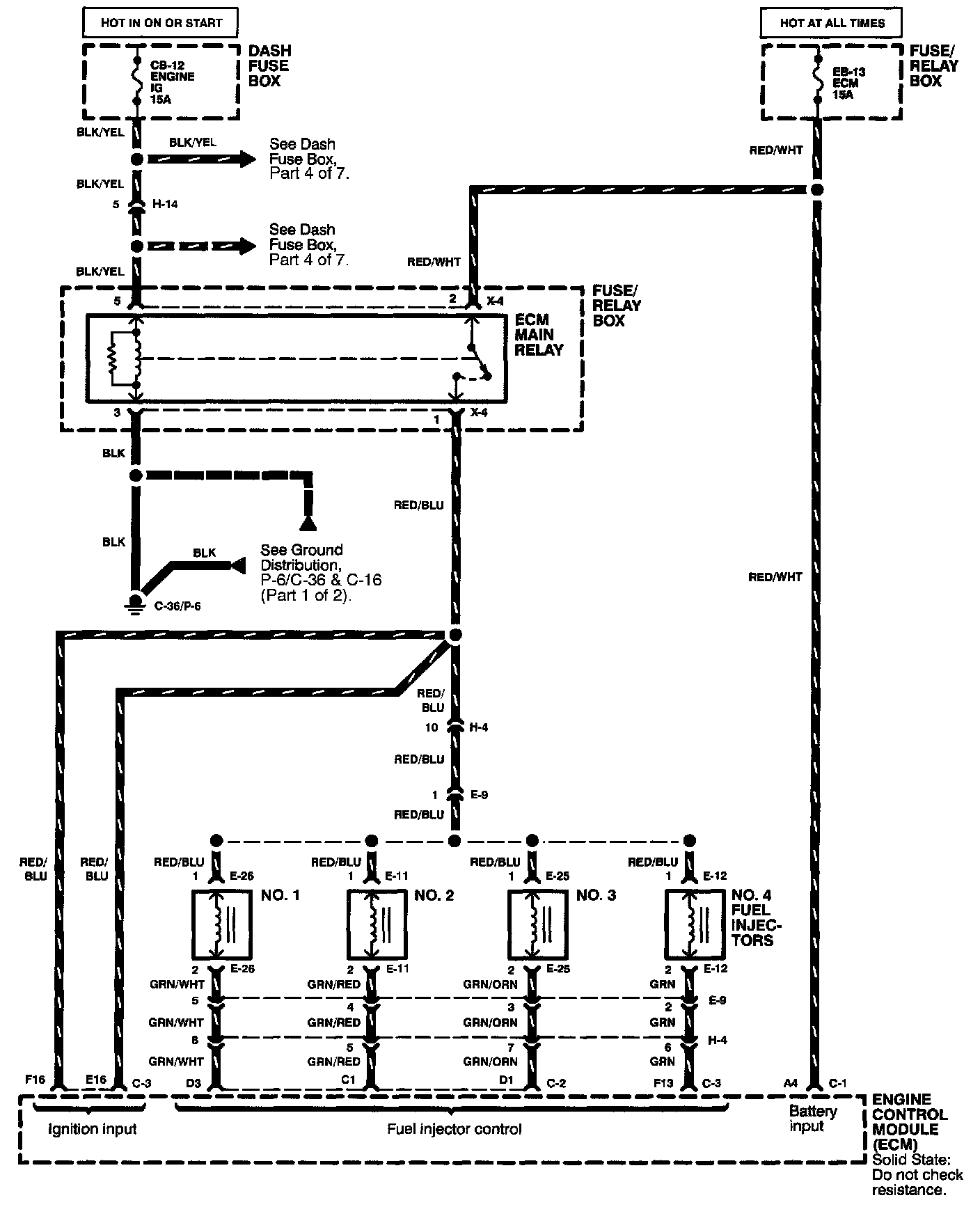

Engine Controls (5 Of 8):

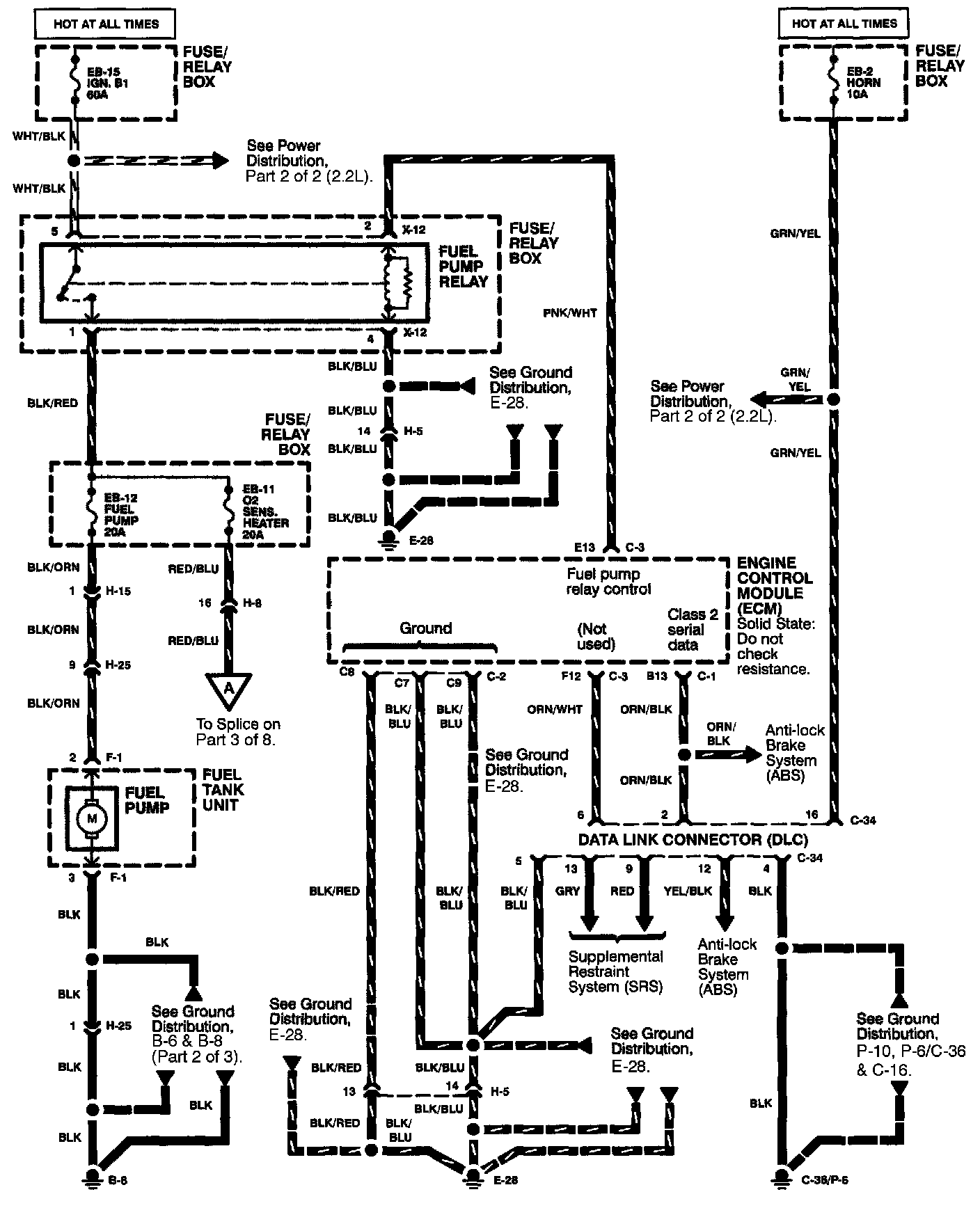

Engine Controls (6 Of 8):

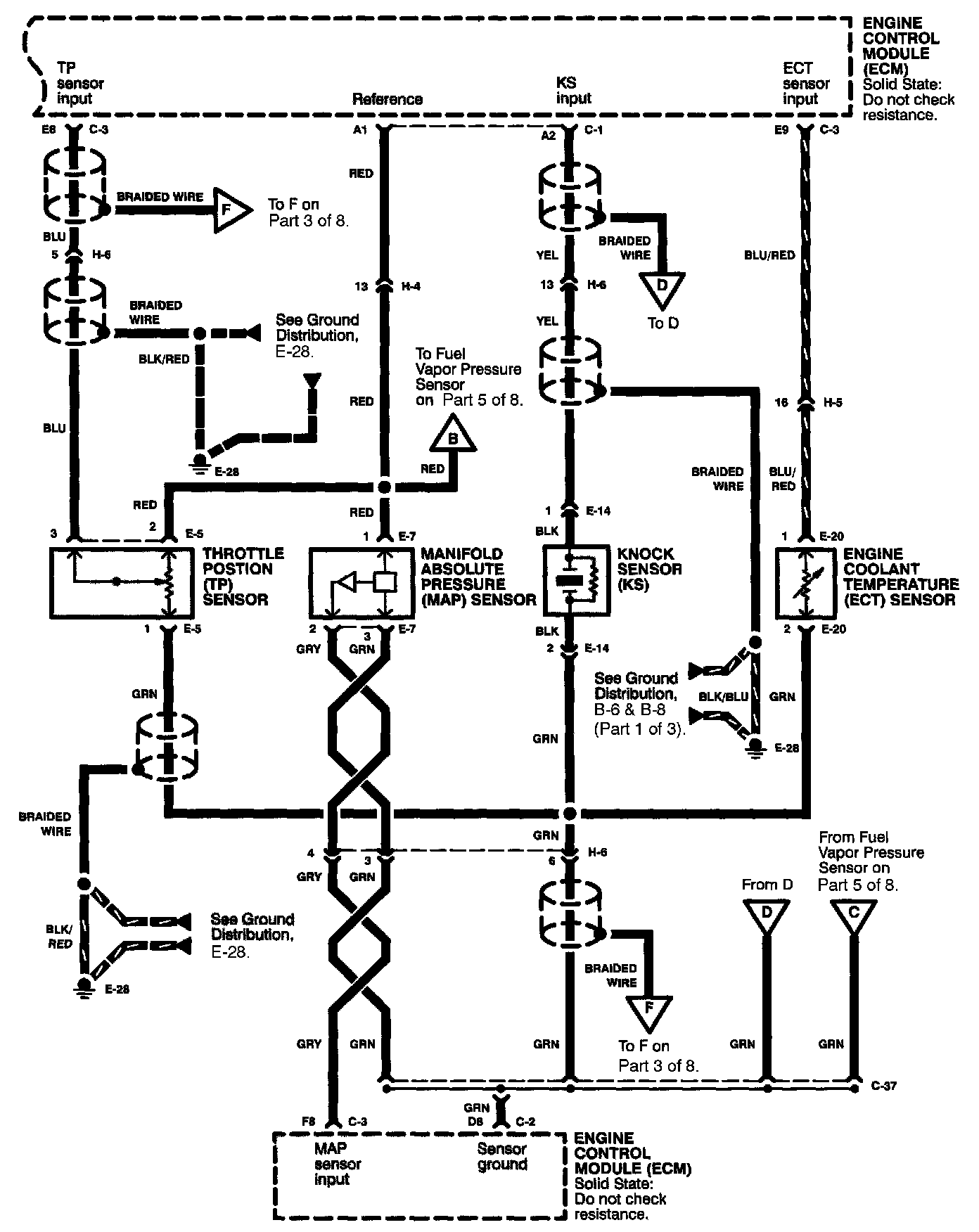

Engine Controls (7 Of 8):

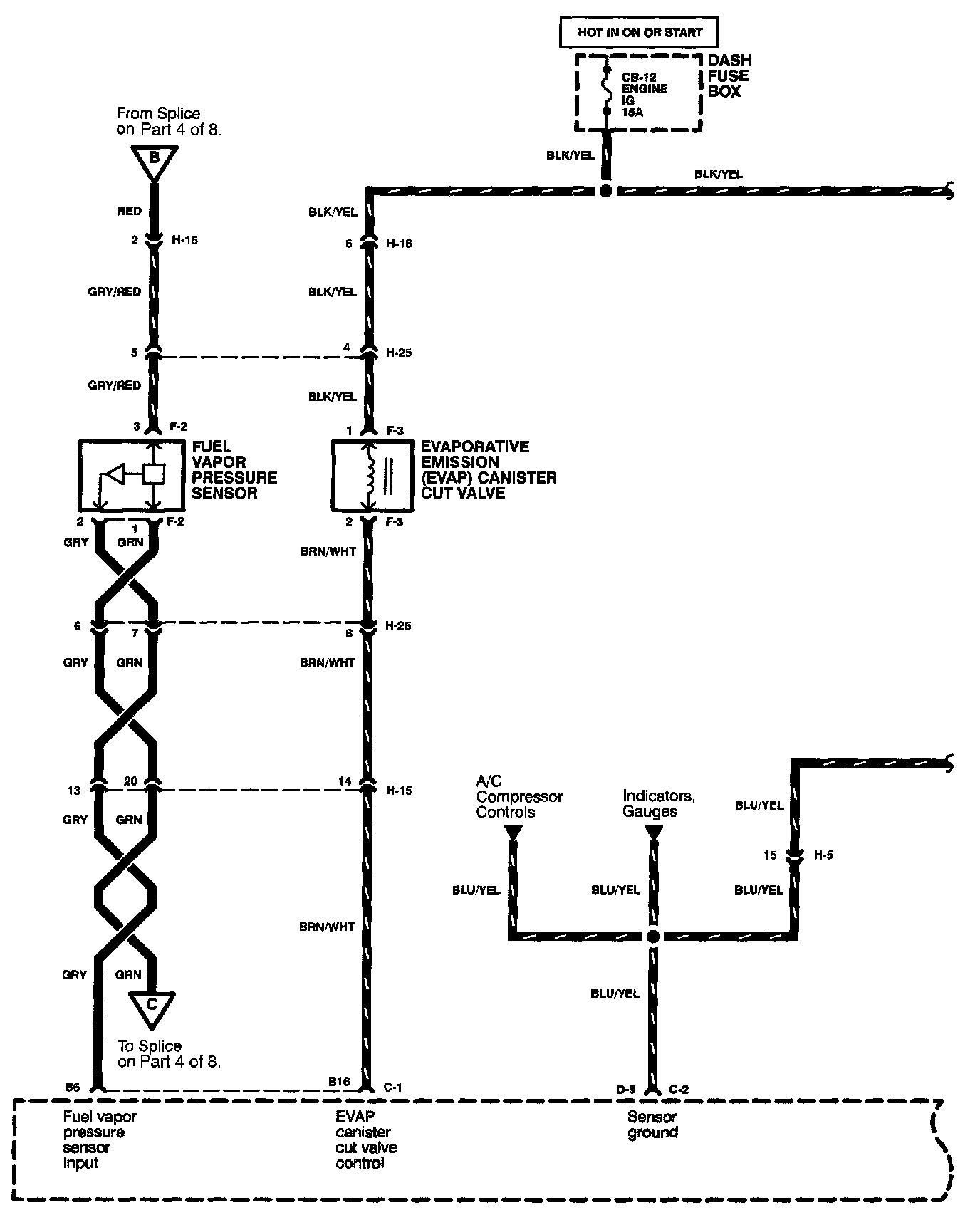

Engine Controls (8 Of 8):
