Ignition Cable: Description and Operation

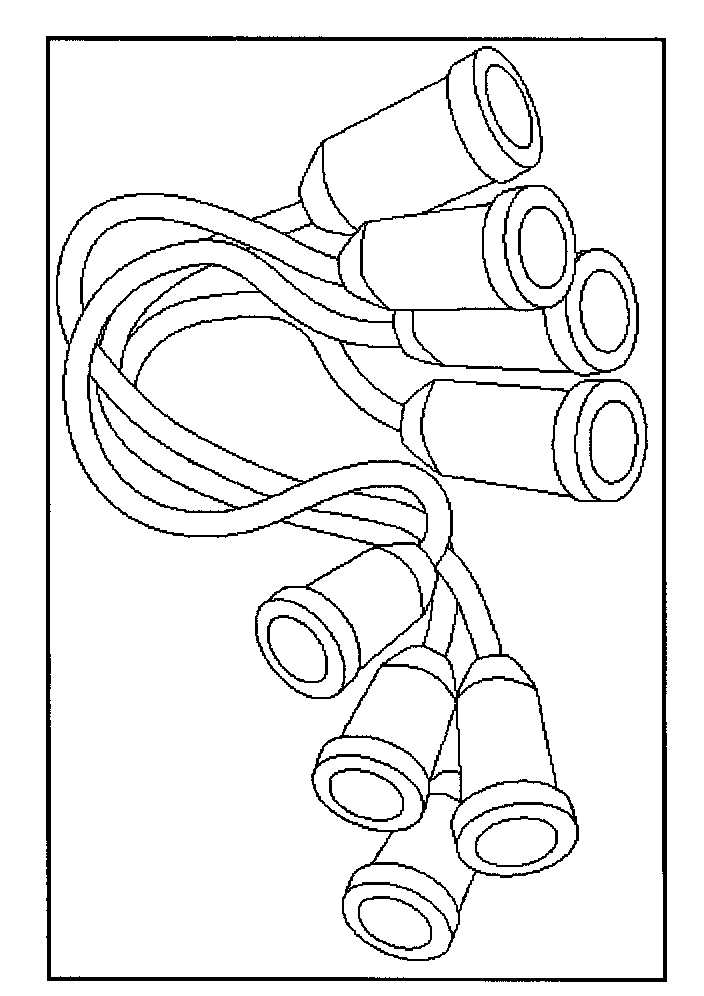

Spark Plug Cables

Spark Plug Cables:

The cable contains a synthetic conductor which is easily damaged. Never stretch or kink the cable.

Disconnect the cable from spark plug and the ignition coil.

The original equipment cables and the ignition coil are marked to show correct location of the cables. If spark plug cables or the ignition coil are replaced previously, before cables are removed from the ignition coil, mark the cables and the coil so they can be reconnected in the same position.
