Electrical Diagrams

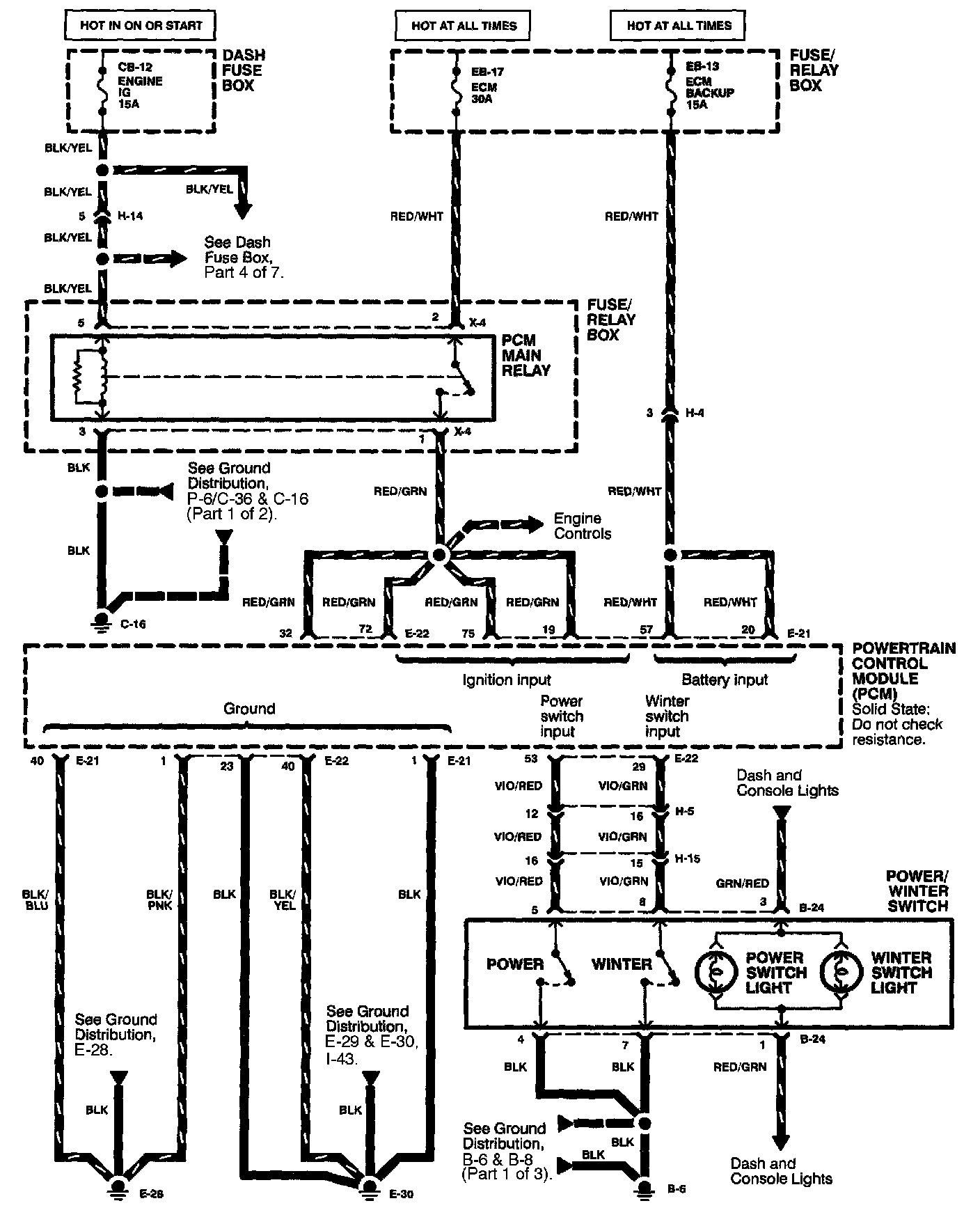

Automatic Transmission Controls (1 Of 4):

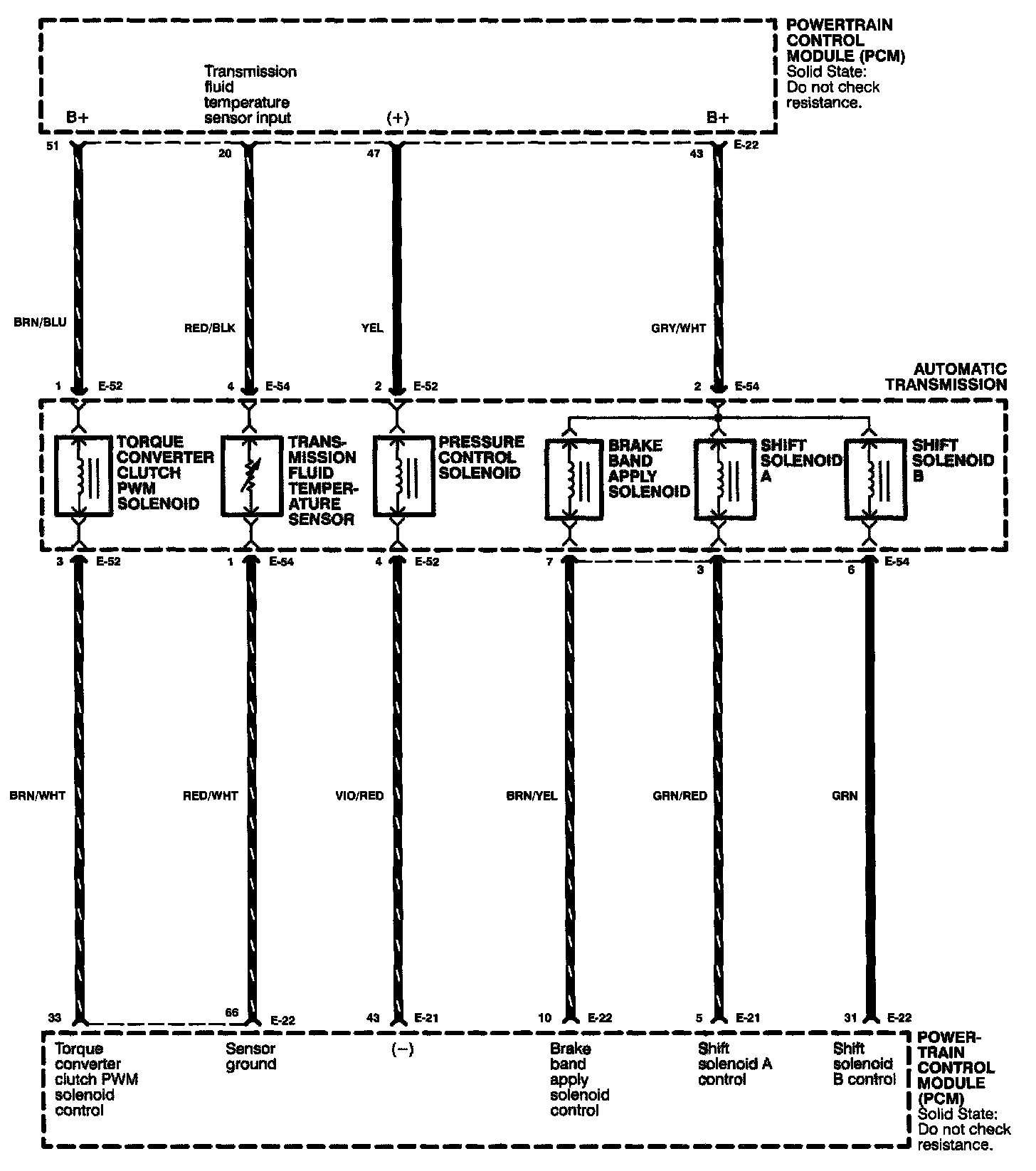

Automatic Transmission Controls (2 Of 4):

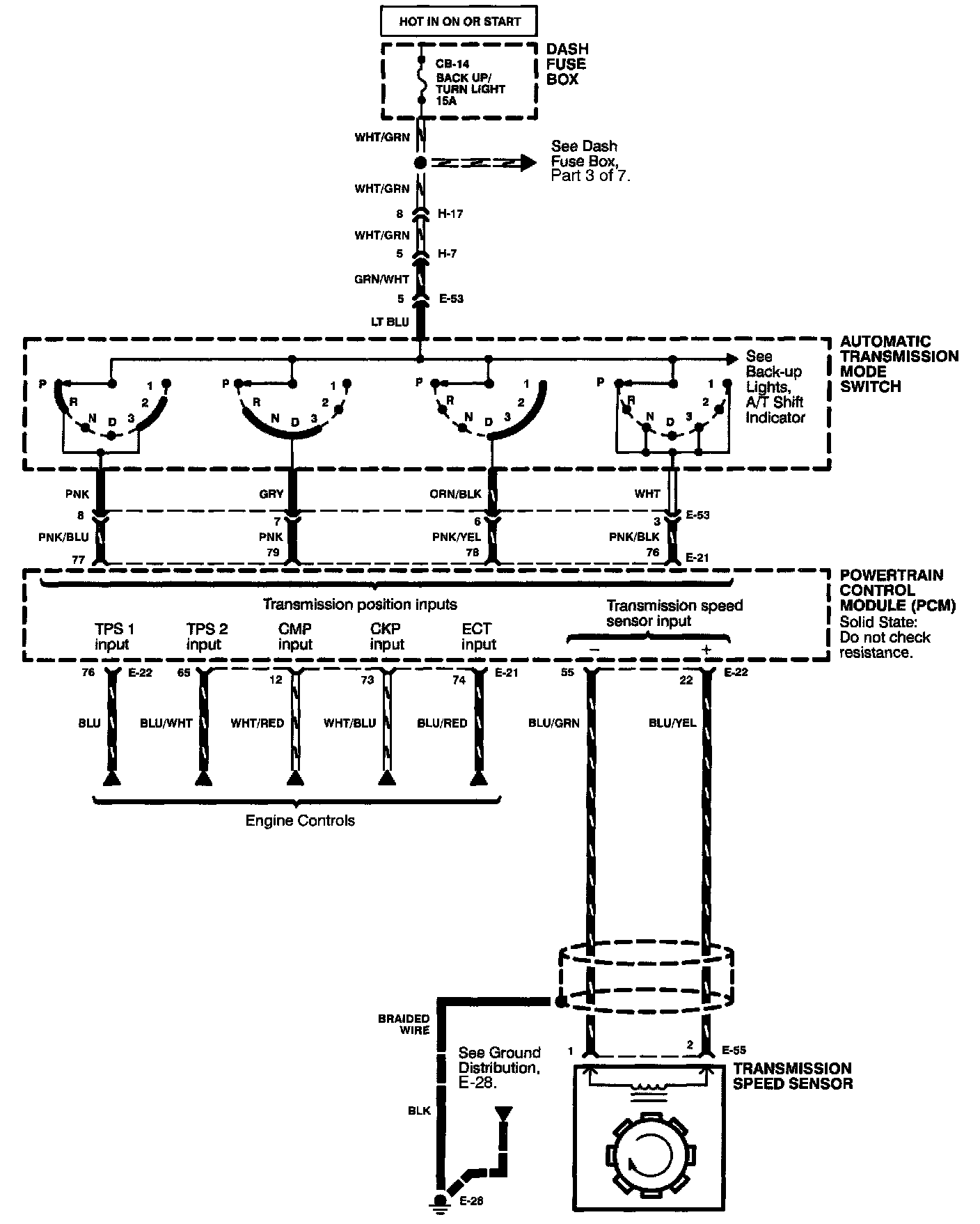

Automatic Transmission Controls (3 Of 4):

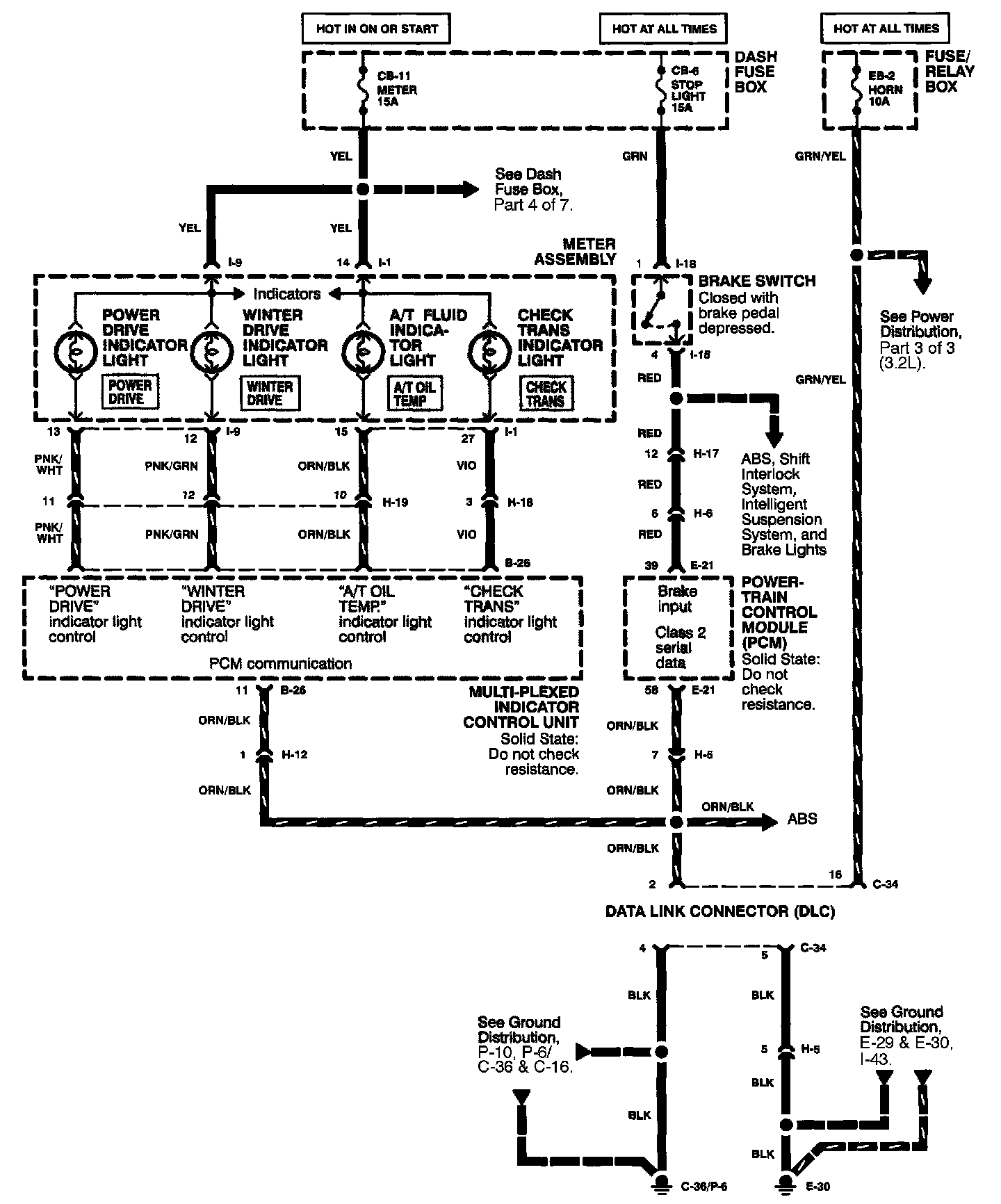

Automatic Transmission Controls (4 Of 4):
