Cruise Control Main Switch

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the front console assembly (1). Refer to Instrument Panel, Gauges and Warning Indicators.
3. Remove the lower cluster assembly (2). Refer to Instrument Panel, Gauges and Warning Indicators.
4. Remove the instrument panel driver lower cover assembly (3). Refer to Instrument Panel, Gauges and Warning Indicators.




5. Remove the instrument panel cluster assembly (5). Refer to Instrument Panel, Gauges and Warning Indicators.

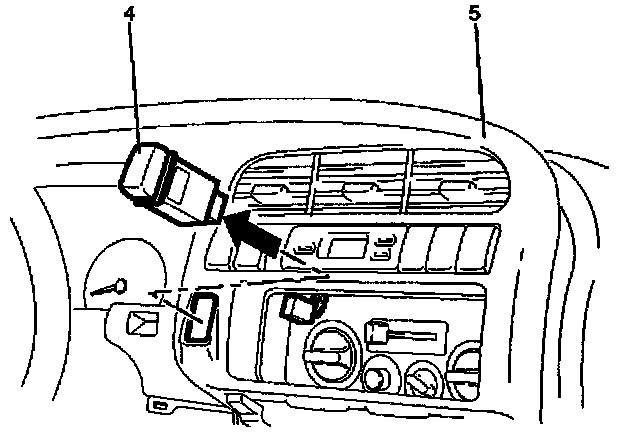

6. Disconnect the and push the lock from the side of the instrument panel cluster assembly to remove the cruise control main switch (4).

INSTALLATION
To install, follow the removal steps in the reverse order, noting the following point.
1. Push in the switch with your fingers until the switch is locked securely.
